点击放大查看

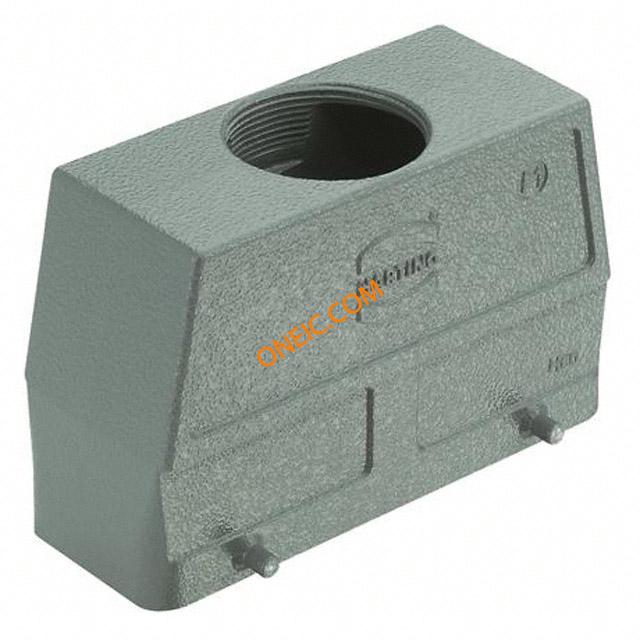

19300240427

制造商	HARTING Technology Group
描述	Connector Accessories 9 POS Hood Top Entry Metal Heavy Duty Power Connectors HAN 24B M32 TOP METAL HOOD HAN B HOOD TOP HC M32 High type top entry metric hood,M32 24B HAN24BHOODTOPENTRYHC4PEGSM32 Enclosure: for rectangular connectors; Han; size 24B; for cable Han B Hoods: Han B Hood Top Entry HC M32 Harting Han B 系列顶入电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3132	零件号别名	019 019-30-024-0427 024 0427 30
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

连接器类型 - 电压输入

high

机械参数

尺寸	24B	深度	76
高度	57	重量	0.26 kg
包装方式	Bulk	方向	straight
螺纹尺寸	M32	重量（g）	262.00000
外壳颜色	Gray	衬套螺纹	M32
连接器类型	Hood	外壳涂层	Powder Coated
安装样式	Straight	封装形式	size 24B
锁定特性	for double latch	壳体材料	Aluminum, Die Cast
总长度	120	包装数量	3
尺寸/外形	4.724" L x 1.693" W x 2.992" H (120.00mm x 43.00mm x 76.00mm)	端接样式	Cable
供应商器件封装	for rectangular connectors	外壳与棱镜材料	aluminium alloy

产品信息

SPG	3	类型	Hood
样式	Top Entry	系列	Han EEE
CAD图纸	3D CAD Model	产品子类型	Hoods
锁定位置	Locking Clip on Base Bottom	附件类型	Hood
适配器系列	Han	单元数量	1

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
