点击放大查看

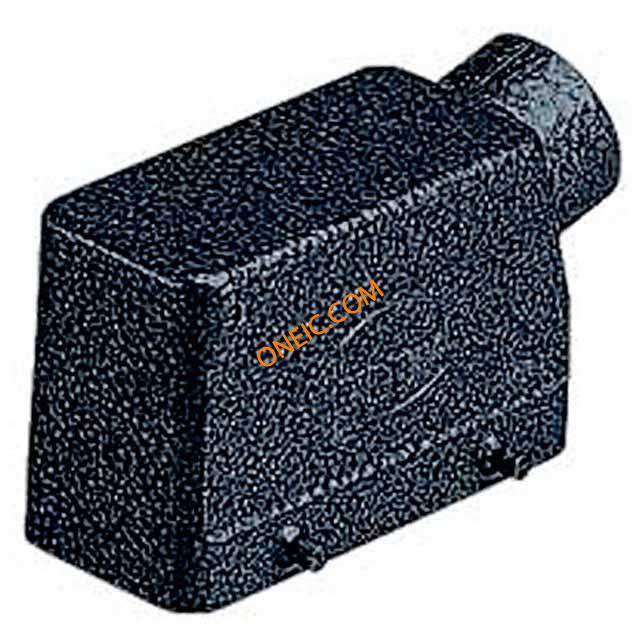

09370240521

制造商	HARTING Technology Group
描述	HAN M HOOD SIDE HC 4 PEGS PG 29 Heavy Duty Power Connectors METAL HOOD HAN 24B 2 LVR LCKING HanMHoodSideEntryHC4PegsPG29 Han M Hoods: Han M Hood Side Entry HC 4 Pegs PG 29 Harting HAN M 系列侧入电源连接器外壳
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	024 0521 09 09-37-024-0521 37	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

RoHS Compliant

机械参数

尺寸	24B	包装方式	Bulk
方向	侧入	螺纹尺寸	PG29
外壳颜色	Black	连接器类型	Hood
外壳涂层	Epoxy Powder Paint	壳体材料	Aluminum, Die Cast
尺寸/外形	4.724" L x 1.693" W x 2.992" H (120.00mm x 43.00mm x 76.00mm)

产品信息

类型	CONNECTORS	样式	Side Entry
系列	HAN M	产品子类型	Accessories
锁定位置	Locking Clip on Base Bottom	基础产品编号	0937

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
