点击放大查看

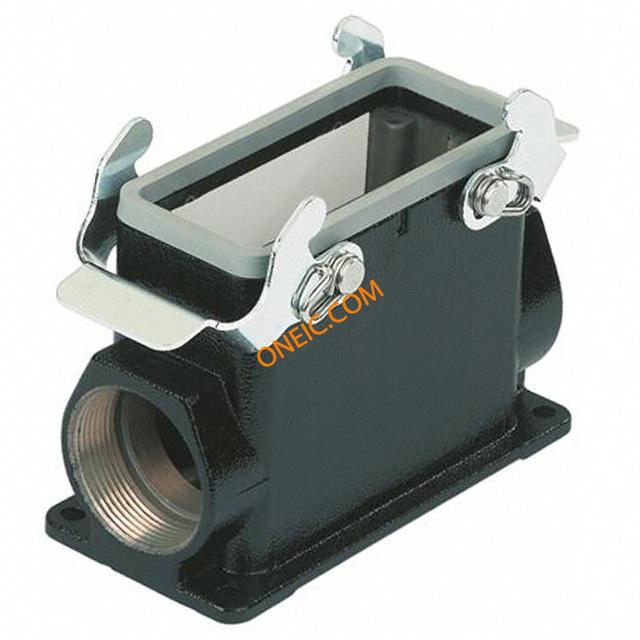

19370240272

制造商	HARTING Technology Group
描述	HAN 24M-ASG2-QB-M32 Heavy Duty Power Connectors SURFACE MOUNTING HSG 2 SIDE ENTRIES
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3156	零件号别名	019 019-37-024-0272 024 0272 37
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	1

合规参数

RoHS

RoHS Compliant

机械参数

尺寸	24B	包装方式	Bulk
螺纹尺寸	M32	外壳颜色	Black
连接器类型	Base - Box Mount	外壳涂层	Epoxy Powder Paint
壳体材料	Aluminum, Die Cast	尺寸/外形	5.669" L x 2.244" W x 3.181" H (144.00mm x 57.00mm x 80.80mm)

产品信息

样式	Side Entry	产品特性	Feed Through
产品子类型	Receptacle Housings	锁定位置	Locking Clip on Base Bottom

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C

相关型号

09330242702

Harting Technology Group

Conn Housing F 25 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN E 24P F CRIMP ORDER CONTACTS SEP HAN E 24 POS. F INSERT CRIMP RECTANGULAR HAN INSERT, FEM, 24WAY CRIMP HANE24POS.FINSERTCRIMP Connector: HAN; female; Han E; PIN:24; 24+PE; size 24B; crimped; 16A Han E Female Insert- Crimp: Han E 24 Position F Insert Crimp

¥108.7200

详情

09210643001

Harting Technology Group

Conn Housing M 65 POS Crimp ST Heavy Duty Power Connectors HAN D 64P M CRIMP ORDER CONTACTS SEP HAN D 64 POS. M INSERT CRIMP Han(R) D 64P+E male insert, 250Vac RECTANGULAR HAN INSERT, PLUG 64WAY CRIMP Insert;250V;10A;Male;64;RoHSCompliant;HanD,HanDAVSeries Connector: HAN; male; Han D; PIN:64; 64+PE; size 24B; w/o terminals Han D Male Insert: Han D 64 Position M Insert Crimp Harting Han D 系列 4行 64针插头电源连接器

¥51.9400

详情

09380122701

Harting Technology Group

Conn Rectangular F 4Power/8Signal/2Ground POS Screw ST Panel Mount Heavy Duty Power Connectors HAN K 4+8P F SCREW SCREW TERMINATION HAN K 4/8 POS. F INSERT SCREW Connector; Female Insert; 24 Positions Connector,FemaleInsert,24Positions Connector: HAN; female; Han Com; PIN:12(4+8); size 24B; Inom 1:80A Han K Female Insert: Han K 4/8 Position F Insert Screw Harting Han Com 系列 12针 12P+E极插座插片

¥670.4400

详情

09320463001

Harting Technology Group

Conn Rectangular M 46 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN EE 46P M CRIMP ORDER CONTACTS SEP HAN EE CRIMP TERM INSERT MALE Connector, han EES,46 way, male HANEECRIMPTERMINSERTMALE Connector: rectangular; male; Han EE; PIN:46; size 24B; 16A; 500V Han EE Male Insert Crimp: Han EE Crimp Term Insert Male Harting Han EE 系列 4行 46针 46P+E极插头电源连接器

¥212.1021

详情

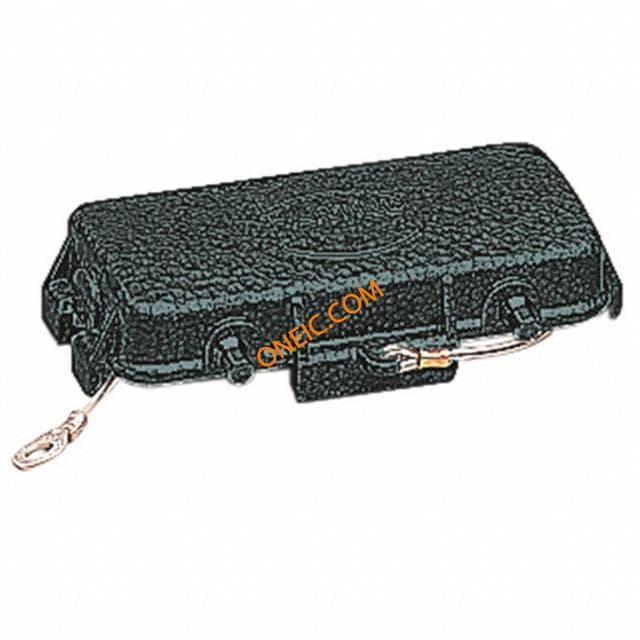

09370245405

Harting Technology Group

Connector Accessories Metal Cover Heavy Duty Power Connectors PROTECTION COVER HAN 24B 2 LVR LCKING HAN M PROTECT COVER DIE CAST Harting HAN M 系列外罩 , 适用于带护罩

¥270.3394

详情

09161083011

Harting Technology Group

HAN 108DD -M-C MALE INSERT Heavy Duty Power Connectors MALE INSERT HAN 216DD CRIMP TERM HAN 108 DD-PCI-C (109-216) INSERT MALE 108POS+1GND CRIMP Han DD Male Insert: Han 108 DD-STI-C (109-216) Harting Han DD 系列 108针插头电源连接器

¥253.0100

详情

19000005094

Harting Technology Group

Cable Accessories Cable Gland Metal Heavy Duty Power Connectors CABLE PROTECT M32 CABLE DIA 13-20 mm CBL CLAMP M32 13-20MM BRASS IP68 Cable Clamp (M32) 13-20mm Brass IP-68 CABLE CLAMP, M32, 13-20MM CableClamp(M32)13-20mmBrassIP-68 Gland; M32; IP68; Dcable:13÷20mm; Mat: metal; Spanner:40mm Cable Glands metal: Cable clamp M32, 13-20mm, brass, IP 68

¥76.7482

详情

09210643101

Harting Technology Group

Conn Housing F 65 POS Crimp ST Heavy Duty Power Connectors HAN D 64P F CRIMP ORDER CONTACTS SEP HAN D 64 POS. F INSERT CRIMP PowerConnectorInsert;Female;64 Connector: HAN; female; Han D; PIN:64; 64+PE; size 24B; UL94V-0 Han D Female Insert: Han D 64 Position F Insert Crimp

¥51.5392

详情

19000005096

Harting Technology Group

Cable Accessories Cable Gland Metal Heavy Duty Power Connectors CABLE PROTECT M32 IP68 CABLE 18-25mm CBL CLAMP M32 18-25MMBRASS IP68 Cable Entry Protection; Metal; M32; 18-25mm Cable Diameter CABLE CLAMP, M32, 18-25MM CableEntryProtection,Metal,M32,18-25mmCableDiameter Gland; M32; IP68; Dcable:18÷25mm; Mat: metal; Spanner:40mm Cable Glands metal: Cable clamp M32, 18-25mm,brass, IP 68 Harting IP68 金属金属电缆固定头 , 18mm 至 25mm电缆直径, -40°C至+125°C, M32螺纹

¥125.8983

详情

09161083101

Harting Technology Group

Conn Housing F 108Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN DD 108P F CRIMP ORDER CONTACTS SEP HAN DD 108 POS. F INSERT CRIMP Power Connector Insert; Female; 108 PowerConnectorInsert;Female;108 Connector: HAN; female; Han DD; PIN:108; 108+PE; size 24B; UL94V-0 Han DD Female Insert: Han DD 108 Position F Insert Crimp

¥78.8332

详情

09330242601

Harting Technology Group

Conn Rectangular M 24Power/2Ground POS Screw ST Panel Mount Heavy Duty Power Connectors HAN E 24P M SCREW SCREW TERMINATION HAN E 24 POS. M INSERT SCREW Han(R) E 24P+E plg insert,16A 400-500Vac Insert;500V;16A;Male;24;RoHSCompliant;24BProductSize HANE24Pos.MInsertScrew Connector: HAN; male; E; PIN:24; 24+PE; size 24B; screw terminal Han E Male Insert: Han E 24 Position M Insert Screw Harting Han E 系列 2行 24针 24P+E极插头插入式插件

¥71.3440

详情

09330242611

Harting

HAN E 24POS M INSERT SCREW 25-48 Heavy Duty Power Connectors HAN E 48P M SCREW SCREW TERMINATION Han E 25-48P+E plg insert,16A 400-500Vac Connector,MaleInsert,48Positions Connector: HAN; male; E; PIN:24; 24+PE; size 48B (2 x 24B); 16A Han E Male Insert: Han E 24 Position M Insert Screw 25-48 Harting Han E 系列 2行 49针插头电源连接器 , 电缆安装

¥200.1818

详情

09320643101

Harting

HAN 64 EEE-F-C Han 64EEE Female Connector Heavy Duty Power Connectors 64+PE 16A 500V FEMALE INSERT 64EEEFEMALE Connector: HAN; female; Han EEE; PIN:64; 64+PE; size 24B; crimped Han EE Female insert Crimp: Han 64 EEE-F-C Harting Han EEE 系列 65针插座电源连接器外壳 , 电缆安装

¥303.2800

详情

09320463011

Harting

HAN EE 46POS MALE CRIMP TERM Heavy Duty Power Connectors MALE INSERT HAN 92EE CRIMP TERM Connector: rectangular; male; Han EE; PIN:46; size 24B; 16A; 500V Han EE Male Insert Crimp: Han EE 46 Position Male Crimp Term. (47-92)

¥257.3120

详情

09380122601

Harting

HAN K 4/8 POS. M INSERT SCREW Heavy Duty Power Connectors HAN K 4+8P M SCREW SCREW TERMINATION Han-Com(R) K 4/8P+E male screw insert HanK4/8Pos.MInsertScrew Connector: HAN; male; Han Com; PIN:12(4+8); size 24B; Inom 1:80A Han K Male Insert: Han K 4/8 Position M Insert Screw Harting Han K 系列 2行 13针插头电源连接器

¥588.9000

详情

09380122751

Harting

HAN K 6/6 POS F INSERT CRIMP Heavy Duty Power Connectors HAN K 6+6P F SCREW SCREW TERMINATION Han-Com(R) K 6/6P+E socket screw insert KINSERTFEMALE6/6 Han K Female Insert: Han K 6/6 Position F Insert Combi with crimp Harting Han K 系列 2行 13针插座电源连接器

¥491.7080

详情

09330242711

Harting

HAN 48E INSERT FEMALE SCREW Heavy Duty Power Connectors HAN E 48P F SCREW SCREW TERMINATION Han E 25-48P+E skt insert,16A 400-500Vac Connector,FemaleInsert,48Positions Connector: HAN; female; E; PIN:24; 24+PE; size 48B (2 x 24B); 16A Han E Female Insert: Han 48E insert female screw (25-48) Harting Han E 系列 2行 25针插座电源连接器

¥232.2839

详情

09161083111

Harting

Heavy Duty Power Connectors FEMALE INSERT HAN 216DD CRIMP TERM HAN 108 DD-BU-C (109-216) INSERT FEMALE 108POS+1GND CRIMP Han DD Female Insert: Han 108 DD-BU-C (109-216) Harting Han DD 系列 108针插座电源连接器

¥234.9700

详情

暂无图片

09330242612

Harting

Heavy Duty Power Connectors MALE INSERT 48 POLE CRIMP TERM HAN E 24 POS. M INSERT CRIMP INSERT MALE 24POS+1GND CRIMP

¥131.1380

详情

09330242626

Harting

Heavy Duty Power Connectors MALE INSERT 48 POLE CAGE CLAMP HAN 24ES MALE INSERT CAGE CLAMP INSERT MALE 24POS+1GND PUSH IN

¥338.0000

详情
