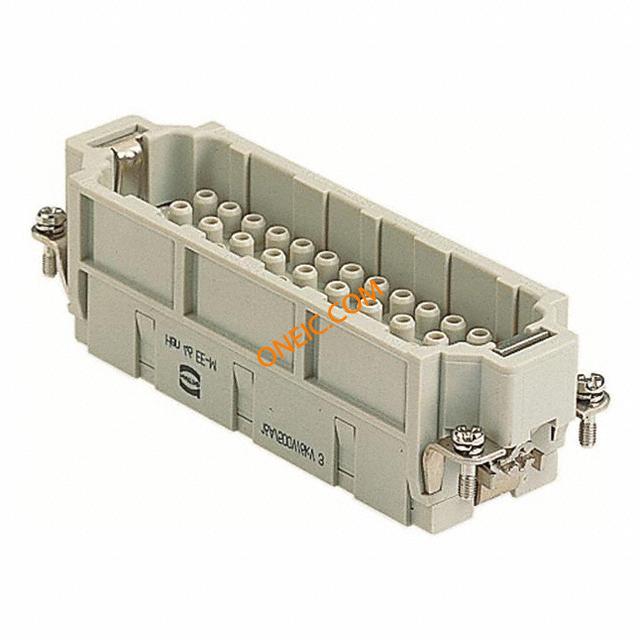

09320463001

制造商
HARTING Technology Group
描述
Conn Rectangular M 46 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN EE 46P M CRIMP ORDER CONTACTS SEP HAN EE CRIMP TERM INSERT MALE Connector, han EES,46 way, male HANEECRIMPTERMINSERTMALE Connector: rectangular; male; Han EE; PIN:46; size 24B; 16A; 500V Han EE Male Insert Crimp: Han EE Crimp Term Insert Male Harting Han EE 系列 4行 46针 46P+E极 插头 电源连接器
分类
连接器解决方案重载连接器重载连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名046 09 09-32-046-3001 3001 32产品类别Heavy Duty Power Connectors
标准包装数量1工厂包装数量10

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
材料阻燃等级UL94 V-0

电气参数

额定电压600V最大额定电流16A
最小输入电压500V连接器类型 - 电压输入w/o terminals

机械参数

尺寸24B颜色Gray
深度33.3高度34
重量0.08 kg包装方式Bulk
端接方式Crimp重量（g）78.00000
触头类型Han®安装类型Straight
连接器类型Insert without Contacts排数4
封装形式size 24B插入力Male
壳体材料Polycarbonate (PC)总长度111
尺寸/外形24B端接样式Crimp
第一触头极性M触点数46
位数46+Ground线规或范围 - AWG20-12

产品信息

类型Rectangular连接器性别Male
系列Han-EE极性46P+E
CAD图纸3D CAD Model极数格式46P+E
产品子类型Housings附件类型Male Insert
适配器系列Han EE单元数量1
适用产品/相关产品Heavy Duty Power Input

环境参数

工作温度-40°C ~ 125°C

相关型号

09330006127

09330006127

HARTING

Heavy Duty Power Connectors MALE INSERT STD SILVER PLATED Contact PIN Crimp ST Cable Mount D-Sub Contacts MALE INSERT STD SILVER PLATED HAN E M CRIMP CONTACT AG 26 AWG Han E Male Crimp Contact Ag 26AWG HAN10AWG26-22SilverPlatedMaleContact Harting Han Contacts 系列 公插 压接触点 , 额定电流 16A/ 400 V, 适用于大负荷电源连接器

¥3.3864
详情
09330006119

09330006119

Harting Technology Group

Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors MALE INSERT STD GOLD PLATED HAN E M CRIMP CONTACT AU WG 4MM HanEMCrimpContactAuWG4mm Harting Han E 系列 公插 触点

¥19.0944
详情
19300241422

19300241422

Harting Technology Group

Connector Accessories Hood Metal Heavy Duty Power Connectors HAN 24B M32 TOP METAL HOOD HAN B HOOD TOP LC 4 PEGS M32 Low type top entry metric hood,M32 24B HAN24BHOODTOPENTRYLC4PEGSM32 Enclosure: for rectangular connectors; Han; size 24B; for cable Han B Hoods: Han B Hood Top Entry LC 4 Pegs M32 Harting Han B 系列 顶入 电源连接器

¥47.7219
详情
09330240401

09330240401

Harting Technology Group

Connector Accessories Shell Housing HAN SNAP SHELL HOUSING SIZE 24 Heavy Duty Power Connectors HAN 24B HOOD Han Snap: Han Snap Shell Housing Size 24 Harting Han Snap 系列 电源连接器外壳

¥118.6500
详情
19300240448

19300240448

Harting Technology Group

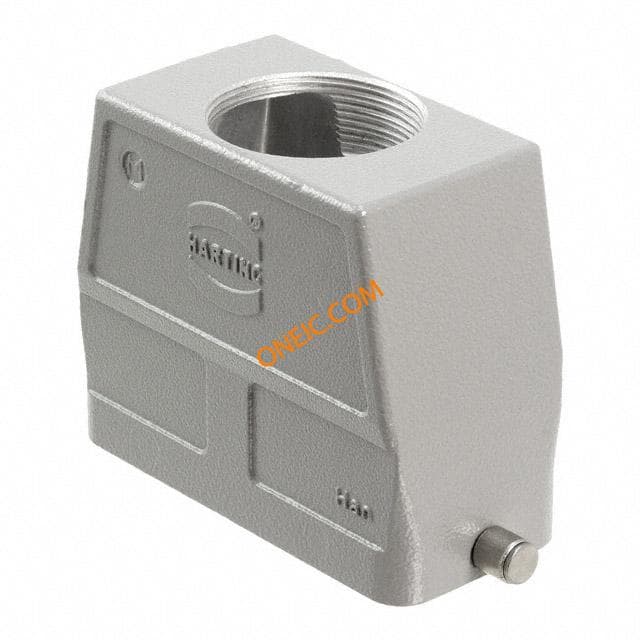

HAN 24B-GG-R-M40 HOOD Heavy Duty Power Connectors LOCKING HOOD CONN HAN 24B HOOD TOP M40 HANBHOODTOPENTRYHC2REELSM40 Han B Hoods: Han B Hood Top Entry HC 2 Reels M40 Harting Han B 系列 顶入 电源连接器
