点击放大查看

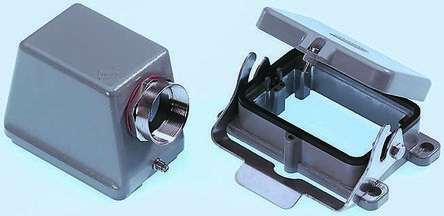

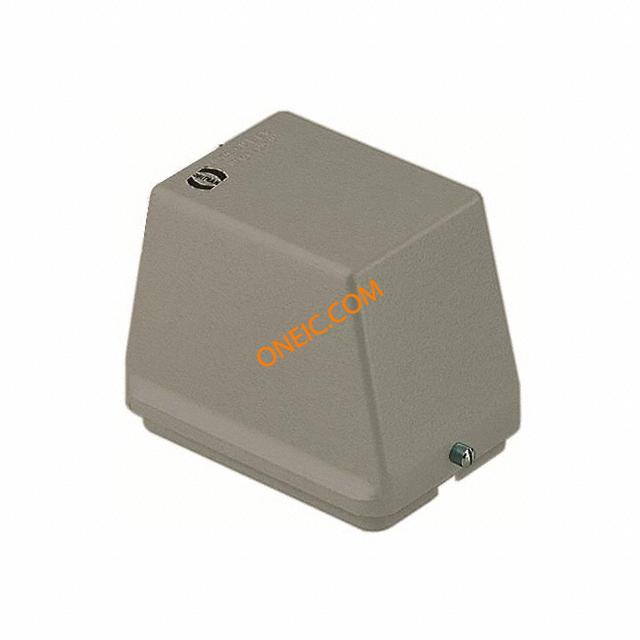

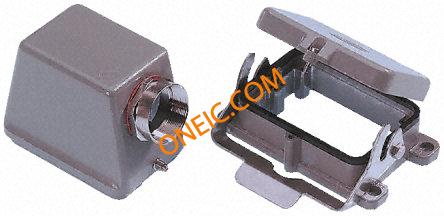

09300480540

制造商	HARTING Technology Group
描述	HAN B HOOD SIDE HC 2 PEGS PG 29 Heavy Duty Power Connectors HAN 48B PG29 SIDE METAL HOOD Han(R) side entry hood,PG29 size 48B HAN48BHood(SideEntry,SingleLeverPeg)PGThread Harting Han B 系列侧入电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	048 0540 09 09-30-048-0540 30	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Compliant

机械参数

尺寸	48B	包装方式	Bulk
方向	侧入	螺纹尺寸	PG29
重量（g）	754.00000	外壳颜色	Gray
连接器类型	Hood	外壳涂层	Powder Coated
安装样式	Side	插入力	Female
壳体材料	Aluminum, Die Cast	尺寸/外形	5.197" L x 3.543" W x 4.252" H (132.00mm x 90.00mm x 108.00mm)
端接样式	Cable	触点数	1

产品信息

类型	连接器护罩	样式	Side Entry
系列	Han B	产品子类型	Hoods
锁定位置	Side Clip on Base Bottom	附件类型	Hood

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
