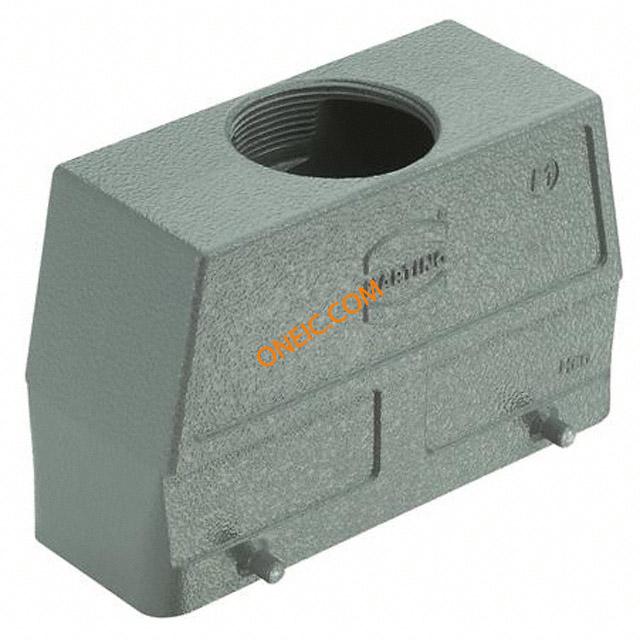

19300240428

制造商	HARTING Technology Group
描述	HAN 24B-GG-M40 HOOD Heavy Duty Power Connectors METAL HOOD HAN 24B 2 LVR LCKING HAN B HOOD TOP HC M40 HANBHOODTOPENTRYHCM40 Enclosure: for rectangular connectors; Han; size 24B; for cable Han B Hoods: Han B Hood Top Entry HC M40 Harting Han B 系列顶入电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3133	零件号别名	019 019-30-024-0428 024 0428 30
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

连接器类型 - 电压输入

high

机械参数

尺寸	24B	重量	0.26 kg
包装方式	Bulk	方向	straight
螺纹尺寸	M40	重量（g）	262.00000
外壳颜色	Gray	衬套螺纹	M40
连接器类型	Hood	外壳涂层	Powder Coated
安装样式	Straight	封装形式	size 24B
锁定特性	for double latch	壳体材料	Aluminum, Die Cast
包装数量	1	尺寸/外形	4.724" L x 1.693" W x 2.992" H (120.00mm x 43.00mm x 76.00mm)
供应商器件封装	for rectangular connectors	外壳与棱镜材料	aluminium alloy

产品信息

SPG	1	类型	CONNECTORS
样式	Top Entry	系列	Han EEE
产品子类型	Hoods	锁定位置	Locking Clip on Base Bottom
适配器系列	Han	单元数量	1
基础产品编号	1930

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
