点击放大查看

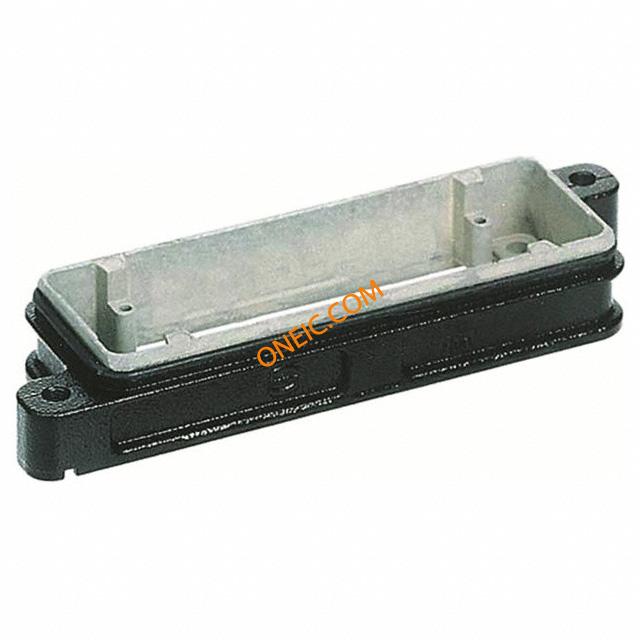

09400240311

制造商	HARTING Technology Group
描述	HAN 24 HPR BASE PANEL SCREW LOCK Heavy Duty Power Connectors BULKHEAD MOUNTING HAN 24B SCRW LCKING HPR IP68 panel mount housing,24B Han24HPRBasePanelScrewlocking Han HPR Housings: Han 24 HPR Base Panel Screw locking Harting Han HPR 系列电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	024 0311 09 09-40-024-0311 40	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Compliant

机械参数

尺寸	24B	包装方式	Bulk
外壳颜色	Black	连接器类型	Base - Panel Mount
外壳涂层	Epoxy Powder Paint	安装样式	Vertical
壳体材料	Aluminum, Die Cast	尺寸/外形	7.559" L x 2.283" W x 1.138" H (192.00mm x 58.00mm x 28.90mm)

产品信息

类型	CONNECTORS	样式	Bottom Entry
系列	Han EEE	CAD图纸	3D CAD Model
产品子类型	Housings	锁定位置	Screw Locks on Hood

环境参数

防护等级

IP68/69K - Dust Tight, Waterproof

工作温度

-40°C ~ 125°C

相关型号

09110009926

HARTING

Heavy Duty Power Connectors HAN HC250 MOUNTING FRAME, 4POLE, FEMALE FRAME 4XHC250-F Han HC Accessories: Frame 4xHC250-F

¥153.0680

详情

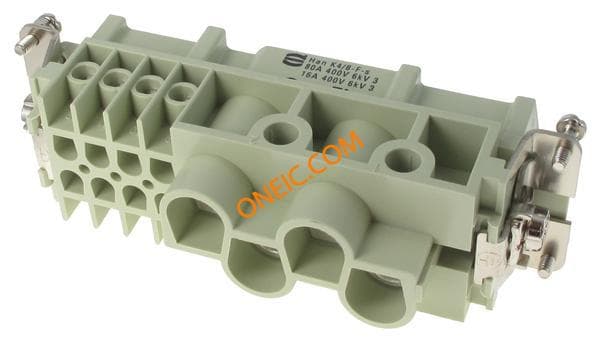

09380122701

Harting Technology Group

Conn Rectangular F 4Power/8Signal/2Ground POS Screw ST Panel Mount Heavy Duty Power Connectors HAN K 4+8P F SCREW SCREW TERMINATION HAN K 4/8 POS. F INSERT SCREW Connector; Female Insert; 24 Positions Connector,FemaleInsert,24Positions Connector: HAN; female; Han Com; PIN:12(4+8); size 24B; Inom 1:80A Han K Female Insert: Han K 4/8 Position F Insert Screw Harting Han Com 系列 12针 12P+E极插座插片

¥670.4400

详情

09210643101

Harting Technology Group

Conn Housing F 65 POS Crimp ST Heavy Duty Power Connectors HAN D 64P F CRIMP ORDER CONTACTS SEP HAN D 64 POS. F INSERT CRIMP PowerConnectorInsert;Female;64 Connector: HAN; female; Han D; PIN:64; 64+PE; size 24B; UL94V-0 Han D Female Insert: Han D 64 Position F Insert Crimp

¥51.5392

详情

09380052621

Harting Technology Group

Connector Accessories Male Insert Heavy Duty Power Connectors MALE INSERT HAN 24B SCW TERM HAN K 3/0 POS. FEMALE INSERT SCR INSERT MALE 3POS SCREW

¥886.2440

详情

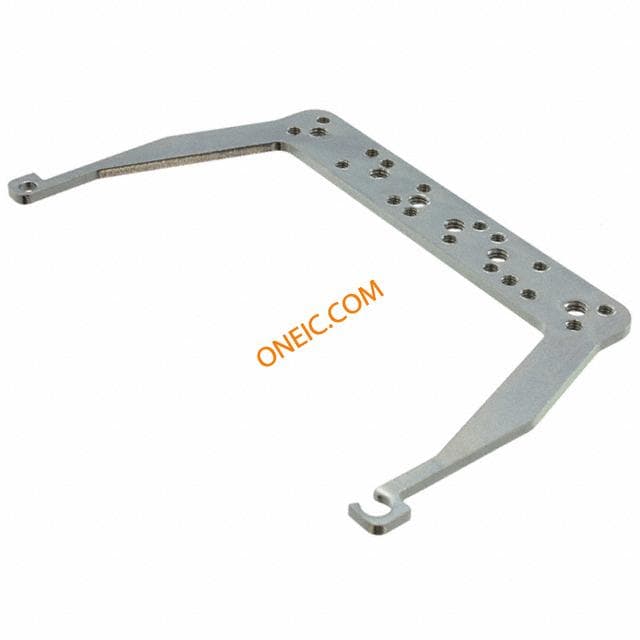

09000005211

Harting

GROUND TERM SIZE 24B MOD HI VER Heavy Duty Power Connectors GROUNG TERM 24B MODULAR Han-Modular Accessories: Ground Terminal Size 24B Modular high ve Harting HAN Modular 系列电源连接器

¥273.3206

详情

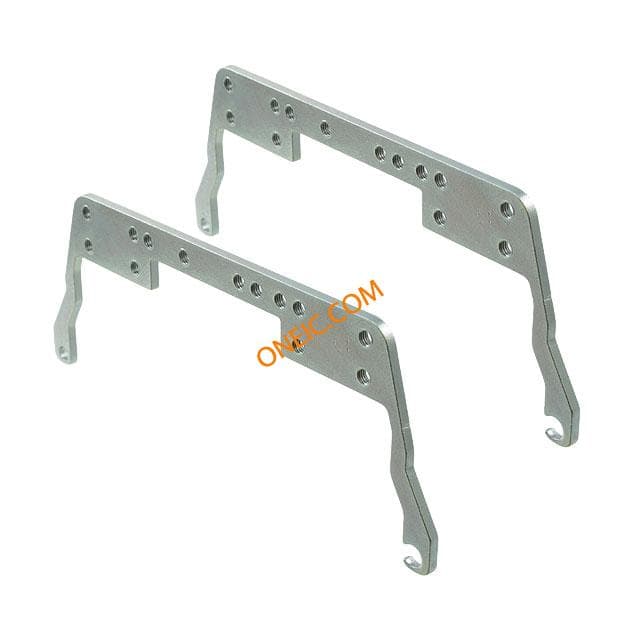

09000005235

Harting

GROUND TERM FOR HAN MOD SIZE 24 Heavy Duty Power Connectors GROUNDING FRAME FOR 24B MOD FRAME

¥281.8600

详情

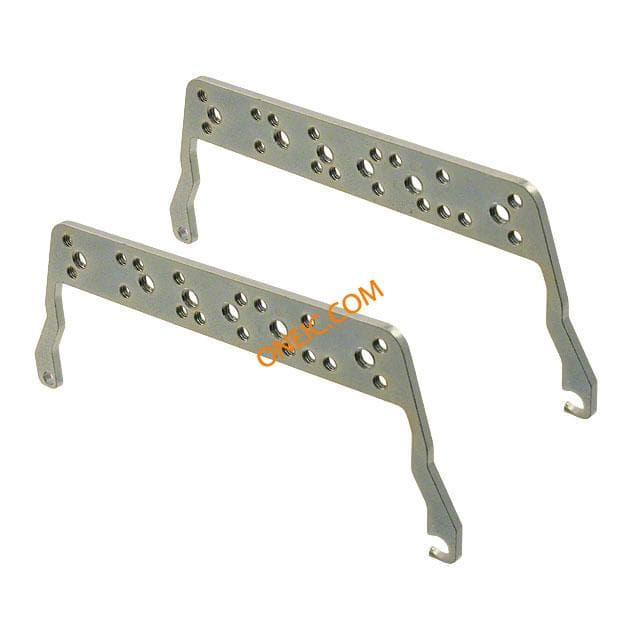

09000005298

Harting

GROUND TERM FOR HAN-MOD SIZE 24 Heavy Duty Power Connectors GROUNDING FRAME FOR 24B MOD FRAME Harting HAN Modular 系列电源连接器

¥109.5219

详情

09330242611

Harting

HAN E 24POS M INSERT SCREW 25-48 Heavy Duty Power Connectors HAN E 48P M SCREW SCREW TERMINATION Han E 25-48P+E plg insert,16A 400-500Vac Connector,MaleInsert,48Positions Connector: HAN; male; E; PIN:24; 24+PE; size 48B (2 x 24B); 16A Han E Male Insert: Han E 24 Position M Insert Screw 25-48 Harting Han E 系列 2行 49针插头电源连接器 , 电缆安装

¥200.1818

详情

09320643101

Harting

HAN 64 EEE-F-C Han 64EEE Female Connector Heavy Duty Power Connectors 64+PE 16A 500V FEMALE INSERT 64EEEFEMALE Connector: HAN; female; Han EEE; PIN:64; 64+PE; size 24B; crimped Han EE Female insert Crimp: Han 64 EEE-F-C Harting Han EEE 系列 65针插座电源连接器外壳 , 电缆安装

¥303.2800

详情

09320463011

Harting

HAN EE 46POS MALE CRIMP TERM Heavy Duty Power Connectors MALE INSERT HAN 92EE CRIMP TERM Connector: rectangular; male; Han EE; PIN:46; size 24B; 16A; 500V Han EE Male Insert Crimp: Han EE 46 Position Male Crimp Term. (47-92)

¥257.3120

详情

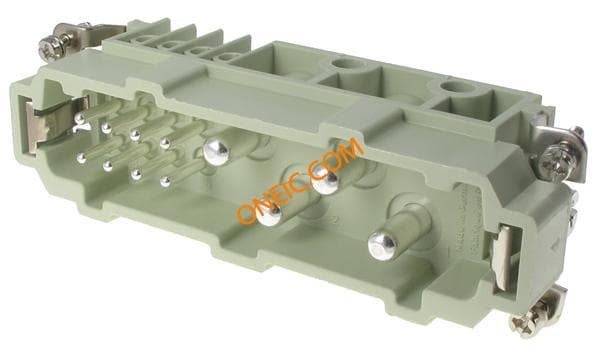

09380122601
