794192-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 8 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 8POS MINI UNIV-MATE 2 Housing,plug,mini Mate-n-lok,2 row,8 Way Pin & Socket Connectors 08P MINI UMNL2 PLUG Conn Housing PL 8 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 84.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Seri MINIUMNL2HOUSINGS,08PMINIUMNL2PLUGHSGUL94V0 TE Connectivity Mini-Universal MATE-N-LOK II 系列 2 行 4.14mm 节距 8 路 直 公 压接连接器外壳 08P MINI UMNL2 PLUG HSG UL94V0 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 400 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL, VDE |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 测试电压 | :1500V | 额定电压 | 600 V |
| 供电电压 | 600 | 最大额定电流 | 9.5 A |
| 最大触点电流 | :10.5A | 绝缘电阻 | :100Mohm |
| 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK 2 | ||
机械参数
| 颜色 | White | 深度 | 23.75mm |
| 间距 | 4.14 mm | 宽度 | 17.25mm |
| 长度 | 22.83mm | 重量 | 0.001001 |
| 锁定类型 | Latch | 包装方式 | Bulk |
| 排间距 | 0.163" (4.14mm) | 触头类型 | Male or Female |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 2 | 壳体材料 | Nylon |
| 包装数量 | One Piece Housing | 主要材料 | InterconnectSystem |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 8 | 接触件端接 | Crimp |
| 位数 | 8 | 中心触点材料 | 4.14 x 4.14 [.163 x .163] |
| 典型触点布局 | Double-Row | 接触镀层厚度 | 0.99 [0.039] |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | MATE-N-LOK |
| CAD图纸 | 3D CAD Model | 制造商全称 | MATE-N-LOK |
| 产品子类型 | Housing | 电路数 | 8 |
| 适用产品/相关产品 | Centerline Soft Shell Pin & Socket Connector | ||
环境参数
| 工作温度 | :65°C | ||
文档与媒体
相关型号
1-794327-1
TE Connectivity / AMP
Headers & Wire Housings 08P MINI UMNL HDR ASSY BLMT LF .163" Centerline, 600 V, 9.5 A max. CONN HEADER 8POS VERT MINI-UMNL
1-794073-0
te connectivity / amp
Conn Power PIN 8 POS 4.14mm Solder ST Thru-Hole 8 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 8POS VERT .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 8 Way Straight Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 8 POS TIN DUAL ROW Conn Power PIN 8 POS 4.14mm Solder ST Thru-Hole 8 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 84.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, PLUG, 8POS, 4.14MM HDR,PLUG,8WPINCONTACT Pin header Pitch4.14 mm Poles 2 x 4 straight MATE-N-LOK Mini Universal, 1-794073-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 8路 直 PCB 针座, 焊接端接, 9.5A , 通孔 08P MINI UMNL HDR W/O DH SN LF
1-794065-1
te connectivity / amp
Conn Wire to Board PIN 8 POS 4.14mm Solder ST Thru-Hole .163" Centerline, 600 V, 9.5 A max. CONN HEADER 8PS STR DL .163 GOLD Headers & Wire Housings HEADER 8 POS GOLD DUAL ROW Conn Power PIN 8 POS 4.14mm Solder ST Thru-Hole 8 Terminal 1 Port Conn Power PIN 8 POS 4.14mm Solder ST Thru-Hole 8 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 84.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HEADER, 8WAY MINI-UNIVM-N-LHDRS,08PMINIUMNLHDRW/DHAULF TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 8路 (2排) 直 PCB 针座, 焊接端接, 9.5A , 通孔 08P MINI UMNL HDR W/DH AU LF
1-794222-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 16-20AWG MINI-U M-N-L2 Pin & Socket Connectors PIN 16-20 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = StripWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONN PIN 16-20AWG MINI UMNL2 PIN 20-16AWG AU LF
770970-2
te connectivity / amp
Conn Power PIN 8 POS 4.14mm Solder RA Thru-Hole 8 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADR 8POS R/A DUAL .163 AU Pin & Socket Connectors HEADER ASSY 8P R/A 200 Conn Power PIN 8 POS 4.14mm Solder RA Thru-Hole 8 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 84.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 08P MINI UMNL R/A HDR ASSY AU
1-770970-0
te connectivity / amp
Conn Power HDR 8 POS 4.14mm Solder RA Thru-Hole 8 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 8POS R/A DL .163 TIN Headers & Wire Housings HEADER 8 POS R/A TIN DUAL ROW Conn Power HDR 8 POS 4.14mm Solder RA Thru-Hole 8 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 84.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING R/A, 8WAY MINI-UNIVM-N-LHDRS,08PMINIUMNLR/AHDRASSYSN 08P MINI UMNL R/A HDR ASSY SN

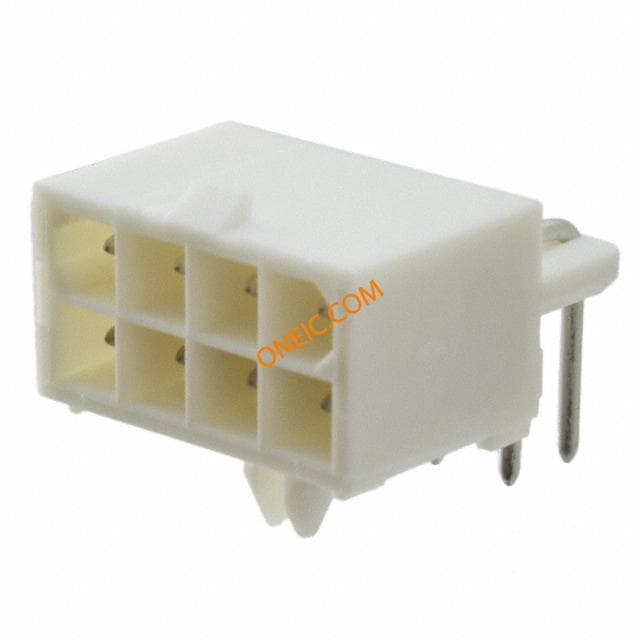

770970-1
te connectivity / amp
Conn Power PIN 8 POS 4.14mm Solder RA Thru-Hole 8 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 8POS R/A DUAL .163 TIN Pin & Socket Connectors 8 POS. R/A HEADER 1200 Conn Power PIN 8 POS 4.14mm Solder RA Thru-Hole 8 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 84.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 08P MINI UMNL R/A HDR ASSY SN
794065-2
te connectivity / amp
Conn Power PIN 8 POS 4.14mm Solder ST Thru-Hole 8 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 8POS STR DUAL .163 GOLD Power to the Board 08P MINI UMNL HDR W/ 200 08P MINI UMNL HDR W/DH AU
794229-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 18-22AWG GOLD CRIMP Power to the Board SOCKET CONTACT 22-18 2000 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketLoose PieceWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 22-18 AWG AU LP
1-794221-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SCKT 18-22AWG MINI-U M-N-L2 Pin & Socket Connectors MUMNL2 SKT 22-18 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketPackaging Method = StripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 22-18AWG AU LF
1-770970-1
te connectivity / amp
Conn Power HDR 8 POS 4.14mm Solder RA Thru-Hole 8 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 8PS R/A DL .163 GOLD Headers & Wire Housings HEADER 8 POS R/A GOLD DUAL ROW Conn Power HDR 8 POS 4.14mm Solder RA Thru-Hole 8 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 84.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI-UNIVM-N-LHDRS,08PMINIUMNLR/AHDRASSYLF 08P MINI UMNL R/A HDR ASSY LF
1-794217-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG MINI U MNL Pin & Socket Connectors MINI UMNL2 SOK 30-26 Contact SKT Crimp ST Cable Mount Strip Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
1-794073-1
te connectivity / amp
Conn Power HDR 8 POS 4.14mm Solder ST Thru-Hole 8 Terminal 1 Port Headers & Wire Housings HEADER 8 POS GOLD DUAL ROW .163" Centerline, 600 V, 9.5 A max. CONN HEADER 8POS VERT .163 GOLD TE Connectivity MATE-N-LOK Series 4.14mm Pitch 8 Way Straight Heavy Duty Power Connector, Solder Termination, 9.5A Conn Power HDR 8 POS 4.14mm Solder ST Thru-Hole 8 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 84.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HDR,PLUG,8WPINCONTACT TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 8路 直 PCB 针座, 焊接端接, 9.5A , 通孔 08P MINI UMNL HDR W/O DH AU LF

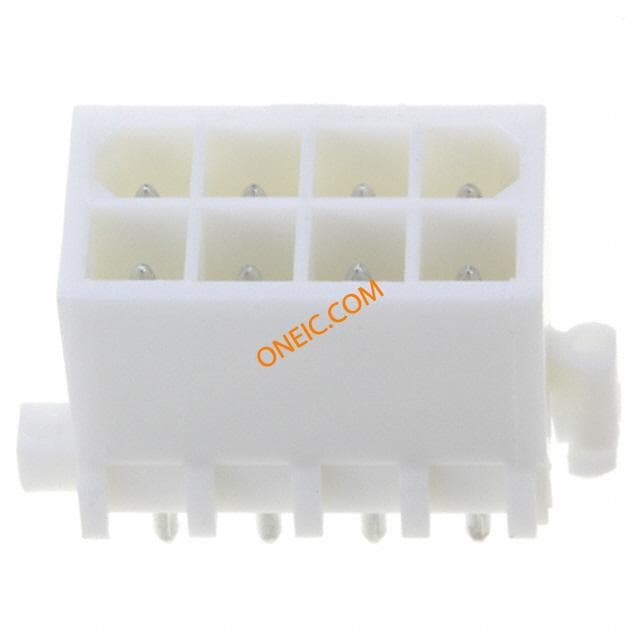

794065-1
