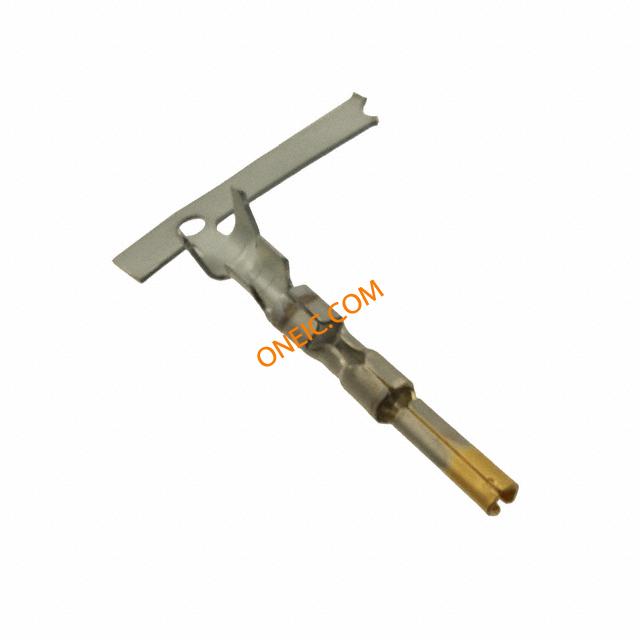

1-794221-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SCKT 18-22AWG MINI-U M-N-L2 Pin & Socket Connectors MUMNL2 SKT 22-18 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketPackaging Method = StripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 22-18AWG AU LF |
| 分类 |
商业参数
| 其他名称 | A100433CT | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 4500 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| UL档案号 | E28476 | CSA档案号 | LR 7189 |
| 标准编号 | CSA, UL | CSA分类 | 已认证 |
| 认证机构标志 | 是 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 接触电阻 | 20 mohm | 最大额定电流 | 9.5 A |
| 最小供电电压 | 600VDC/600VAC | 连接器类型 - 电压输入 | Crimp |
机械参数
| 深度 | 3.81 mm | 间距 | Not Required mm |
| 高度 | 4.42 mm | 镀层 | 锡 |
| 包装方式 | Tape & Reel (TR) | 电缆类型 | 分离式导线 |
| 导线线规 | 18-22 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 外壳颜色 | Not Required |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 释放力 | 不带 | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 壳体镀层 | Nickel | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 总长度 | 20.2 mm | 包装数量 | 4500 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 适用端子尺寸 | No | 触点数 | Not Required |
| 接触件端接 | Crimp | 绝缘直径 | 1.5 – 2.39 mm [ .059 – .094 in ] |
| 兼容外壳尺寸（如TM-700等） | 插头护套 | 触点镀层 | 哑光 |
| 接触件表面处理 - 配合 | 锡 | 法兰上方插针尺寸 | 1 mm [ .039 in ] |
| 接触镀层厚度 | 30µin (0.76µm) | 护套（绝缘）厚度 | 1.27 µm [ 50 µin ] |
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | Mini-Universal MATE-N-LOK II, AMP | 产品子类型 | Contacts |
| 应用细节 | Power | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -20 – 105 °C [ -4 – 221 °F ] |
