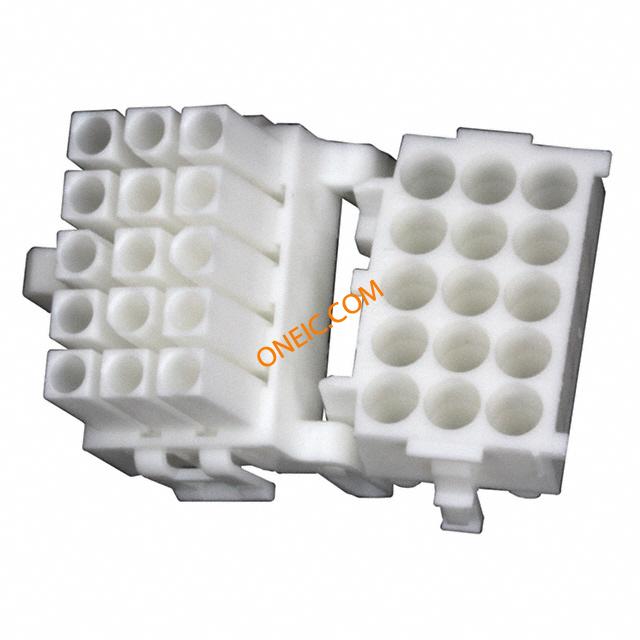

794204-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 15 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 15POS MINI UNIV-MATE 2 Housing,plug,mini Mate-n-lok,matrix,15Wy Pin & Socket Connectors 15P MINI UMNL2 PLUG Conn Housing PL 15 POS 4.14mm Crimp ST Individual Product Highlights:HousingHousing Type = PlugMini-Universal MATE-N-LOK 24.14 mm CenterlineMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING,PLUG,MATRIX,15WAY Crimp housing Pitch4.14 mm Poles 3 x 5 MATE-N-LOK II Mini Universal, 794204-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 3 行 4.14mm 节距 15 路 直 公 压接连接器外壳 15P MINI UMNL2 PLUG HSG UL94V0 |
| 分类 |
商业参数
| 其他名称 | A25714 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 250 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| 标准编号 | UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 600 V | 极数 | 3 x 5 |
| 供电电压 | 600 | 最大额定电流 | 9.5 A |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK 2 |
机械参数
| 颜色 | White | 深度 | 23.75mm |
| 间距 | 4.14 mm | 宽度 | 21.44mm |
| 高度 | 21.44 mm | 长度 | 27.1mm |
| 密封型 | Not Sealed | 锁定类型 | Latch |
| 包装方式 | Bulk | 方向 | 直 |
| 排间距 | 0.163" (4.14mm) | 触头类型 | Male or Female |
| 外壳颜色 | White | 安装类型 | Straight |
| 连接器类型 | Plug | 接触镀层 | Without |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 3 | 封装形式 | Plug |
| 壳体材料 | Nylon | 总长度 | 27.1 mm |
| 包装数量 | One Piece Housing | 面板安装类型 | 不带 |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 15 | 接触件端接 | Crimp |
| 位数 | 15 | 兼容外壳尺寸（如TM-700等） | 小型通用 MATE-N-LOK 2 帽护套/印刷电路板插针接头 |
| 中心触点材料 | 4.14 [.163] | 典型触点布局 | Matrix |
| 接触镀层厚度 | 0.99 [0.039] | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | MATE-N-LOK |
| CAD图纸 | 3D CAD Model | 产品子类型 | Housing |
| 连接方式 | Wire-Wire | 电路数 | 15 |
| 装配配置 | Without | 适用产品/相关产品 | Centerline Soft Shell Pin & Socket Connector |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55...+105 °C |
相关型号
794205-1
te connectivity / amp
Conn Housing RCP 15 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN CAP 15POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN CAP 15 POS Conn Housing RCP 15 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 154.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Crimp housing Pitch4.14 mm Poles 3 x 5 MATE-N-LOK II Mini Universal, 794205-1, TE Connectivity 15P MINI UMNL2 CAP HSG UL94V0
770859-1
te connectivity / amp
Conn Power PIN 15 POS 4.14mm Solder ST Thru-Hole 15 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 15POS PCB TIN WHITE Pin & Socket Connectors VERT PCB PIN HDR 15P 800 Conn Power PIN 15 POS 4.14mm Solder ST Thru-Hole 15 Terminal 1 Port Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
1-770190-0
te connectivity / amp
Conn Power PIN 15 POS 4.14mm Solder ST Thru-Hole 15 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 15POS VERT .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 15 Way Straight Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 15 POS TIN MATRIX Conn Power PIN 15 POS 4.14mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 154.14 x 4.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Pin header Pitch4.14 mm Poles 3 x 5 straight MATE-N-LOK Mini Universal, 1-770190-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 15路 4.14mm节距 直 PCB 针座 , 焊接端接, 9.5A, 通孔 15P MINI-UMNL ASSY V0 SNNI*
794220-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN MINI-UMNL2 22-18AWG TIN Mate-n-lok,contact,pin,0.30-0.90mm² Power to the Board UMNL SOK 20-14 .0126 Reel of 4500 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = StripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Mate-n-lok,contact,pin,0.30-0.90mm² Miniature Universal MATE-N-LOK 22-18 AWG Wire to Cable Crimp Pin Contact TE Connectivity Mini-Universal MATE-N-LOK II 系列 公 压接接线端子, 压接, 镀锡镀镍触点 MINI UMNL2 PIN 22-18 AWG SN
770190-2
te connectivity / amp

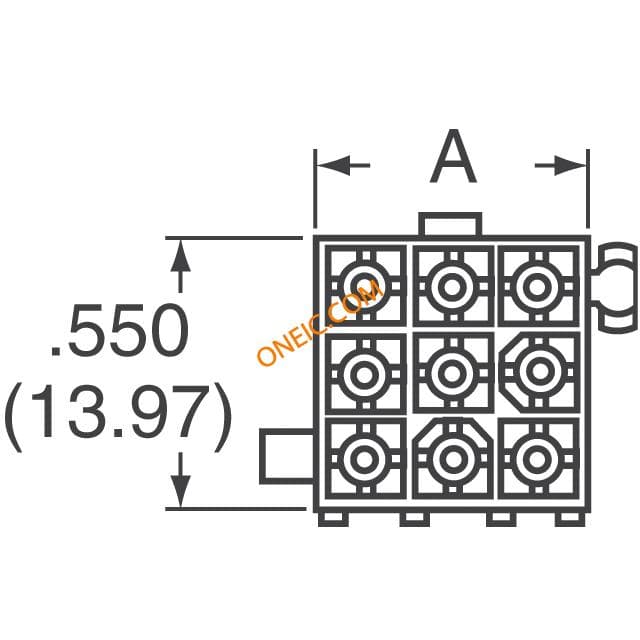

Conn Power HDR 15 POS 4.14mm Solder ST Thru-Hole 15 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 15POS VERT .163 AU Pin & Socket Connectors HEADER ASSY 15 POS 200
1-794222-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 16-20AWG MINI-U M-N-L2 Pin & Socket Connectors PIN 16-20 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = StripWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONN PIN 16-20AWG MINI UMNL2 PIN 20-16AWG AU LF
1-770859-0
te connectivity / amp
Conn Power HDR 15 POS 4.14mm Solder ST Thru-Hole 15 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 15POS VERT MINI-UMNL Headers & Wire Housings HEADER 15 POS TIN MATRIX 15P MINI UMNL HDR ASSY SN 15P MINI UMNL HDR ASSY SN Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
794229-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 18-22AWG GOLD CRIMP Power to the Board SOCKET CONTACT 22-18 2000 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketLoose PieceWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 22-18 AWG AU LP
1-794221-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SCKT 18-22AWG MINI-U M-N-L2 Pin & Socket Connectors MUMNL2 SKT 22-18 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketPackaging Method = StripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 22-18AWG AU LF
794225-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG GOLD CRIMP
1-794217-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG MINI U MNL Pin & Socket Connectors MINI UMNL2 SOK 30-26 Contact SKT Crimp ST Cable Mount Strip Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP

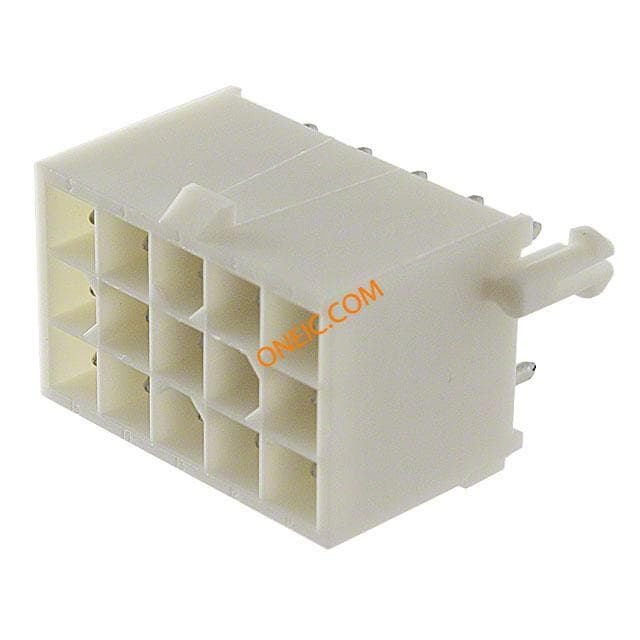

770190-1
