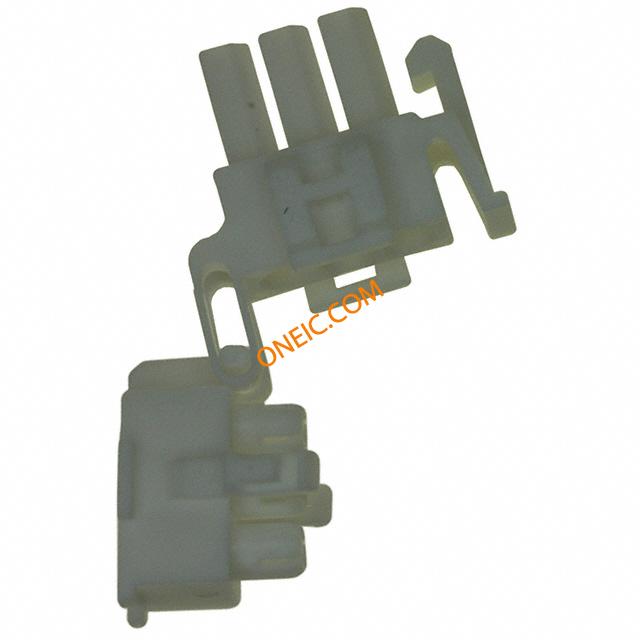

794186-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 3 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 3POS MINI UNIV-MATE 2 Housing,plug,mini Mate-n-lok,1 row,3 Way Pin & Socket Connectors 3P MINI PLUG HSG Conn Housing PL 3 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 34.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON HOUSING,PLUG,MINI-UNIVERSALMATE-N-LOK2,3POSITION,FREEHANGING,IN-LINE Crimp housing Pitch4.14 mm Poles 1 x 3 MATE-N-LOK II Mini Universal, 794186-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 4.14mm 节距 3 路 直 公 压接连接器外壳 03P MINI UMNL2 PLUG HSG UL94V0 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 700 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 9.5 A | 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK 2 |
机械参数
| 颜色 | White | 深度 | 23.75mm |
| 间距 | 4.14 mm | 宽度 | 10.29mm |
| 长度 | 21.44mm | 重量 | 0.00001 |
| 锁定类型 | Latch | 包装方式 | Bulk |
| 排间距 | 0.163" (4.14mm) | 触头类型 | Male or Female |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 1 | 壳体材料 | Nylon |
| 包装数量 | One Piece Housing | 主要材料 | InterconnectSystem |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 3 | 接触件端接 | Crimp |
| 位数 | 3 | 中心触点材料 | 4.14 [.163] |
| 典型触点布局 | In-Line | 接触镀层厚度 | 0.99 [0.039] |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | MATE-N-LOK |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Housing |
| 电路数 | 3 | 适用产品/相关产品 | Centerline Soft Shell Pin & Socket Connector |
