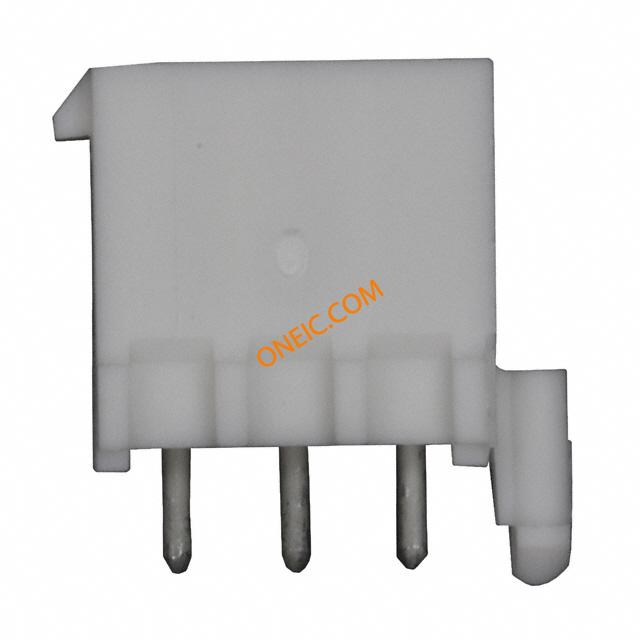

770873-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 3 POS 4.14mm Solder ST Thru-Hole 3 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 3POS VERT .163 AU Power to the Board VERT PIN HDR 3P 200 03P MINI UMNL HDR ASSY VO AU |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 200 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 9.5 A | ||
机械参数
| 颜色 | White | 间距 | 0.163" (4.14mm) |
| 宽度 | 9.83 | 长度 | 9.83 |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 壳体颜色 | 白色 | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 引脚数 | 3 | 排数 | 1 |
| 封装形式 | Receptacle | 高度（英寸） | 13.49 |
| 触头材料 | Brass | 壳体材料 | Polyamide (PA) |
| 安装特性 | 板锁 | 包装数量 | 200 |
| 面板安装类型 | 通孔 - 焊接 | 端接样式 | Solder Lug |
| 第一触头极性 | Pin (Male) | 触点数 | 3 |
| 位数 | 3 | 兼容外壳尺寸（如TM-700等） | 插头护套 |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡铅 |
| 典型触点布局 | 直插式 | 端子柱长度 | 4.25 |
| 接触镀层厚度 | 30µin (0.76µm) | 静电放电屏蔽 | 不带 |
产品信息
| 产品特性 | Board Lock | 产品子类型 | Headers |
| 应用细节 | Power | 装配配置 | Without |
| 加载位置数 | All | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
