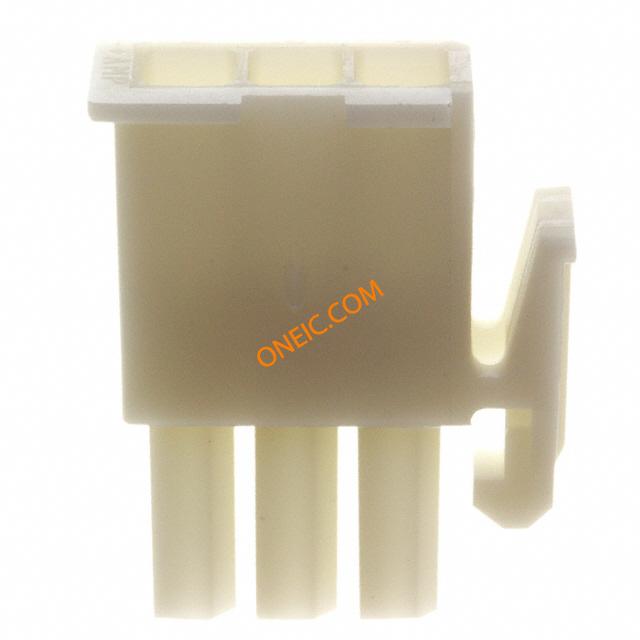

172166-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 3 POS 4.2mm Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 3POS MINI UNIV-MATE 3 way cable plug Min Mate-N-Lok Pin & Socket Connectors 3P PLUG MINI UNIV M-N-L Conn Housing PL 3 POS 4.2mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 34.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR HOUSING, PLUG, 3 WAY, NYLON Connector,SoftShell;3;600VAC;Plug;In-Line;Nylon;Plug;Natural Plug; wire-board; male/female; w/o terminals; 4.14mm; PIN:3; 600V Pin housing 4.14 mm Poles 1 x 3 Single row / Free hanging/cable mount / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 172166-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 1 行 4.2mm 节距 3 路 直 公 压接连接器外壳 3 CIR UNIV M-N-L PLUG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 工作电压 | :600V | 最大额定电流 | 9.5 A |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK |
机械参数
| 颜色 | Natural | 深度 | 23.7mm |
| 间距 | 4.2 mm | 长度 | :23.7mm |
| 重量 | 0.001 | 材料（通用） | :Nylon |
| 锁定类型 | Positive Lock | 包装方式 | Bulk |
| 触头类型 | Male or Female | 柱间距 | 4.14mm |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 1 |
| 锁定特性 | lock | 壳体材料 | Nylon |
| 包装数量 | One Piece Housing | 连接器 - 电缆 | plug |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Clear | 触点数 | 3 |
| 接触件端接 | Crimp | 位数 | 3 |
| 中心触点材料 | 4.14 [.163] | 典型触点布局 | In-Line |
| 接触镀层厚度 | 0.99 [0.039] | 线规或范围 - AWG | 30-16 |
| 第一连接器安装特征 | 3x1 | ||
产品信息
| SPG | 5 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | PL |
| 系列 | MATE-N-LOK | 已删除 | Compliant |
| 产品子类型 | Housing | 适配器系列 | Mini Universal MATE-N-LOK |
| 单元数量 | 1 | 模块/板类型 | No |
| 电路数 | 3 | 适用产品/相关产品 | Wire-to-Board Connector |
环境参数
| 工作温度 | -20C to 105C | ||
