794185-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 4.14mm Crimp ST Individual CONN CAP 2POS MINI UNIV-MATE 2 Housing,cap,mini Mate-n-lok,1 row,2 Way Pin & Socket Connectors CONN CAP 2 POS Conn Housing RCP 2 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG AND SOCKET CONNECTOR HOUSING Housing,cap,miniMate-n-lok,1row,2Way Crimp housing Pitch4.14 mm Poles 1 x 2 MATE-N-LOK II Mini Universal, 794185-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 4.14mm 节距 2 路 直 母 压接连接器外壳 02P MINI UMNL2 CAP HSG UL94V0 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 800 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9.5 A |
机械参数
| 颜色 | Natural | 深度 | 24.51mm |

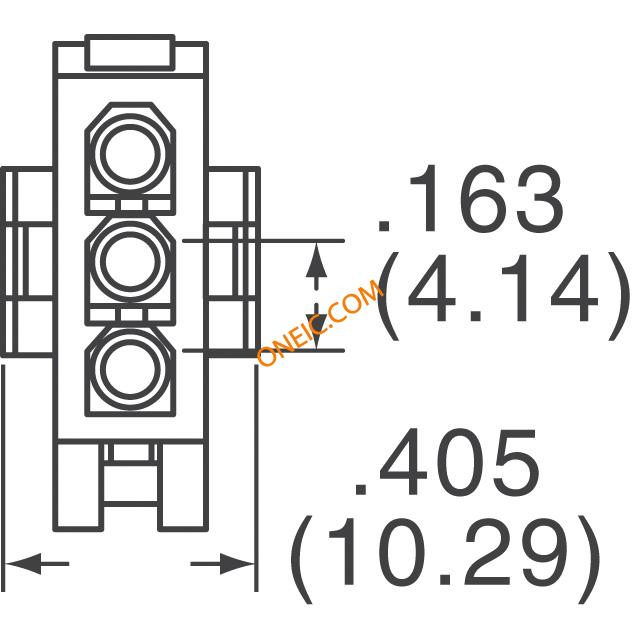

| 间距 | 4.14 mm | 宽度 | 10.29mm |

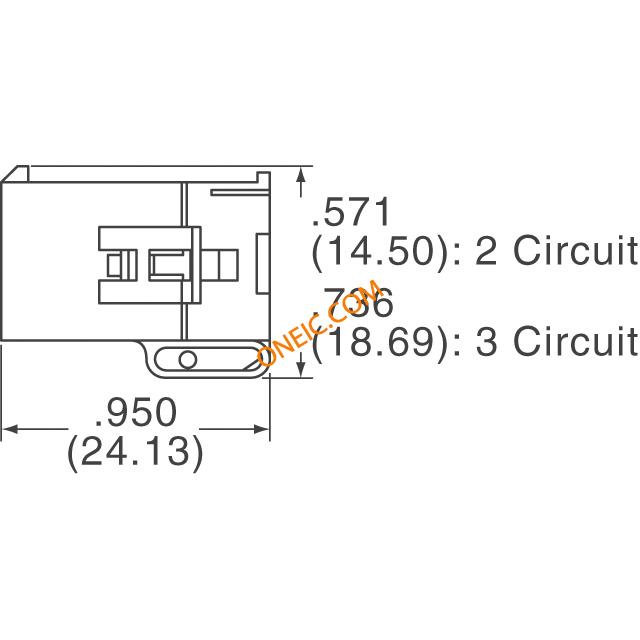

| 长度 | 14.5mm | 重量 | 0.000001 |
| 包装方式 | Bulk | 排间距 | 0.163" (4.14mm) |
| 触头类型 | Male or Female | 基体材料 | :Nylon |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | TinnedBrass | 紧固类型 | Locking Ramp |
| 安装样式 | Free Hanging | 排数 | 1 |
| 线缆终端 | :Free Hanging | 壳体材料 | Nylon |
| 主要材料 | Connector | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | MATE-N-LOK |
| CAD图纸 | 3D CAD Model | 制造商全称 | MATE-N-LOK |
| 产品子类型 | Receptacle Housings | 适用产品/相关产品 | Centerline Soft Shell Pin & Socket Connector |
文档与媒体
相关型号
1-794226-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 22-26AWG GOLD CRIMP Pin & Socket Connectors PIN CONTACT 26-22AWG Gold 1-794226-0 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2PinLoose PieceWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 26-22AWG, CRIMP Crimp pin 9.5 A Male 26...22 AWG, 1-794226-0, TE Connectivity MINI UMNL2 PIN 26-22AWG LP LF
1-794230-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 16-20AWG GOLD CRIMP Pin & Socket Connectors PIN CONTACT 20-16AWG Gold Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = Loose PieceWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 PIN 20-16AWG LP LF
794228-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 18-22AWG GOLD CRIMP Pin & Socket Connectors MINI UMNL2 PIN 22-18 AWG AU LP .163" Centerline, 600 V, 9.5 A max. Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = Loose PieceWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
794220-1
te connectivity / amp

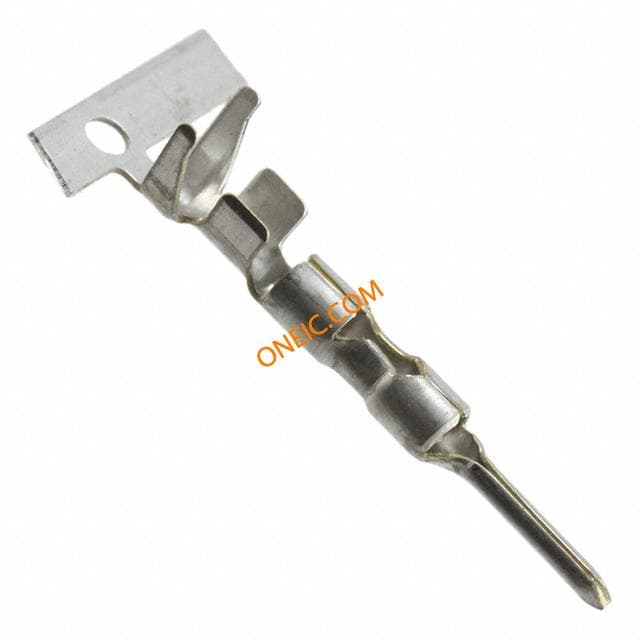

Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN MINI-UMNL2 22-18AWG TIN Mate-n-lok,contact,pin,0.30-0.90mm² Power to the Board UMNL SOK 20-14 .0126 Reel of 4500 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = StripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Mate-n-lok,contact,pin,0.30-0.90mm² Miniature Universal MATE-N-LOK 22-18 AWG Wire to Cable Crimp Pin Contact TE Connectivity Mini-Universal MATE-N-LOK II 系列 公 压接接线端子, 压接, 镀锡镀镍触点 MINI UMNL2 PIN 22-18 AWG SN
1-794222-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 16-20AWG MINI-U M-N-L2 Pin & Socket Connectors PIN 16-20 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = StripWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONN PIN 16-20AWG MINI UMNL2 PIN 20-16AWG AU LF
794229-3
te connectivity / amp

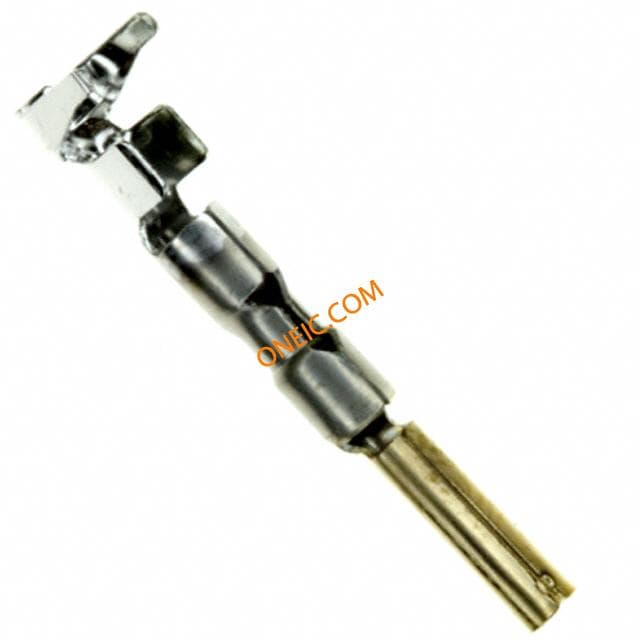

Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 18-22AWG GOLD CRIMP Power to the Board SOCKET CONTACT 22-18 2000 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketLoose PieceWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 22-18 AWG AU LP
1-794221-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SCKT 18-22AWG MINI-U M-N-L2 Pin & Socket Connectors MUMNL2 SKT 22-18 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketPackaging Method = StripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 22-18AWG AU LF
794184-1
te connectivity / amp
Conn Housing PL 2 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 2POS MINI UNIV-MATE 2 Housing,plug,mini Mate-n-lok,1 row,2 Way Pin & Socket Connectors CONN PLUG 2 POS Conn Housing PL 2 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING IN-LINE, 2WAY HOUSING,PLUG,MINI-UNIVERSALMATE-N-LOK2,2POSITION,FREEHANGING,IN-LINE Crimp housing Pitch4.14 mm Poles 1 x 2 MATE-N-LOK II Mini Universal, 794184-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 4.14mm 节距 2 路 直 公 压接连接器外壳 02P MINI UMNL2 PLUG HSG UL94V0
794225-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG GOLD CRIMP
794237-1
te connectivity / amp
Conn Housing PL 2 POS 4.14mm Crimp ST Cable Mount .163" Centerline, 600 V, 9.5 A max. CONN PLUG HOUSING 2POS MINI-UMNL Pin & Socket Connectors 02P MINI UMNL2 PLUG HSG UL94V2 Conn Housing PL 2 POS 4.14mm Crimp ST Cable Mount Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 02P MINI UMNL2 PLUG HSG UL94V2
1-794217-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG MINI U MNL Pin & Socket Connectors MINI UMNL2 SOK 30-26 Contact SKT Crimp ST Cable Mount Strip Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
1-794216-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 26-30AWG MINI-U M-N-L Pin & Socket Connectors MINI UMNL2 PIN 30-26 MINI UMNL2 PIN 30-26AWG AU LF
794224-1
te connectivity / amp

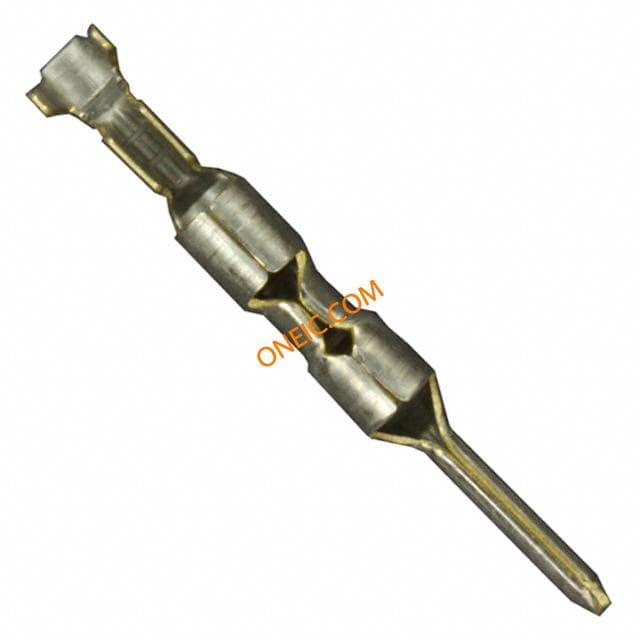

Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 26-30AWG TIN CRIMP Contact Crimp Pin 30-26AWG Mate-n-Lok Pin & Socket Connectors PIN CONTACT 30-26AWG Tin 794224-1 Contact PIN Crimp ST Cable Mount Loose Piece Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Crimp pin 9.5 A Male 30...26 AWG, 794224-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 公 压接接线端子, 压接, 镀锡触点 MINI UMNL2 PIN 30-26 AWG SN LP
1-794219-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SCKT 22-26AWG MINI-U M-N-L2 Pin & Socket Connectors SCKT 26-30 AWG 1-794219-0 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketStripWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UNML2 SOK 26-22 AWG AU LF
1-794231-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 16-20AWG GOLD CRIMP Pin & Socket Connectors SOCKET CON 20-16AWG Gold Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketPackaging Method = Loose PieceWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINIUMNL2LP,MINIUMNL2SCKT20-16AWGLPA MINI UMNL2 SCKT 20-16AWG LP A
794231-1
te connectivity / amp

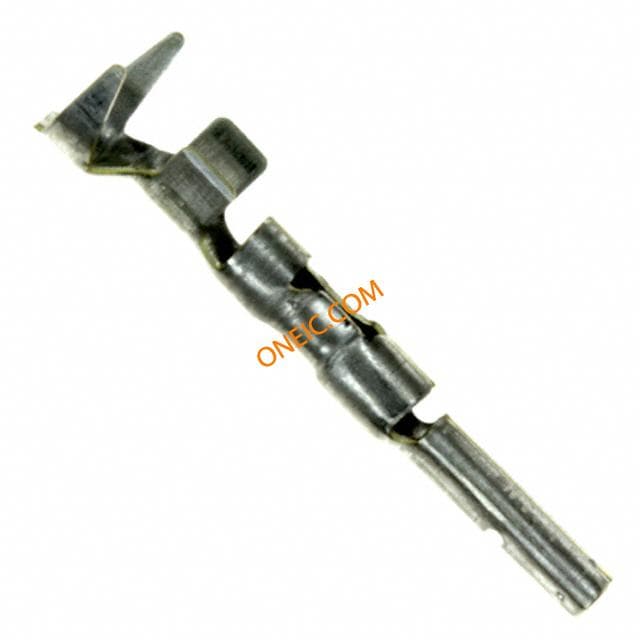

Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 16-20AWG TIN CRIMP Contact,crimp,rec,mini Matenlok,20-16awg Pin & Socket Connectors SOCKET CON 20-16AWG Tin Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketLoose PieceWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CRIMP SOCKET, 0.5-1.2MM MINIUMNL2LP,MINIUMNL2SCKT20-16AWGLPSN Miniature Universal MATE-N-LOK II 20-16 AWG Wire to Cable Crimp Socket Contact TE Connectivity Mini-Universal MATE-N-LOK II 系列 母 压接接线端子, 压接, 镀锡触点 MINI UMNL2 SCKT 20-16AWG LP SN
794217-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 30-26AWG TIN Pin & Socket Connectors MINI UMNL2 SOK Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketStripWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 30-26 AWG SN
1-794220-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Pin & Socket Connectors MINI UMNL2 PIN 22-18 .163" Centerline, 600 V, 9.5 A max. CONN PIN 18-22AWG MINI-U M-N-L2 1-794220-0 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2PinStripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 PIN 22-18 AWG AU
794225-1
te connectivity / amp

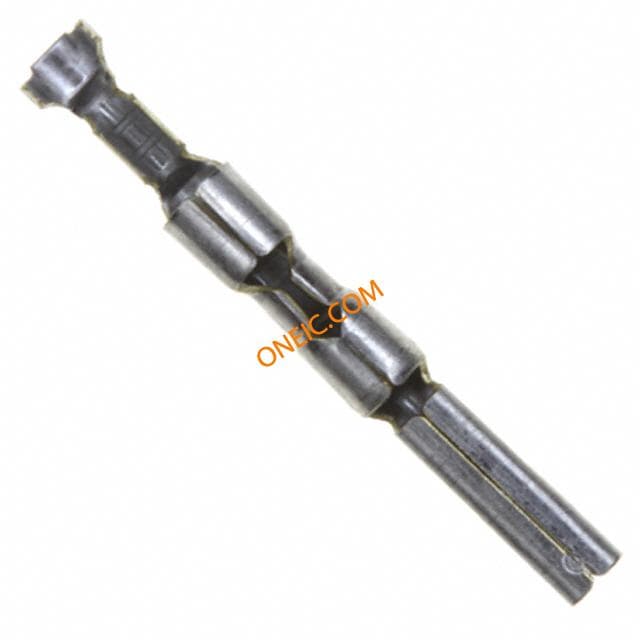

Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG TIN CRIMP Pin & Socket Connectors SOCKET CON 30-26AWG Tin Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketLoose PieceWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Series Crimp socket 9.5 A Female 30...26 AWG, 794225-1, TE Connectivity MINI UMNL2 SOK 30-26 AWG SN LP
794226-3
te connectivity / amp

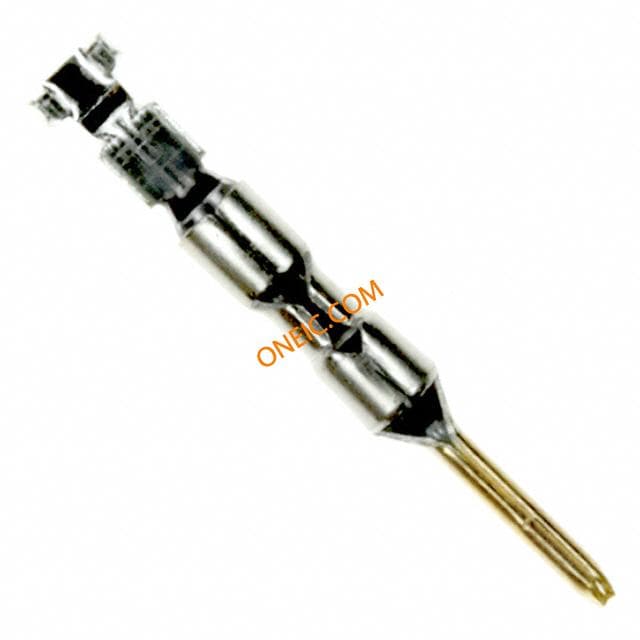

Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 22-26AWG GOLD CRIMP Pin & Socket Connectors MINI 2PIN CONTACT UMNL 26-22 AWG AU Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = PinCrimp Contact Termination TypeMini-Universal MATE-N-LOK 2Applies To WireSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
