点击放大查看

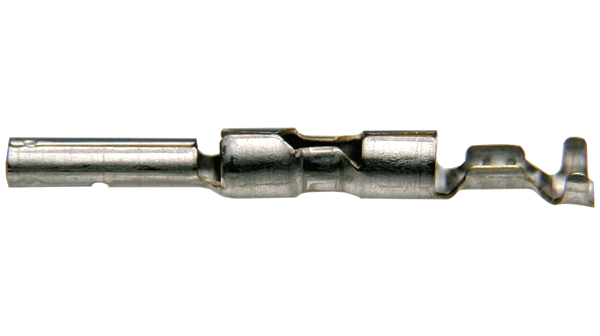

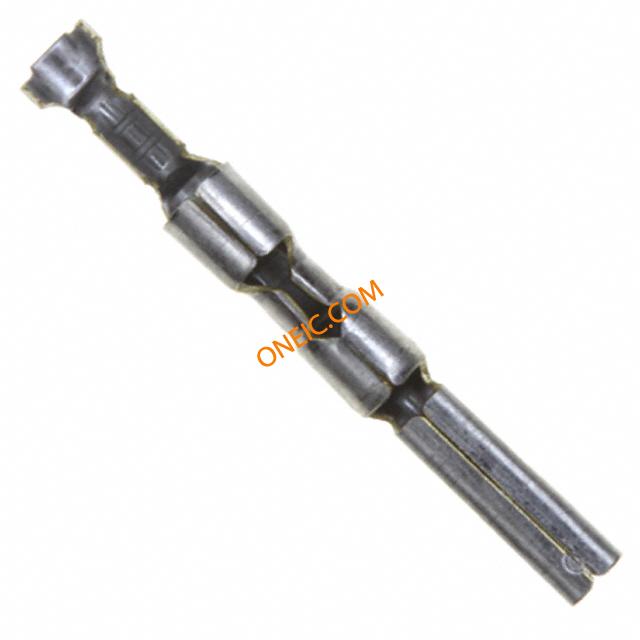

794225-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG TIN CRIMP Pin & Socket Connectors SOCKET CON 30-26AWG Tin Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketLoose PieceWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Series Crimp socket 9.5 A Female 30...26 AWG, 794225-1, TE Connectivity MINI UMNL2 SOK 30-26 AWG SN LP |
| 分类 |
商业参数
| 其他名称 | A28808 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9.5 A |
机械参数
| 重量 | 0.018 | 包装方式 | Bulk |
| 导线线规 | 26-30 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin |
| 安装样式 | Snap In | 触头材料 | Brass |
| 壳体材料 | Nylon | 端接样式 | Quick Connect |
| 第一触头极性 | Socket (Female) | 触点数 | 1 |
| 接触件端接 | Crimp | 线规或范围 - AWG | 30-26 |
| 线规或范围 - mm² | :0.12mm² | 外径-未扩张 | :1.27mm |
产品信息
| 连接器性别 | SKT | 系列 | Mate-N-Lok II |
| 产品子类型 | Receptacle Housings | 适用产品/相关产品 | :Mini-Universal MATE-N-LOK Connectors |
文档与媒体
