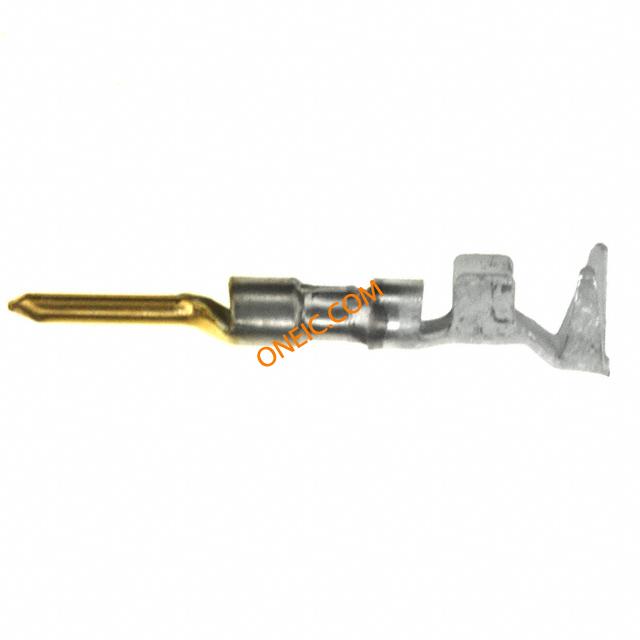

1-794230-0

点击放大查看

1-794230-0

制造商
TE Connectivity Ltd.
描述Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 16-20AWG GOLD CRIMP Pin & Socket Connectors PIN CONTACT 20-16AWG Gold Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = Loose PieceWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 PIN 20-16AWG LP LF
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1000

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
UL档案号E28476CSA档案号LR 7189
标准编号CSA, ULCSA分类已认证
认证机构标志是

电气参数

额定电压600 V供电电压600
最大额定电流9.5 A

机械参数

镀层锡包装方式Bulk
电缆类型分离式导线导线线规16-20 AWG
端接方式Crimp触头类型Power
插针或插孔Pin释放力不带
连接器类型Connector Power接触镀层Gold
壳体镀层Nickel插入件材料黄铜
触头材料Brass包装数量1000
端接样式Crimp第一触头极性Pin (Male)
适用端子尺寸No接触件端接Crimp
绝缘直径2.01 – 3.2 mm [ .079 – .126 in ]兼容外壳尺寸（如TM-700等）插头或帽护套
触点镀层哑光接触件表面处理 - 配合锡
法兰上方插针尺寸1 mm [ .039 in ]接触镀层厚度30µin (0.76µm)
线规或范围 - AWG20-16护套（绝缘）厚度1.27 µm [ 50 µin ]

产品信息

备注这些端子仅可用于小型通用 MATE-N-LOK 2 插头或帽护套。连接器性别PIN
系列Mate-N-Lok II产品子类型Contacts
应用细节Power

环境参数

测试温度标准件 - 非灼热丝工作温度-55 – 105 °C [ -67 – 221 °F ]

文档与媒体

在线文档
1-794230-0?RQPN=1-794230-0
