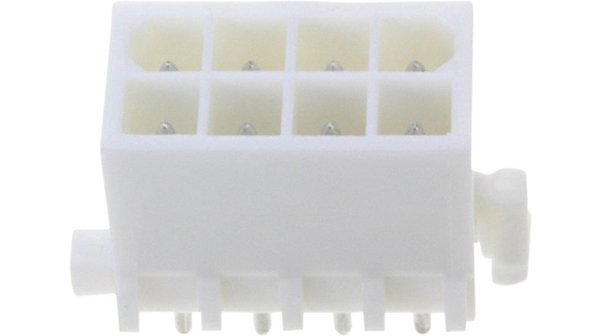

1-794065-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 8 POS 4.14mm Solder ST Thru-Hole 8 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 8POS STR DL .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 8 Way Straight Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 8 POS TIN DUAL ROW Conn Power HDR 8 POS 4.14mm Solder ST Thru-Hole 8 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 84.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING VERTICAL, 8WAY MINI-UNIVM-N-LHDRS,08PMINIUMNLHDRW/DHSN Pin header Pitch4.14 mm Poles 2 x 4 straight MATE-N-LOK Mini Universal, 1-794065-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 8路 直 PCB 针座, 焊接端接, 9.5A , 通孔 08P MINI UMNL HDR W/DH SN |
| 分类 |
商业参数
| 商标名 | MATE-N-LOK | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL, VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 量程（°/s） | :TE - Mini-Universal MATE-N-LOK Series | 测试电压 | :1500V |
| 额定电压 | 600 V ac | 开关功能 | Latched |
| 最大额定电流 | 9.5A | 最大触点电流 | :10.5A |
| 绝缘电阻 | :100Mohm | 最小供电电压 | 600VAC |
机械参数
| 颜色 | White | 深度 | 11.88 mm |
| 间距 | 4.14 mm | 高度 | 14.25 mm |
| 重量 | 0.0223 | 包装方式 | Bulk |
| 排间距 | 0.163" (4.14mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 23.24 mm |
| 主要材料 | InterconnectSystem | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :White |
| 触点数 | 8 | 接触件端接 | :Through Hole Vertical |
| 位数 | 8 | 接触镀层厚度 | 150µin (3.81µm) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | MATE-N-LOK | 产品特性 | Board Lock |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Headers |
| 端口数 | 1 Port | 加载位置数 | All |
环境参数
| 工作温度 | :65°C | ||
