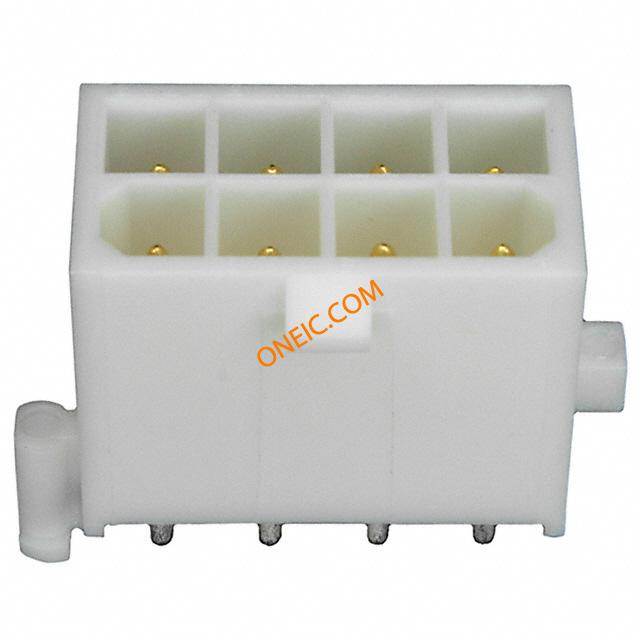

1-794073-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 8 POS 4.14mm Solder ST Thru-Hole 8 Terminal 1 Port Headers & Wire Housings HEADER 8 POS GOLD DUAL ROW .163" Centerline, 600 V, 9.5 A max. CONN HEADER 8POS VERT .163 GOLD TE Connectivity MATE-N-LOK Series 4.14mm Pitch 8 Way Straight Heavy Duty Power Connector, Solder Termination, 9.5A Conn Power HDR 8 POS 4.14mm Solder ST Thru-Hole 8 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 84.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HDR,PLUG,8WPINCONTACT TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 8路 直 PCB 针座, 焊接端接, 9.5A , 通孔 08P MINI UMNL HDR W/O DH AU LF |
| 分类 |
商业参数
| 商标名 | MATE-N-LOK | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| UL等级 | 获得认可 | 零件状态 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA分类 | 已认证 | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 是 | ||
电气参数
| 额定电压 | 600 V | 开关功能 | Latched |
| 供电电压 | 600 | 最大额定电流 | 9.5 A |
| 最小输入电压 | 600VAC | 最小供电电压 | 600VAC |
机械参数
| 颜色 | White | 间距 | 4.14 mm |
| 宽度 | 9.83 | 高度 | 14.25 mm |
| 长度 | 18.11 | 密封型 | Not Sealed |
| 包装方式 | Bulk | 壳体颜色 | 白色 |
| 方向 | 直 | 排间距 | 4.14 mm |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 引脚数 | 8 |
| 排数 | 2 | 高度（英寸） | 13.49 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 安装特性 | 板锁 | 包装数量 | 200 |
| 面板安装类型 | 通孔 - 焊接 | 端接排数 | 焊接 |
| 端接样式 | Solder Pin | 第一触头极性 | Pin (Male) |
| 触点数 | 8 | 位数 | 8 |
| 外壳尺寸-插件 | 插头 | 兼容外壳尺寸（如TM-700等） | 插头护套 |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 端子柱长度 | 3.69 mm [ .145 in ] | 接触镀层厚度 | 30µin (0.76µm) |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | Mini Universal Mate-N-Lok | 覆盖范围 | 覆盖 |
| 产品特性 | Board Lock | 产品子类型 | Headers - Shrouded |
| 端口数 | 1 | 应用细节 | Power |
| 装配配置 | Without | 加载位置数 | All |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
| 封装热阻 | .062 mm [ 1.57 in ] | ||
