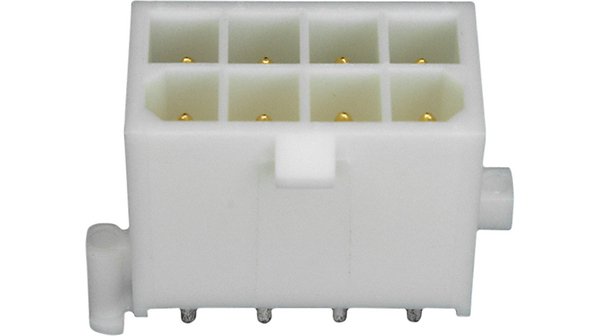

1-794073-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power PIN 8 POS 4.14mm Solder ST Thru-Hole 8 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 8POS VERT .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 8 Way Straight Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 8 POS TIN DUAL ROW Conn Power PIN 8 POS 4.14mm Solder ST Thru-Hole 8 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 84.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, PLUG, 8POS, 4.14MM HDR,PLUG,8WPINCONTACT Pin header Pitch4.14 mm Poles 2 x 4 straight MATE-N-LOK Mini Universal, 1-794073-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 8路 直 PCB 针座, 焊接端接, 9.5A , 通孔 08P MINI UMNL HDR W/O DH SN LF |
| 分类 |
商业参数
| 商标名 | MATE-N-LOK | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 200 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 600 V ac | 开关功能 | Latched |
| 最大额定电流 | 9.5A | 最小输入电压 | 600VAC |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | White | 间距 | 4.14 mm |
| 高度 | 14.25 mm | 重量 | 0.002 |
| 包装方式 | Bulk | 排间距 | 0.163" (4.14mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Nickel | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 8 | 接触件端接 | :Through Hole Vertical |
| 位数 | 8 | 接触镀层厚度 | 150µin (3.81µm) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | MATE-N-LOK | 产品特性 | Board Lock |
| 产品子类型 | Headers | 端口数 | 1 |
| 加载位置数 | All | ||
文档与媒体
相关型号
770579-1
te connectivity / amp
Conn Housing M 8 POS 4.14mm Crimp ST Cable Mount Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 8POS MINI UNIV-MATE Male Compact Power Connector Cable Mount,9.5A 600V ac/dc Pin & Socket Connectors PLUG 8P Conn Housing M 8 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 84.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG HOUSING, 8WAY Connector,SoftShell;8;600VAC;Plug;Double-Row;Nylon;Plug;White Plug; wire-board; male/female; w/o terminals; 4.14mm; PIN:8; 600V Pin housing Pitch4.14 mm Poles 2 x 4 Double row / Free hanging/cable mount / straight / accepts male or female contacts MATE-N-LOK, 770579-1, TE Connectivity TE Connectivity 线对线连接器 公, 电缆安装安装, 9.5A 600 V 交流/直流, -55 → +105 °C 08P MINI UMNL PLUG HSG
794821-1
te connectivity / amp

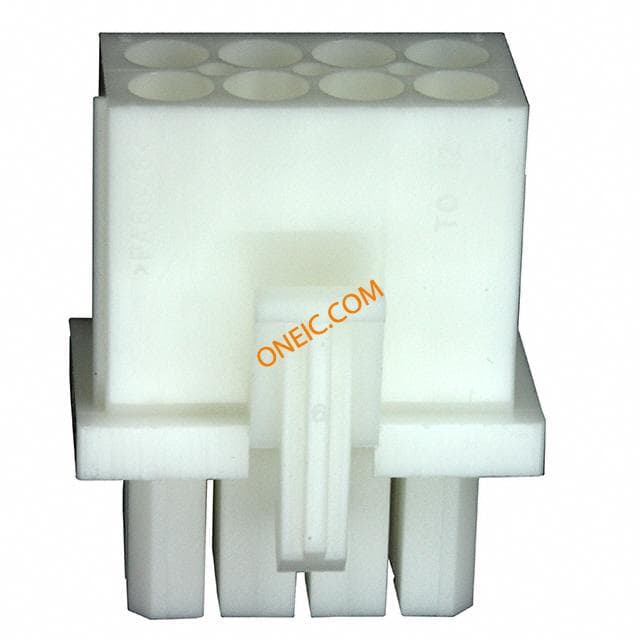

Conn Housing PL 8 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 8POS SEALED MINI UMNL Male Compact Power Connector Plug,9A 600V ac Pin & Socket Connectors PLUG 8P Conn Housing PL 8 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK SealedNumber of Circuits = 84.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG, SEALED, 8WAY Connector;Nylon(Housing);8;White;RoHSCompliant,ELVCompliant Crimp housing Pitch4.14 mm Poles 2 x 4 Double row / accepts male or female contacts / straight MATE-N-LOK Mini Universal Sealed, 794821-1, TE Connectivity TE Connectivity 线对线连接器 插头 公, 9A 600 V 交流
