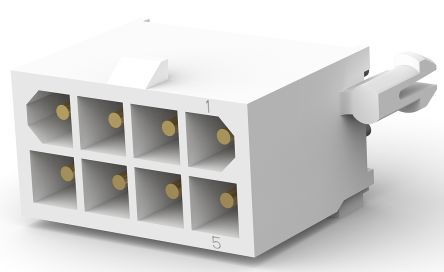

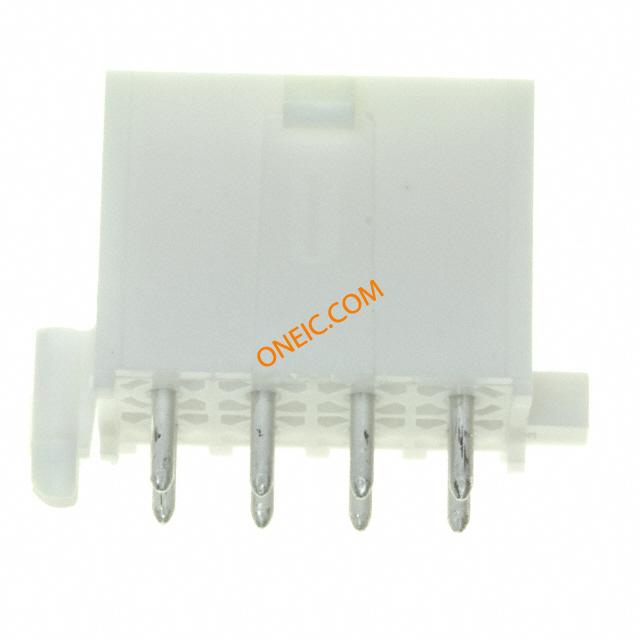

1-794065-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board PIN 8 POS 4.14mm Solder ST Thru-Hole .163" Centerline, 600 V, 9.5 A max. CONN HEADER 8PS STR DL .163 GOLD Headers & Wire Housings HEADER 8 POS GOLD DUAL ROW Conn Power PIN 8 POS 4.14mm Solder ST Thru-Hole 8 Terminal 1 Port Conn Power PIN 8 POS 4.14mm Solder ST Thru-Hole 8 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 84.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HEADER, 8WAY MINI-UNIVM-N-LHDRS,08PMINIUMNLHDRW/DHAULF TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 8路 (2排) 直 PCB 针座, 焊接端接, 9.5A , 通孔 08P MINI UMNL HDR W/DH AU LF |
| 分类 |
商业参数
| 商标名 | MATE-N-LOK | 其他名称 | A32459 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 量程（°/s） | :TE - Mini-Universal MATE-N-LOK Series | 额定电压 | 600 V |
| 开关功能 | Latched | 最大额定电流 | 9.5 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | White | 深度 | :9.83mm |
| 间距 | 4.14 mm | 宽度 | :18.11mm |
| 高度 | 14.25 mm | 长度 | :13.49mm |
| 重量 | 0.001 | 直径 | Not Required mm |
| 材料（通用） | :Nylon | 包装方式 | Bulk |
| 排间距 | 0.163" (4.14mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | White |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 主要材料 | InterconnectSystem | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :White |
| 触点数 | 8 | 接触件端接 | :Through Hole Vertical |
| 位数 | 8 | 安装孔直径 | :3.18mm |
| 接触镀层厚度 | 30µin (0.76µm) | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Wire to Board | 连接器性别 | PIN |
| 系列 | Mini Universal Mate-N-Lok | 产品特性 | Board Lock |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Headers |
| 端口数 | 1 Port | 加载位置数 | All |
