点击放大查看

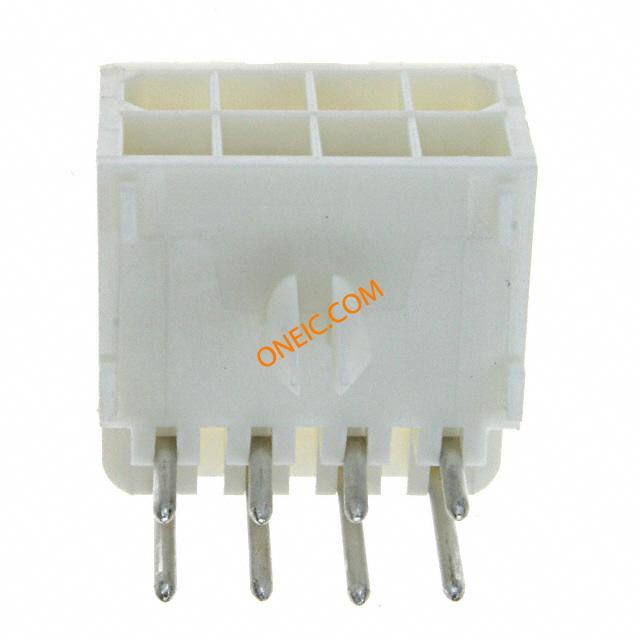

1-770970-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 8 POS 4.14mm Solder RA Thru-Hole 8 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 8POS R/A DL .163 TIN Headers & Wire Housings HEADER 8 POS R/A TIN DUAL ROW Conn Power HDR 8 POS 4.14mm Solder RA Thru-Hole 8 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 84.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING R/A, 8WAY MINI-UNIVM-N-LHDRS,08PMINIUMNLR/AHDRASSYSN 08P MINI UMNL R/A HDR ASSY SN |
| 分类 |
商业参数
| 商标名 | MATE-N-LOK | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL, VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 量程（°/s） | :TE - Mini-Universal MATE-N-LOK Series | 测试电压 | :1500V |
| 额定电压 | 600 V | 开关功能 | Latched |
| 最大额定电流 | 9.5 A | 最大触点电流 | :10.5A |
| 绝缘电阻 | :100Mohm | 最小供电电压 | 600VAC |
机械参数
| 颜色 | White | 深度 | 11.86 mm |
| 间距 | 4.14 mm | 重量 | 0.029 |
| 包装方式 | Bulk | 排间距 | 0.163" (4.14mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 18.14 mm | 主要材料 | InterconnectSystem |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :White | 触点数 | 8 |
| 接触件端接 | :Solder | 位数 | 8 |
| 接触镀层厚度 | 150µin (3.81µm) | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | Mini Universal Mate-N-Lok | 产品特性 | Board Lock |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Headers |
| 端口数 | 1 Port | 加载位置数 | All |
环境参数
| 工作温度 | :65°C | ||
文档与媒体
相关型号
189727-1
te connectivity / amp
EXTRACTION TOOL Hand Tools EXTRACTION TOOL MiniUniversal MATE-N-LOK Extraction tool EXTRACTION TOOL FOR MINI-UNIVERSAL MATE-N-LOK CONTACTS Extraction Tool For Mini Universal Mate-N-Lock Contacts TOOL,CONTACTEXTRACTION Tool: for demounting of terminals; terminals Ejector tool for M-UMNL, 189727-1, TE Connectivity

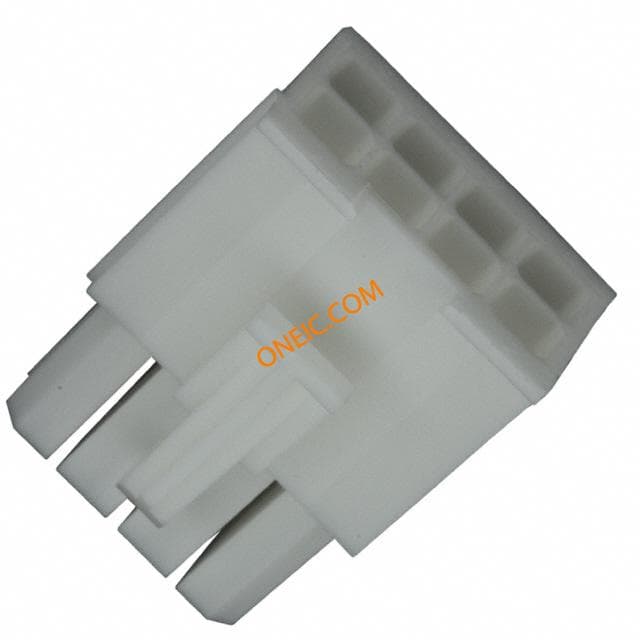

770579-1
te connectivity / amp
Conn Housing M 8 POS 4.14mm Crimp ST Cable Mount Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 8POS MINI UNIV-MATE Male Compact Power Connector Cable Mount,9.5A 600V ac/dc Pin & Socket Connectors PLUG 8P Conn Housing M 8 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 84.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG HOUSING, 8WAY Connector,SoftShell;8;600VAC;Plug;Double-Row;Nylon;Plug;White Plug; wire-board; male/female; w/o terminals; 4.14mm; PIN:8; 600V Pin housing Pitch4.14 mm Poles 2 x 4 Double row / Free hanging/cable mount / straight / accepts male or female contacts MATE-N-LOK, 770579-1, TE Connectivity TE Connectivity 线对线连接器 公, 电缆安装安装, 9.5A 600 V 交流/直流, -55 → +105 °C 08P MINI UMNL PLUG HSG
91529-1
te connectivity / amp
Assembly Tools, Certi Crimp II Tool Crimpers CERTICRIMP 2 SAHT MINI UMNL TOOL AHT 22-26 AWG MINI UMNL Mate-N-Lok crimp tool,26-22awg CRIMP TOOL, FOR UNI MATE-N-LOCK Crimper;SAHTRatchet;26-22AWG;MiniCPC,UniversalMiniMATE-N-LOK;CERTI-CRIMPII CERTI-CRIMP II Straight Action Hand Tool Crimping tool, 91529-1, TE Connectivity TE Connectivity CERTI-CRIMP II 系列 Mini-Universal MATE-N-LOK Contacts 压接工具 , 适用于26 → 22 AWG 线规格 CERTICRIMP 2,SAHT MINI UMNL

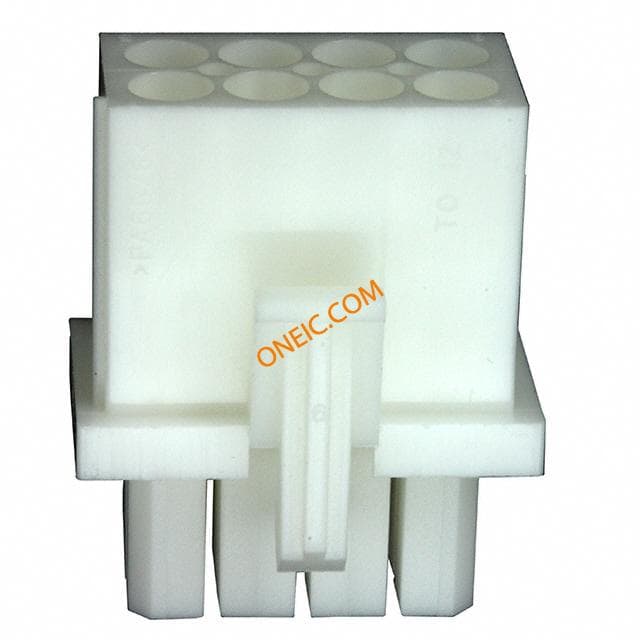

794821-1
