点击放大查看

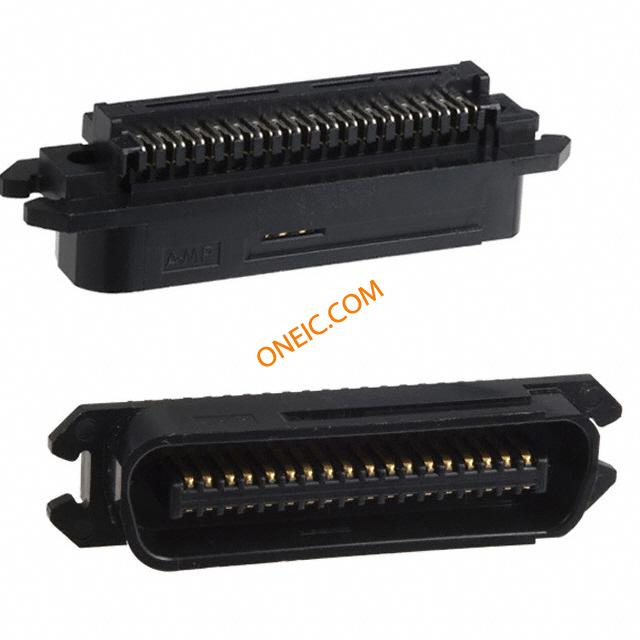

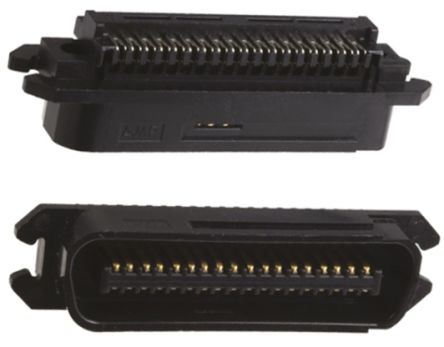

552274-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 PL 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Tray 2.16 [.085] IDC Connectors 36 CONTACTS, PLUG, CHAMP, BAIL I/O Connectors PLUG 36P BAIL LOCK 24-26 AWG 552274-1 Conn IEEE 488 PL 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 36Standard ProfilePlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, PLUG, 36POS, IDC/IDT TE Connectivity CHAMP-LOK 系列 2行 36路 2.159mm节距 公 IDC 连接器 , 电缆安装 ASSY, PLUG, 36 POS, B SLOT |
| 分类 |
商业参数
| 交货时间 | 28 Days | 子类别 | Connector Interface |
| 产品类别 | Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 间距 | 2.16 mm |
| 重量 | 0.005 | 包装方式 | Tray |
| 厚度 | Thin | 电缆类型 | 7 Strand, Solid |
| 铜缆类型 | B | 屏蔽类型 | No |
| 端接方式 | IDC | 第二连接器 | With |
| 外壳颜色 | Blue | 安装类型 | Cable Mount |
| 连接器类型 | Plug | 接触镀层 | Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel |
| 安装样式 | Cable | 排数 | 2 |
| 连接器样式 | PB | 锁定特性 | Bail Lock |
| 外形（宽 x 高） | Standard | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 包装数量 | Tray |
| 面板安装类型 | Without | 端接样式 | IDC |
| 触点数 | 36 | 接触件端接 | :IDC / IDT |
| 绝缘直径 | 1.14 [.045] Max. | 位数 | 36 |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - AWG | 0.20² [24] |
| 线规或范围 - mm² | 0.51-0.40 [24-26] | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | IEEE 488 | 连接器性别 | PL |
| 系列 | :Champ | 产品特性 | Bail Lock |
| 产品子类型 | Connector | ||
文档与媒体
相关型号
230238-1
te connectivity / amp
Assembly Tools, Extractor Tool Hand Tools EXTRACTOR CONTACT EXTRACTION TOOL EXTRACTOR Extraction Tool Body Ma
5554346-2
te connectivity / amp
Conn SCSI RCP 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port D-Sub Standard Connectors EMI RCPT ASSY 36POS SHLD 2.16 [.085] IDC Connectors CONN CHAMP 36 POS RECEPT BAIL Conn SCSI RCP 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Product Highlights:Connector Classification = IDCProduct Category = ConnectorsConnector36 PositionsReceptacleSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics WIRE-BOARD CONNECTOR, RCPT 36POS 2.16MM EMI RCPT ASSY, 36 POS, SHLD
554089-1
te connectivity / amp
Conn SCSI RCP 36 POS 1.27mm IDT RA Cable Mount 36 Terminal 1 Port Tray 2.16 [.085] IDC Connectors 36 PIN CHAMP LATCH RECEPT-BAIL I/O Connectors RECPT 36P PANEL MNT low profile plastic Conn SCSI RCP 36 POS 1.27mm IDT RA Cable Mount 36 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 36Low ProfileReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics TE Connectivity CHAMP Latch 系列 2行 36路 1.27mm节距 直角 母 IDC 连接器 , 电缆安装 RCPT ASSY,36 POS,PANEL MTG,LPF
5552241-1
te connectivity / amp
Conn IEEE 488 RCP 36 POS 2.16mm Solder ST Edge Mount 36 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN RECEPT CHAMP 36POS EDGE MT Headers & Wire Housings RECPT 36P SCREW/BAIL edge mount ASSY, RCPT, 36 POS, EDGE MTG ASSY, RCPT, 36 POS, EDGE MTG Search Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics
5552742-1
te connectivity / amp
Conn IEEE 488 RCP 36 POS 2.16mm Solder RA Thru-Hole 36 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN RECEPT CHAMP 36POS RT ANG I/O Connectors RECPT 36P STANDARD R.A. mnt selftapping 5552742-1 Conn IEEE 488 RCP 36 POS 2.16mm Solder RA Thru-Hole 36 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 36PCB Mount Style = Right AngleStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics TE Connectivity CHAMP 系列 36路 直角 2.16mm节距 印刷电路板安装 印刷电路板插座, 连接器 ASSY,RCPT,36 POSN,RTANG,PCB
229378-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Hand Tools ASSY MI-1TOOL 14-50P ASSY, MI-1 TOOL,STD 14-50 POSN Assy, MI-1 Tool,Std 14-50 Posn Standard 14-50 Position MI-1 Assembly Tool
229384-1
te connectivity / amp
Insertion / Extraction Tool Types, Standard Extraction Tool Hand Tools T-HANDLE INSERTION T-HANDLE WIRE INSERTION TOOL Insertion Tool, T-Grip INSERTION,HAND,T-GRIPFORCHAMPCONNECTORS Insertion tool, 229384-1, TE Connectivity
552241-1
te connectivity / amp
Conn IEEE 488 RCP 36 POS 2.16mm Solder ST Edge Mount 36 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors 36 CONTACTS,RECEPT,CHAMP,EDGE,MT Headers & Wire Housings RECPT 36P SCREW/BAIL edge mount Conn IEEE 488 RCP 36 POS 2.16mm Solder ST Edge Mount 36 Terminal 1 Port Product Highlights:Connector Type = Receptacle2.16 mm CenterlineCHAMP Product Line36 PositionsPCB Mount Style = Edge MountSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics
552314-1
te connectivity / amp
Conn IEEE 488 RCP 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Tray 2.16 [.085] IDC Connectors ASSY, RCPT, 36 POS, B SLOT I/O Connectors RECPT 36P 24-26 AWG Conn IEEE 488 RCP 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 36Standard ProfileReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics CHAMPIDCConnector;ScrewLockReceptacle;36Position
2-552475-1
te connectivity / amp
Conn IEEE 488 RCP 36 POS 2.16mm IDT RA Cable Mount 36Terminal 1Port Tray 2.16 [.085] IDC Connectors 36 CONTACTS, CHAMP RECEPTACLE I/O Connectors RECPT 36P PNL MNT 26-28 AWG Conn IEEE 488 RCP 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Tray Conn IEEE 488 RCP 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Tray Search Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics

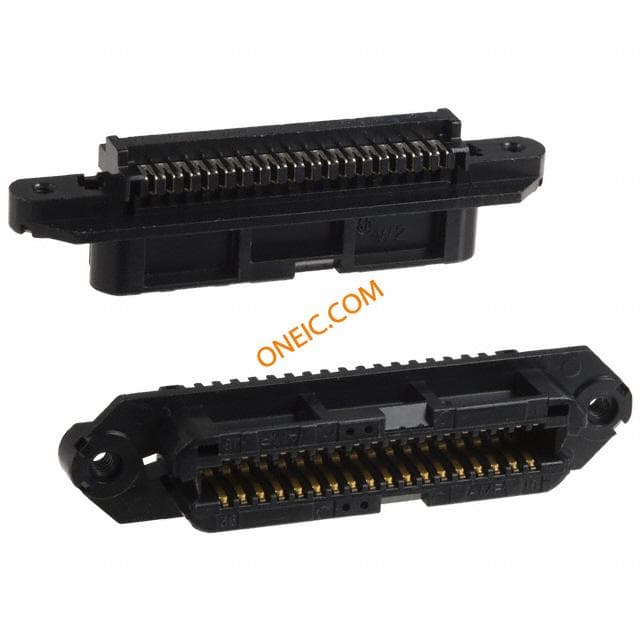

1319948
