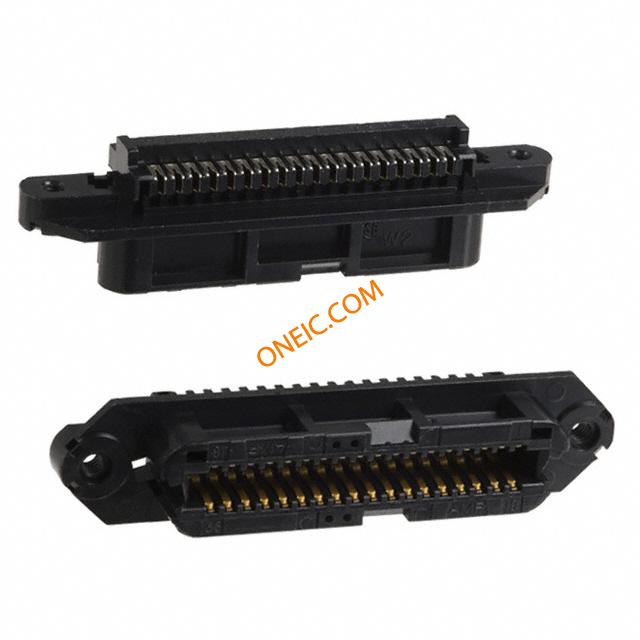

2-552475-1

点击放大查看

2-552475-1

制造商
TE Connectivity Ltd.
描述Conn IEEE 488 RCP 36 POS 2.16mm IDT RA Cable Mount 36Terminal 1Port Tray 2.16 [.085] IDC Connectors 36 CONTACTS, CHAMP RECEPTACLE I/O Connectors RECPT 36P PNL MNT 26-28 AWG Conn IEEE 488 RCP 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Tray Conn IEEE 488 RCP 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Tray Search Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics
分类
连接器解决方案圆形连接器工业圆形连接器
对参数有疑问？问 AI 助手

商业参数

交货时间98 Days其他名称A1537
子类别Connector Interface产品类别Connectors
标准包装数量Bulk工厂包装数量100

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

机械参数

间距2.16 mm包装方式Tray
厚度Thin电缆类型7 Strand
铜缆类型E屏蔽类型No
端接方式IDC第二连接器With
外壳颜色Yellow安装类型Cable Mount
连接器类型Receptacle接触镀层Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel
法兰特征Hollow, Unthreaded排数2
连接器样式RP锁定特性Bail Lock, Screwlocks
外形（宽 x 高）Standard包装数量Tray
面板安装类型With端接样式Screw
触点数36绝缘直径1.14 [.045] Max.
位数36接触镀层厚度30µin (0.76µm)
线规或范围 - mm²0.09² [28], 0.10² [27], 0.14² [26]

产品信息

备注RP Style is not compatible with integral locking latch receptacles类型IEEE 488
连接器性别RCP产品子类型Connector
