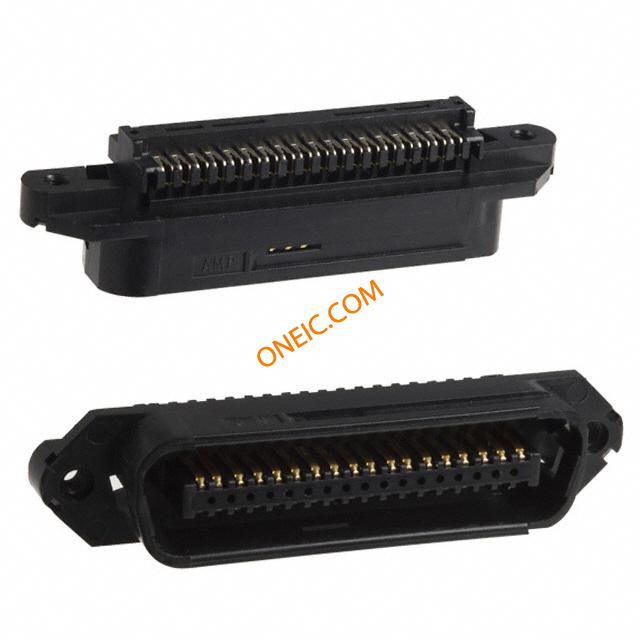

552444-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 PL 36 POS 2.16mm IDT RA Cable Mount 36Terminal 1Port Tray 2.16 [.085] IDC Connectors 36 CONTACT,CHAMP PLUG SCREW LOCK Conn IEEE 488 PL 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Tray Conn IEEE 488 PL 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Tray Search Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics |
| 分类 |
商业参数
| 交货时间 | 365 Days | 其他名称 | A1534 |
| 子类别 | Connector Interface | 产品类别 | Connectors |
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 间距 | 2.16 mm | 包装方式 | Tray |
| 厚度 | Thick | 电缆类型 | 7 Strand |
| 铜缆类型 | E | 屏蔽类型 | No |
| 端接方式 | IDC | 第二连接器 | With |
| 外壳颜色 | Yellow | 安装类型 | Cable Mount |
| 连接器类型 | Plug | 接触镀层 | Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel |
| 法兰特征 | Insert, Threaded (4-40) | 排数 | 2 |
| 连接器样式 | PS | 锁定特性 | Screwlocks |
| 外形（宽 x 高） | Standard | 包装数量 | Tray |
| 面板安装类型 | Without | 绝缘直径 | 1.14 [.045] Max. |
| 位数 | 36 | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - mm² | 0.09² [28], 0.10² [27], 0.14² [26] | ||
产品信息
| 类型 | IEEE 488 | 连接器性别 | PL |
| 产品子类型 | Connector | ||
