点击放大查看

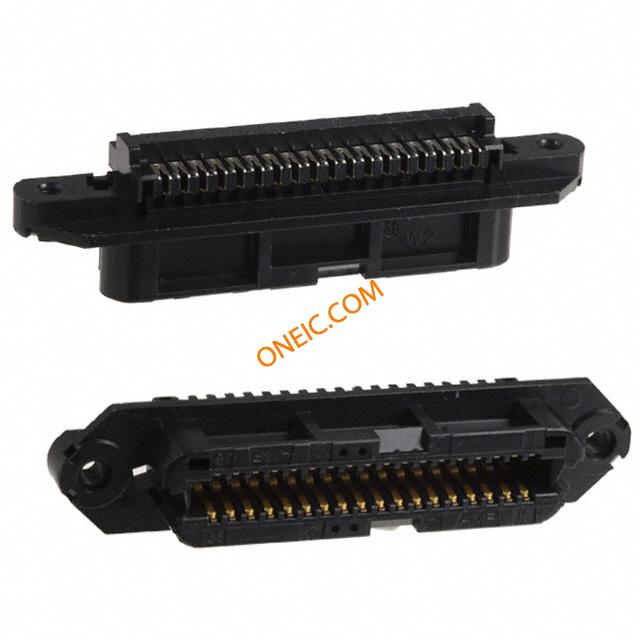

552314-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 RCP 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Tray 2.16 [.085] IDC Connectors ASSY, RCPT, 36 POS, B SLOT I/O Connectors RECPT 36P 24-26 AWG Conn IEEE 488 RCP 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 36Standard ProfileReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics CHAMPIDCConnector;ScrewLockReceptacle;36Position |
| 分类 |
商业参数
| 产品 | Micro Ribbon Connectors | 交货时间 | 98 Days |
| 子类别 | Connector Interface | 产品类别 | Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 连接器阻抗 | 螺钉锁, 螺钉锁, 释放锁 | ||
机械参数
| 间距 | 2.16 mm | 包装方式 | Tray |
| 屏蔽 | 否 | 厚度 | Thick |
| 壳体颜色 | 黑色 | 电缆类型 | 7 Strand, Solid |
| 导线线规 | 26-24AWG(Solid),24AWG(Stranded) | 铜缆类型 | B |
| 屏蔽类型 | No | 端接方式 | IDC |
| 螺纹尺寸 | 4-40 UNC 2B | 第二连接器 | With |
| 外壳颜色 | Blue | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel | 法兰特征 | Insert, Threaded (4-40) |
| 安装样式 | Edge | 排数 | 2 |
| 连接器样式 | RS | 插入件材料 | 铜合金 |
| 锁定特性 | Bail Lock, Screwlocks | 外形（宽 x 高） | Standard |
| 触头材料 | CopperAlloy | 壳体材料 | Thermoplastic |
| 总长度 | 2.685" | 包装数量 | Tray |
| 面板安装类型 | Without | 主要材料 | InterconnectSystem |
| 插针孔直径 | 0.85" | 端接样式 | Crimp |
| 线规 - 端部 | 24 | 触点数 | 36 |
| 绝缘直径 | 1.14 [.045] Max. | 位数 | 36 |
| 外壳材料及表面处理 | 蓝色 | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | 26 – 24 | 线规或范围 - mm² | 0.20² [24] |
产品信息
| 类型 | IEEE 488 | 连接器性别 | RCP |
| 产品特性 | IDC connectors | 制造商全称 | CHAMP-LOK |
| 产品子类型 | Connector | ||
