点击放大查看

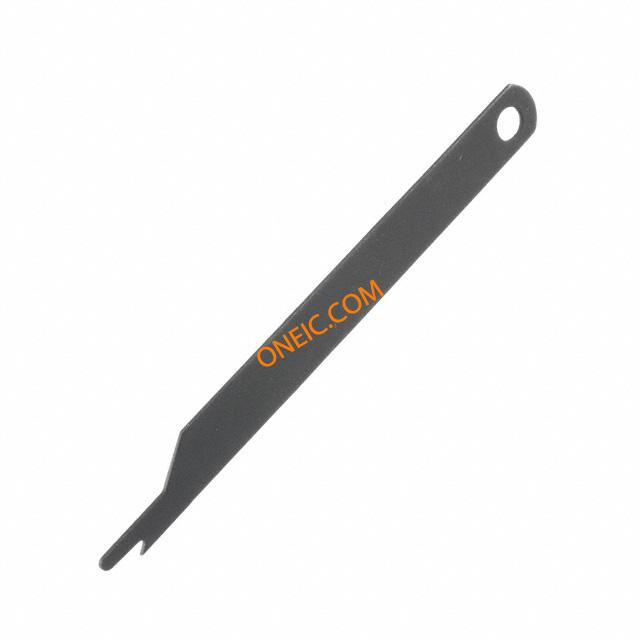

230238-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Assembly Tools, Extractor Tool Hand Tools EXTRACTOR CONTACT EXTRACTION TOOL EXTRACTOR Extraction Tool Body Ma |
| 分类 |
商业参数
| 产品 | Extraction Tools | 交货时间 | 52 Days |
| 子类别 | Assembly Tools | 产品类别 | Hand Tools |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Not Applicable | 海关税号 | 00000000 |
机械参数
| 深度 | 0.02 mm | 重量 | 0 |
| 材料（通用） | Steel | 总长度 | 76.2 mm |
产品信息
| 类型 | Extractor Tool | 系列 | CHAMP |
| 功能 | Replaces damaged contacts in the AMP CHAMP male and female connectors | 工具类型 | Insertion/Extraction Tool |
| 制造商全称 | CHAMP | 工具类型/特性 | Extraction/Insertion |
| 适用产品/相关产品 | AMP CHAMP connectors | ||
