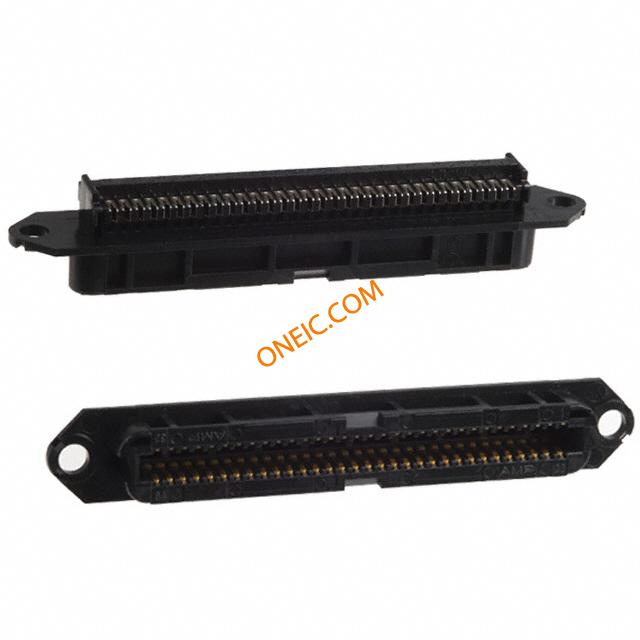

552315-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 RCP 64 POS 2.16mm IDT RA Cable Mount 64 Terminal 1 Port Tray 2.16 [.085] IDC Connectors ASSY, RCPT, 64 POS, B SLOT I/O Connectors RECPT 64P 24-26 AWG Conn IEEE 488 RCP 64 POS 2.16mm IDT RA Cable Mount 64 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 64Standard ProfileReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, RCPT, 64POS, IDC/IDT CHAMPIDCConnector;ScrewLockReceptacle;64Position 2.16 [.085] IDC Connectors; Connector Classification: IDC Product Category: Connectors Connector 64 Positions Receptacle TE Connectivity CHAMP-LOK 系列 2行 64路 2.159mm节距 母 IDC 连接器 , 电缆安装 |
| 分类 |
商业参数
| 产品 | Micro Ribbon Connectors | 交货时间 | 20 Days |
| 子类别 | Connector Interface | 产品类别 | Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 间距 | 2.16 mm |
| 重量 | 0.009 | 包装方式 | Tray |
| 厚度 | Thick | 电缆类型 | 7 Strand, Solid |
| 导线线规 | 26-24AWG(Solid),24AWG(Stranded) | 铜缆类型 | B |
| 屏蔽类型 | No | 端接方式 | IDC |
| 第二连接器 | With | 外壳颜色 | Blue |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel |
| 法兰特征 | Insert, Threaded (4-40) | 安装样式 | Cable |
| 排数 | 2 | 连接器样式 | RS |
| 锁定特性 | Bail Lock, Screwlocks | 外形（宽 x 高） | Standard |
| 触头材料 | Copper Alloy | 壳体材料 | Polyphenylene |
| 总长度 | 3.875" | 包装数量 | Tray |
| 面板安装类型 | Without | 主要材料 | InterconnectSystem |
| 插针孔直径 | 0.85" | 端接样式 | Wire |
| 触点数 | 64 | 接触件端接 | :IDC / IDT |
| 绝缘直径 | 1.14 [.045] Max. | 位数 | 64 |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - mm² | 0.20² [24] |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | IEEE 488 | 连接器性别 | RCP |
| 系列 | :Champ | 产品特性 | IDC connectors, blue dot designation |
| 制造商全称 | CHAMP-LOK | 产品子类型 | Connector |
文档与媒体
相关型号
5406049-1
te connectivity / amp
Conn IEEE 488 PL 64 POS 2.16mm IDT RA Cable Mount 64 Terminal 1 Port Loose Piece CONN CHAMP PLUG 64POS IDC Conn IEEE 488 PL 64 POS 2.16mm IDT RA Cable Mount 64 Terminal 1 Port Loose Piece Search Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics ASSY PLUG,64POS,SHLD CHAMP
230238-1
te connectivity / amp
Assembly Tools, Extractor Tool Hand Tools EXTRACTOR CONTACT EXTRACTION TOOL EXTRACTOR Extraction Tool Body Ma
553444-5
te connectivity / amp
Conn IEEE 488 PL 64 POS 2.16mm Press Fit ST Thru-Hole 64 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN PLUG 64POS VERT ACTION PIN Headers & Wire Housings PLUG 64P VERT PCB Conn IEEE 488 PL 64 POS 2.16mm Press Fit ST Thru-Hole 64 Terminal 1 Port Product Highlights:PlugNumber of Positions = 64PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics PLUG ASSY,ACTION PIN,CHAMP-LOK
552082-1
te connectivity / amp

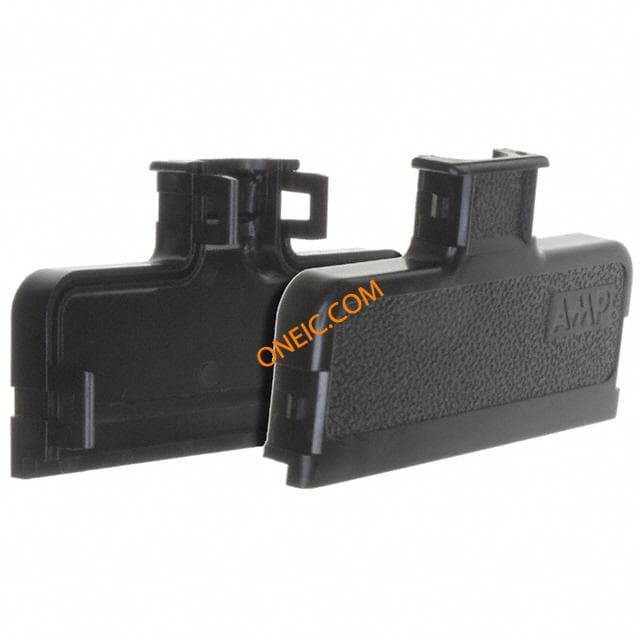

Connector Accessories 64 POS Snap-On Strain Relief Cover Black Bulk 2.16 [.085] Accessories and Hardware 180 DEG COVER KIT 64 POS Headers & Wire Housings STRAIN RELIEF CVR 64 180 Snap-On Connector Accessories 64 POS Snap-On Strain Relief Cover Black Bulk Product Highlights:CoverCover Type = Strain ReliefSnap-On Cover/Strain Relief Retention Method180° Cable Exit AngleNumber of Positions = 64Search Keywords:CHAMP, NIC, Network Interface Cards, PC Cards, ribbon cable, AMPHENOL, Centronics STRAIN RELIEF COVER KIT, POLYPHENYLENE CHAMPIDC180degreeSnap-OnStrainReliefCover;64Position TE Connectivity 黑色 聚苯硫醚 应力释放 外罩, 使用于 CHAMP 系列
