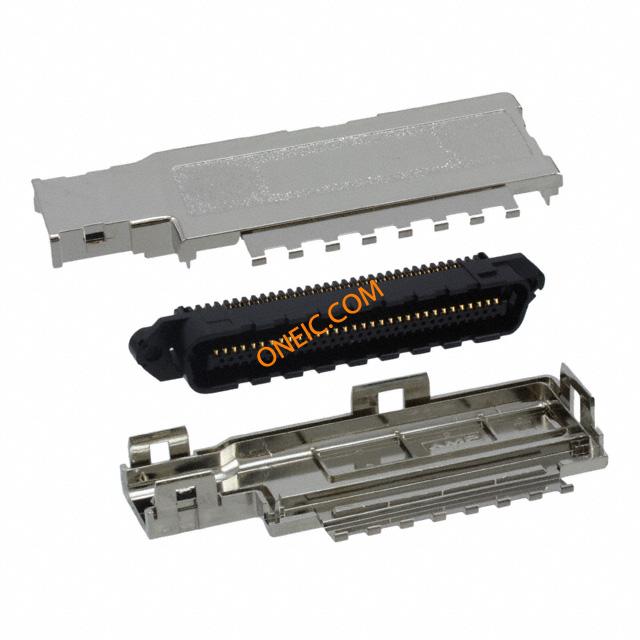

5406049-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 PL 64 POS 2.16mm IDT RA Cable Mount 64 Terminal 1 Port Loose Piece CONN CHAMP PLUG 64POS IDC Conn IEEE 488 PL 64 POS 2.16mm IDT RA Cable Mount 64 Terminal 1 Port Loose Piece Search Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics ASSY PLUG,64POS,SHLD CHAMP |
| 分类 |
商业参数
| 交货时间 | 126 Days | 其他名称 | 54060491 |
| 子类别 | Connector Interface | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 输入端 | .45 – .55 | 连接器阻抗 | 螺纹插针，4-40 UNC, 螺纹插针，4-40 UNC |
机械参数
| 颜色 | 黑色 | 间距 | 2.16 mm |
| 包装方式 | Loose Piece | 屏蔽 | 是 |
| 电缆类型 | 分离式导线, 环状护套电缆 | 导线线规 | .029 – .045 |
| 端接方式 | IDC | 外壳表面处理 | 带有 |
| 第二连接器 | With | 安装类型 | Cable Mount |
| 连接器类型 | Plug | 接触镀层 | Gold |
| 法兰特征 | Insert, Threaded (4-40) | 安装样式 | 标准 |
| 排数 | 2 | 外壳材料（壳体） | ABS 模塑化合物 |
| 连接器样式 | Center Strip Contacts | 插入件材料 | 磷青铜 |
| 屏蔽材料 | 钢 | 壳体材料 | 聚苯醚 |
| 包装数量 | 1 | 面板安装类型 | 不带 |
| 线规 - 端部 | 24 | 位数 | 64 |
| 外壳材料及表面处理 | 蓝色 | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | 26 – 24 | 线规或范围 - mm² | .13 – .32 |
产品信息
| 类型 | IEEE 488 | 连接器性别 | PL |
| 产品特性 | Assembly Kit, Backshell, Shielded | 套件类型 | 连接器套件 |
| 产品子类型 | 连接器 | ||
