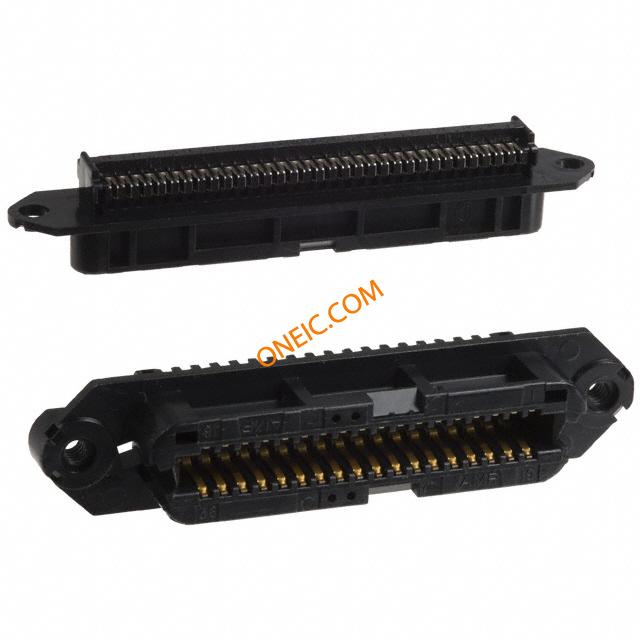

2-552277-1

点击放大查看

2-552277-1

制造商
TE Connectivity Ltd.
描述Conn IEEE 488 RCP 64 POS 2.16mm IDT RA Cable Mount 64 Terminal 1 Port Tray 2.16 [.085] IDC Connectors ASSY, RCPT, 64 POS, B SLOT I/O Connectors RECPT 64P PANEL MT 24-26 AWG Conn IEEE 488 RCP 64 POS 2.16mm IDT RA Cable Mount 64Terminal 1Port Tray Conn IEEE 488 RCP 64 POS 2.16mm IDT RA Cable Mount 64 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 64Product Category = ConnectorsReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics
分类
连接器解决方案圆形连接器工业圆形连接器
对参数有疑问？问 AI 助手

商业参数

交货时间98 Days子类别Connector Interface
产品类别Connectors标准包装数量Trays
工厂包装数量100

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

连接器阻抗螺钉锁, 螺钉锁, 释放锁

机械参数

颜色Black间距2.16 mm
包装方式Tray屏蔽否
厚度Thin壳体颜色黑色
电缆类型7 Strand, Solid铜缆类型B
屏蔽类型No端接方式IDC
第二连接器With外壳颜色Blue
安装类型Cable Mount连接器类型Receptacle
接触镀层Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel法兰特征Hollow, Unthreaded
安装样式Cable排数2
连接器样式RP插入件材料铜合金
锁定特性Bail Lock, Screwlocks外形（宽 x 高）Standard
触头材料Copper Alloy壳体材料Thermoplastic
包装数量Tray面板安装类型With
端接样式IDC线规 - 端部26 – 24
触点数64绝缘直径1.14 [.045] Max.
位数64外壳材料及表面处理蓝色
接触镀层厚度30µin (0.76µm)线规或范围 - AWG26 – 24
线规或范围 - mm²0.20² [24]

产品信息

备注RP Style is not compatible with integral locking latch receptacles类型IEEE 488
连接器性别RCP产品子类型Connector

文档与媒体

在线文档
552312-1?RQPN=552312-1
在线文档
2-552277-1?RQPN=2-552277-1
