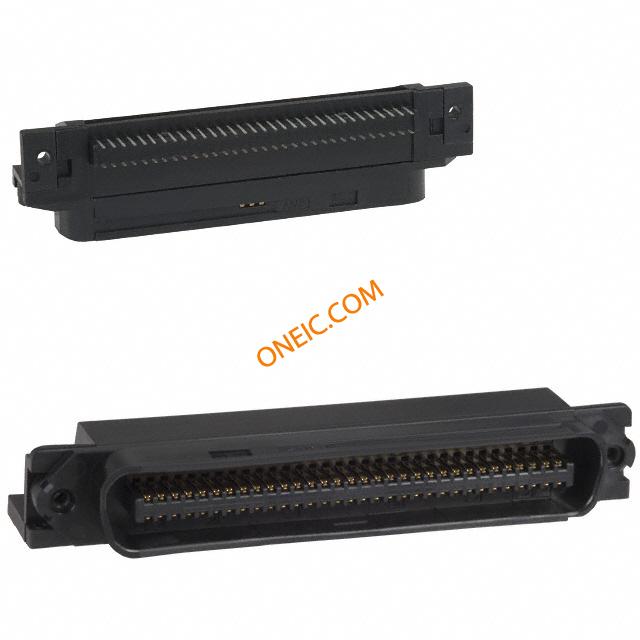

552745-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 PL 64 POS 2.16mm Solder RA Thru-Hole 64 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors ASSY,PLUG,64 POSN,RTANG,PCB 2.16 [.085] Printed Circuit Board Connectors Product Highlights:PlugNumber of Positions = 64PCB Mount Style = Right AngleStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics |
| 分类 |
商业参数
| 交货时间 | 70 Days | 子类别 | Connector Interface |
| 标准包装规格 | 30 | 标准包装数量 | Trays |
合规参数
| RoHS | Lead free / RoHS non-compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | ELV compliant, 5 of 6 Compliant | 材料阻燃等级 | UL 94V-0 |
机械参数
| 颜色 | Black | 间距 | 2.16 mm |
| 方向 | Standard | 屏蔽类型 | No |
| 端接方式 | Solder | 第二连接器 | Without |
| 安装类型 | Through Hole | 连接器类型 | Plug |
| 接触镀层 | Tin-Lead | 法兰特征 | Tapped, Threaded (4-40) |
| 安装样式 | Right Angle | 排数 | 2 |
| 连接器样式 | Center Strip Contacts | 磁芯材质 | Thermoplastic |
| 面板厚度 | 1.57 [0.062] | 外形（宽 x 高） | Standard |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 框架材料 | Thermoplastic | 面板安装类型 | Rear Mount |
| 位数 | 64 | 电缆未暴露长度 | 4.75 [0.187] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | IEEE 488 | 连接器性别 | PL |
| 制造商全称 | AMP | 其他规格 | No |
| 适用产品/相关产品 | 5552745-15552560-1 | ||
