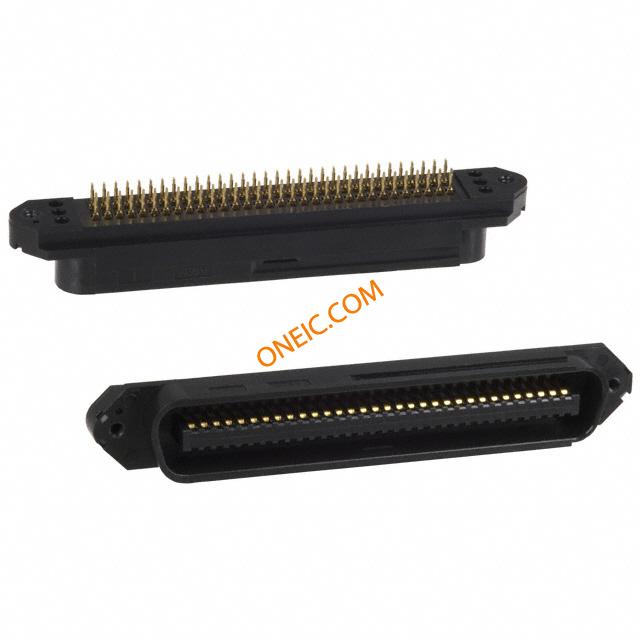

554759-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 PL 64 POS 2.16mm Press Fit ST Thru-Hole 64Terminal 1Port Headers & Wire Housings PLUG 64P EDGE MNT w/ACTION PIN 2.16 [.085] Printed Circuit Board Connectors PLUG ASSY, 64 POSN, ACTION PIN 2.16 [.085] Printed Circuit Board Connectors Product Highlights:PlugNumber of Positions = 64PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics |
| 分类 |
商业参数
| 交货时间 | 73 Days | 子类别 | Connector Interface |
| 标准包装规格 | 20 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 140 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
机械参数
| 颜色 | Natural | 间距 | 2.16 mm |
| 包装方式 | Tray | 屏蔽 | 否 |
| 厚度 | 1.57 â 3.18 [0.062 â 0.125] | 壳体颜色 | 黑色 |
| 方向 | Standard | 屏蔽类型 | No |
| 端接方式 | Press-Fit | 第二连接器 | Without |
| 安装类型 | Through Hole | 连接器类型 | Plug |
| 接触镀层 | Gold over Nickel | 法兰特征 | Insert, Threaded (4-40) |
| 安装样式 | Vertical | 排数 | 2 |
| 连接器样式 | Center Strip Contacts | 插入件材料 | 铜合金 |
| 外形（宽 x 高） | Standard | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 安装特性 | 作用/符合标准的尾 |
| 包装数量 | 20 | 面板安装类型 | Rear Mount |
| 位数 | 64 | 引脚总长度 | 4.58 |
| 安装孔直径 | 3.3 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 备注 | Contains self retained terminals. | 类型 | IEEE 488 |
| 连接器性别 | PL | 方向 | 标准 |
| 预装 | 是 | 产品子类型 | 连接器 |
| 其他规格 | No | 适用产品/相关产品 | 5552741-1 |
环境参数
| 封装热阻 | 1.57 – 3.18 mm [ .062 – .125 in ] | ||
