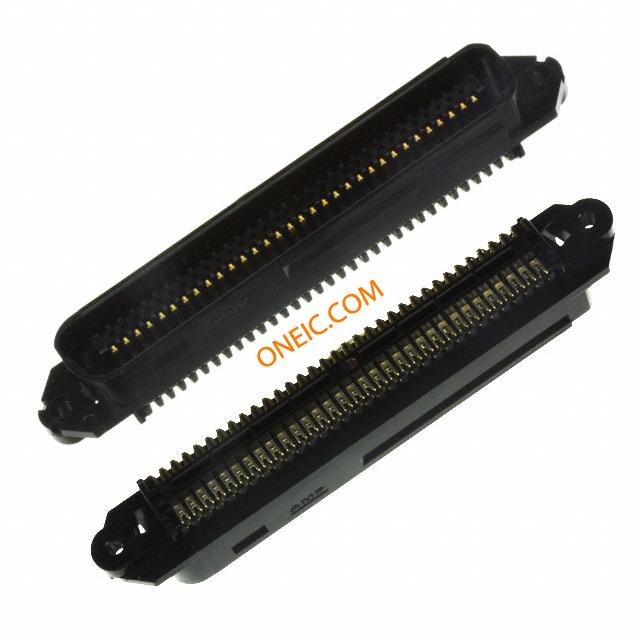

556409-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 M 64 POS IDT RA Cable Mount Tray 2.16 [.085] IDC Connectors CONN CHAMP PLUG 64POS .085 IDC Headers & Wire Housings 64P PLUG ASSY 2.16 [.085] IDC Connectors Product Highlights:ConnectorNumber of Positions = 64Product Category = ConnectorsPlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics PLUG ASSY,64POSN,FSLOT,CHAMPLK |
| 分类 |
商业参数
| 交货时间 | 98 Days | 子类别 | Connector Interface |
| 标准包装规格 | 100 | 产品类别 | Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 连接器阻抗 | 螺钉锁, 螺钉锁 | ||
机械参数
| 间距 | 2.16 mm [ .085 in ] | 包装方式 | Tray |
| 屏蔽 | 否 | 厚度 | Thick |
| 壳体颜色 | 黑色 | 电缆类型 | 7 Strand, Solid |
| 铜缆类型 | F | 屏蔽类型 | No |
| 端接方式 | IDC | 螺纹尺寸 | 4-40 UNC 2B |
| 第二连接器 | With | 外壳颜色 | Brown |
| 安装类型 | Cable Mount | 连接器类型 | Plug |
| 接触镀层 | Gold (30) over Nickel (50) | 法兰特征 | Insert, Threaded (4-40) |
| 安装样式 | 标准 | 排数 | 2 |
| 连接器样式 | PS | 插入件材料 | 磷青铜 |
| 锁定特性 | Screwlocks | 外形（宽 x 高） | Standard |
| 壳体材料 | 聚苯醚 | 包装数量 | Tray |
| 面板安装类型 | Without | 触点数 | 64 |
| 绝缘直径 | 1.14-1.42 [.045-.056] | 位数 | 64 |
| 外壳材料及表面处理 | 褐色 | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | 22 | 线规或范围 - mm² | 0.40² [22] |
产品信息
| 类型 | IEEE 488 | 连接器性别 | M |
| 产品子类型 | Connector | ||
