点击放大查看

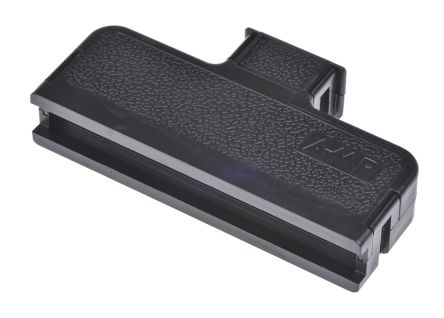

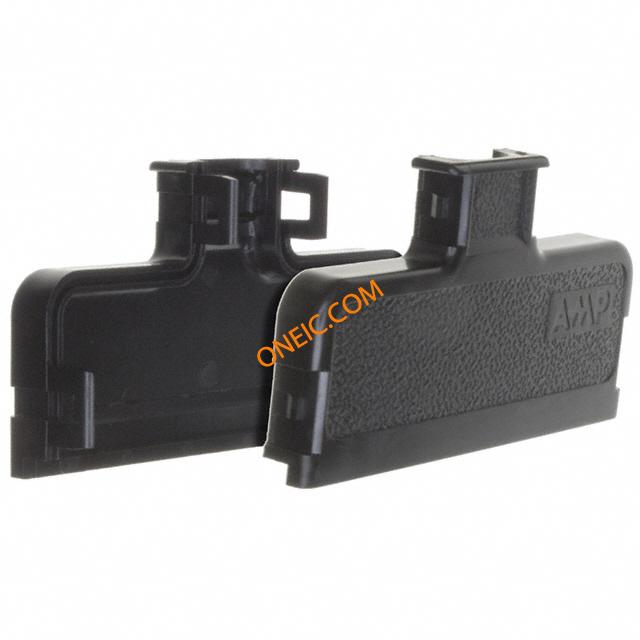

552082-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 64 POS Snap-On Strain Relief Cover Black Bulk 2.16 [.085] Accessories and Hardware 180 DEG COVER KIT 64 POS Headers & Wire Housings STRAIN RELIEF CVR 64 180 Snap-On Connector Accessories 64 POS Snap-On Strain Relief Cover Black Bulk Product Highlights:CoverCover Type = Strain ReliefSnap-On Cover/Strain Relief Retention Method180° Cable Exit AngleNumber of Positions = 64Search Keywords:CHAMP, NIC, Network Interface Cards, PC Cards, ribbon cable, AMPHENOL, Centronics STRAIN RELIEF COVER KIT, POLYPHENYLENE CHAMPIDC180degreeSnap-OnStrainReliefCover;64Position TE Connectivity 黑色 聚苯硫醚 应力释放 外罩, 使用于 CHAMP 系列 |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 重量 | 0.014 |
| 材料（通用） | Polyphenylene | 屏蔽 | Unshielded |
| 出线方向 | 180° | 电缆类型 | Round |
| 本体材料 | :PPV (Polyphenylene) | 壳体材料 | Polyphenylene Sulfide (PPS) |
| 包装数量 | Bulk | 触点数 | 64 |
| 位数 | 64 | 外部壳体材料 | :Plastic |
| 电缆外径（最小） | 12.19 â 13.72 [0.480 â 0.540] | ||
产品信息
| 备注 | Strain relief cover cable diameter range is a guideline. The appropriate strain | 类型 | Strain Relief Cover |
| 系列 | AMP | 硬件配件 | Strain Relief |
| 盖类型 | Strain Relief | 制造商全称 | AMP |
| 产品子类型 | Cover | 附件类型 | Two Piece Backshell |
| 连接方式 | Snap-On | 射频系列/标准 | 552082 |
| 有铅工艺兼容 | :Yes | 适用产品/相关产品 | :64 Position CHAMP IDC Connectors |
