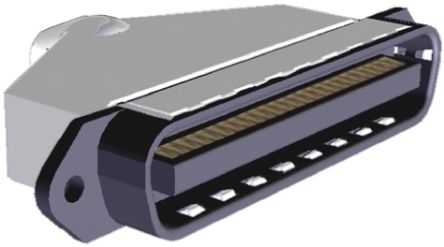

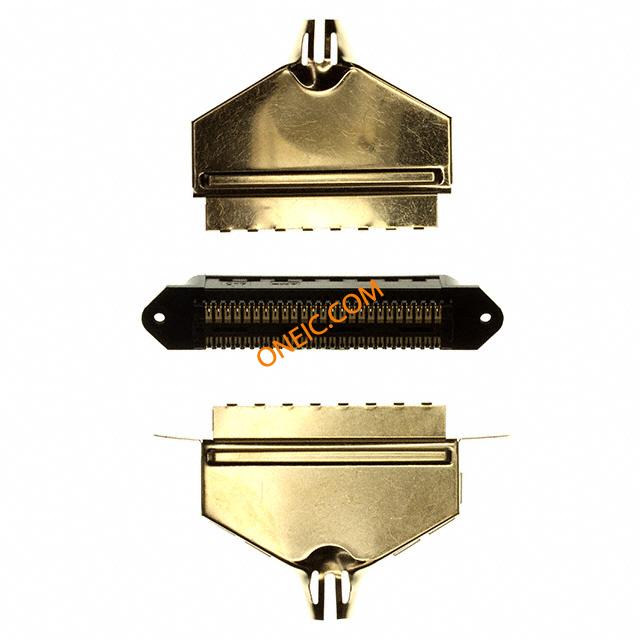

554954-2

点击放大查看

554954-2

制造商
TE Connectivity Ltd.
描述Conn SCSI PL 50 POS IDT ST Cable Mount 50 Terminal 1 Port Individual Kit 2.16 [.085] IDC Connectors PLUG KIT,50 POSN,SCR LK, SHLD TE Connectivity Male 50 Way Straight Cable Mount SCSI Connector, IDT I/O Connectors 50P PLUG KIT Conn SCSI PL 50 POS IDT ST Cable Mount 50 Terminal 1 Port Individual Kit Product Highlights:Connector KitNumber of Positions = 50Standard ProfilePlugShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, PLUG, 50POS, IDC/IDT PlugKit50wayShieldedcoverChamp TE Connectivity CHAMP 系列 50路 公 IDC 连接器 , 电缆安装
分类
连接器解决方案圆形连接器工业圆形连接器
对参数有疑问？问 AI 助手

商业参数

产品Kits交货时间98 Days
子类别Connector SCSI产品类别Connectors
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant

机械参数

颜色Black深度49.53mm
间距2.16 mm宽度11.43mm
长度83.82mm重量0.032
包装方式Individual Kit出线方向180°
电缆类型7 Strand, Solid铜缆类型B
屏蔽类型Yes端接方式IDT
第二连接器With安装类型Cable Mount
外壳镀层Bright Nickel行程角度Straight
连接器类型Plug接触镀层Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel
法兰特征Tapped, Threaded (4-40)安装样式Cable
排数2连接器样式Center Strip Contacts
锁定特性Screwlocks外形（宽 x 高）Standard
屏蔽材料Carbon Steel触头材料Copper Alloy
壳体材料Thermoplastic包装数量Individual Kit
面板安装类型Without端接样式IDC
触点数50接触件端接:IDC / IDT
位数50接触镀层厚度30µin (0.76µm)
线规或范围 - mm²0.20² [24]第一连接器安装类型:Cable
电缆外径（最小）8.89 – 15.88 [0.350 – 0.625]

产品信息

类型SCSI连接器性别PL
系列:Champ产品特性Shielded
产品子类型Connector Kit

环境参数

保护功能Without
