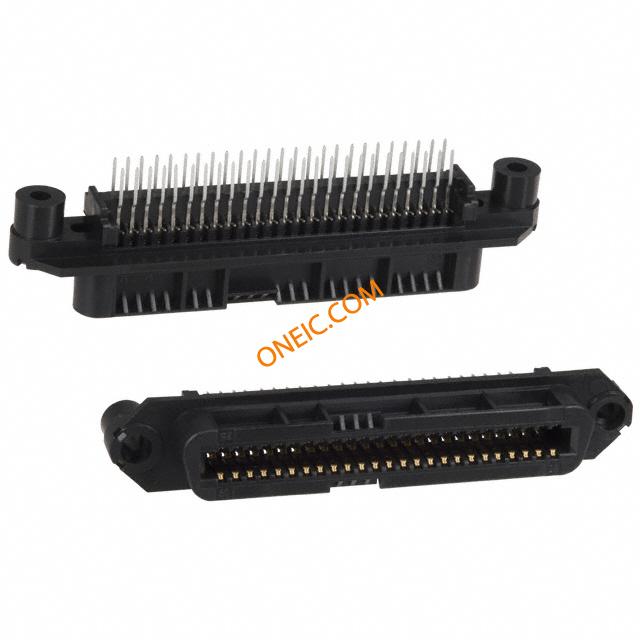

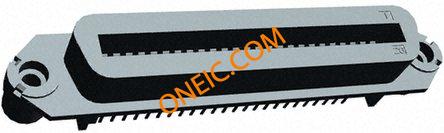

5552118-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN RECEPT CHAMP 50POS VERT Champ,receptacle,vertical,50way I/O Connectors RECPT 50P vertical mount Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics WIRE-BOARD CONNECTOR, RCPT 50POS 2.16MM CONNECTOR,RECEPTACLE,CHAMP-LOK,50POSITION,PCB,VERTICAL TE Connectivity CHAMP 系列 2行 50路 直 2.16mm节距 通孔 母 印刷电路板插座, 线对板 ASSY, RCPT, 50 POS, VERT MTG |
| 分类 |
商业参数
| 交货时间 | 28 Days | 子类别 | Connector Interface |
| 产品类别 | I/O Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 60 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
机械参数
| 颜色 | Black | 深度 | 15.36mm |
| 间距 | 2.16 mm | 宽度 | 18.64mm |
| 高度 | 18.64 mm | 长度 | 83.31mm |
| 重量 | 0.009 | 方向 | Standard |
| 屏蔽类型 | No | 端接方式 | Solder |
| 第二连接器 | With | 基体材料 | Glass-filled Polyester |
| 安装类型 | Through Hole | 连接器类型 | Receptacle |
| 接触镀层 | Tin | 法兰特征 | Board Side |
| 安装样式 | Vertical | 排数 | 2 |
| 电路板厚度 | 1.57 [0.062], 3.18 [0.125], 2.36 [0.093] | 连接器样式 | Outer Shroud Contacts |
| 锁定特性 | Bail Lock, Screwlocks | 磁芯材质 | Thermoplastic |
| 外形（宽 x 高） | Standard | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 83.31 mm |
| 框架材料 | Thermoplastic | 面板安装类型 | Without |
| 主要材料 | InterconnectSystem | 尺寸/外形 | 83.31 x 18.64 x 15.36mm |
| 端接样式 | Solder Pin | 触点数 | 50 |
| 接触件端接 | :Through Hole Vertical | 位数 | 50 |
| 接触镀层厚度 | 30µin (0.76µm) | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | IEEE 488 | 连接器性别 | RCP |
| 系列 | :Champ | 产品特性 | Connectors (CHAMP) |
| 制造商全称 | AMP | 端口数 | 1 Port |
| 其他规格 | No | 适用产品/相关产品 | 552118-1 |
环境参数
| 工作温度 | +105°C | 结工作温度 | 105C |
