点击放大查看

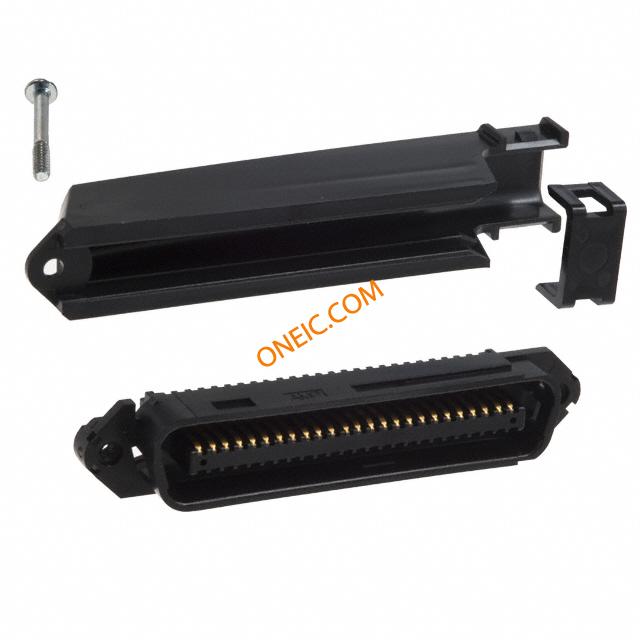

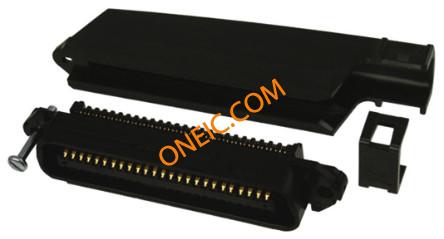

1-5229912-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Individual 2.16 [.085] IDC Connectors KIT, PLUG, 50 POS, B SLOT CHAMP-LOK IDC Plug kit+cover B Slot 50P I/O Connectors PLUG KIT 50 POS B SLOT Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Individual Product Highlights:Connector KitNumber of Positions = 50Product Category = ConnectorsPlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics CHAMPIDCCable-to-CablePlug;50Position;26-24AWG;withDustCover |
| 分类 |
商业参数
| 交货时间 | 28 Days | 子类别 | Connector Interface |
| 产品类别 | Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 连接器阻抗 | 螺钉锁, 螺钉锁 | ||
机械参数
| 颜色 | Black | 间距 | 2.16 mm |
| 包装方式 | Individual | 屏蔽 | 是 |
| 电缆类型 | 7 Strand, Solid | 导线线规 | 24-26AWG(Solid),24AWG(Stranded) |
| 铜缆类型 | B | 屏蔽类型 | No |
| 端接方式 | IDC | 螺纹尺寸 | 4-40 UNC 2B |
| 外壳表面处理 | 带有 | 第二连接器 | Without |
| 外壳颜色 | Blue | 安装类型 | Cable Mount |
| 行程角度 | Straight | 电缆直径 | 0.35-0.425" |
| 连接器类型 | Plug | 接触镀层 | Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel |
| 法兰特征 | Insert, Threaded (4-40) | 安装样式 | Free Hanging |
| 排数 | 2 | 外壳材料（壳体） | 聚乙烯, 聚苯醚 |
| 连接器样式 | Center Strip Contacts | 插入件材料 | 铜合金 |
| 外形（宽 x 高） | Standard | 触头材料 | Copper Alloy |
| 壳体材料 | PPP | 总长度 | 3.28" |
| 包装数量 | Individual Kit | 面板安装类型 | Without |
| 主要材料 | Industrial | 插针孔直径 | 0.085" |
| 端接样式 | Cable | 线规 - 端部 | 26 – 24 |
| 外径 | 10.8 mm [ .425 in ] | 触点数 | 50 |
| 绝缘直径 | 0.045" | 位数 | 50 |
| 外壳材料及表面处理 | 蓝色 | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | 0.20² [24] | 线规或范围 - mm² | 0.51-0.40 [24-26] |
| 线缆外径（最大） | 8.89 – 10.8 mm [ .35 – .425 in ] | 电缆外径（最小） | 8.89 â 10.80 [0.350 â 0.425] |
产品信息
| 类型 | IEEE 488 | 连接器性别 | PL |
| 系列 | CHAMP IDC | 产品特性 | Assembly Kit, Backshell, Cable Clamp, Dust Cover, Mounting Hardware |
| 套件类型 | 连接器套件 | 主要用途 | Assembly Kit, Backshell, Cable Clamp, Dust Cover, Mounting Hardware |
| 制造商全称 | CHAMPIDC | 产品子类型 | Connector Kit |
| 输出配置 | Free Hanging (In-Line), Right Angle | 适用产品/相关产品 | 1-229912-1 |
环境参数
| 保护功能 | With | ||
相关型号
552391-1
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50Terminal 1Port Tray 2.16 [.085] IDC Connectors CONN CHAMP 50 POS RECEPT SCREW I/O Connectors RECPT 50P SCREW LOCK thick flange Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:Connector50 PositionsProduct Category = ConnectorsReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics CHAMPIDCConnector;ScrewLockReceptacle;50Position ASSY, RCPT, 50 POS, E SLOT
2-552001-1
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray 2.16 [.085] IDC Connectors CONN CHAMP 50 POS RECEPT BAIL I/O Connectors RECPT 50P PNL MNT 24-26 AWG Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Product Category = ConnectorsReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, RCPT, 50POS, IDC/IDT 50 Position 2.16 mm Pitch 24-26 AWG Non Shielded Receptacle Connector TE Connectivity CHAMP-LOK 系列 2行 50路 2.16mm节距 母 IDC 连接器 , 电缆安装 ASSY, RCPT, 50 POS, B SLOT
229975-1
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray 2.16 [.085] IDC Connectors CONN CHAMP 50 POS RCPT FLANG Connector,IEE488,receptacle,4-40,50w I/O Connectors RECPT 50P SCREW LOCK thick flange Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Standard ProfileReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, SOCKET 50POS IDC/IDT CHAMPIDCConnector;ScrewLockReceptacle;50Position TE Connectivity CHAMP-LOK 系列 50路 2.16mm节距 直角 母 IDC D-sub 连接器 , 电缆安装 ASSY,RCPT,50POS,B SLOT,BLK HSG
553603-1
te connectivity / amp
Conn SCSI RCP 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Tray 2.16 [.085] IDC Connectors 50 PIN CHAMP LATCH RECEPT-SCREW Conn SCSI RCP 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Product Category = ConnectorsReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, RCPT, 50POS, IDC/IDT CHAMPLATCHCONNECTOR,RCPTASSY,50POSN,SCRLK,LPF 50 Position 1.27 mm Pitch Cable to Board IDC Receptacle Connector TE Connectivity CHAMP Latch 系列 2行 50路 1.27mm节距 母 IDC 连接器 , 面板安装 RCPT ASSY,50 POSN,SCR LK,L PF
552725-2
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50Terminal 1Port 2.16 [.085] Printed Circuit Board Connectors ASSY,RCPT,50 POSN, RTANG, PCB Headers & Wire Housings RECPT 50P STANDARD r.a. mnt thru-bolt 2.16 [.085] Printed Circuit Board Connectors Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = Right AngleStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics
553443-4
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm Press Fit ST Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors ASSY RCPT,50 POSN, ACTION PIN I/O Connectors RECPT 50P EDGE MNT w/ACTION PIN Conn IEEE 488 RCP 50 POS 2.16mm Press Fit ST Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics 50 Position Dual Row Straight Receptacle Press Fit PCB Connector TE Connectivity CHAMP 系列 2行 50路 直 2.16mm节距 电缆安装，面板安装 印刷电路板插座, 连接器 ASSY RCPT,ACTION PIN,CHAMP-LOK
553912-1
te connectivity / amp
Conn IDC Connector F 50 POS 2.16mm IDT RA Cable Mount Bulk 2.16 [.085] IDC Connectors KIT, RCPT, 50 POSN, B SLOT I/O Connectors 50P CHAMP RECEPTACLE Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Bulk Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Bulk Product Highlights:Connector KitNumber of Positions = 50Product Category = ConnectorsReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics
229378-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Hand Tools ASSY MI-1TOOL 14-50P ASSY, MI-1 TOOL,STD 14-50 POSN Assy, MI-1 Tool,Std 14-50 Posn Standard 14-50 Position MI-1 Assembly Tool
553443-6
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors ASSY RCPT,50 POSN, ACTION PIN Headers & Wire Housings ASSY RCPT ACTION PIN CHAMP-LOK Search Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics
555227-1
te connectivity / amp
Conn IDC Connector F 50 POS 2.16mm IDT Cable Mount Tray 2.16 [.085] IDC Connectors RCPT ASSY,50 POSN,F SLOT,C/LOK Conn IEEE 488 RCP 50 POS 2.16mm IDT ST Cable Mount 50 Terminal 1 Port Tray Conn IEEE 488 RCP 50 POS 2.16mm IDT ST Cable Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Standard ProfileReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics
229975-4
te connectivity / amp
Conn IDC Connector F 50 POS IDT RA Cable Mount Tray Barrier Terminal Blocks ASSY RCPT 50 POS B SLOT GRY HSG 2.16 [.085] IDC Connectors ASSY,RCPT,50POS,B SLOT,GRY HSG 2.16 [.085] IDC Connectors Product Highlights:ConnectorNumber of Positions = 50Product Category = ConnectorsReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics
554342-1
te connectivity / amp
EMI RCPT ASSY, 50 POS, B SLOT CONN CHAMP RCPT 50POS .085 IDC Headers & Wire Housings EMI RCPT ASSY 50 POS B SLOT
5229913-1
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Individual 2.16 [.085] IDC Connectors CONNECTOR KITS Champ,rcp kit,B-slot,screw lock,50way I/O Connectors RCPT KIT 50 POS B SLOT Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Individual Product Highlights:Connector KitNumber of Positions = 50Product Category = ConnectorsReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, RCPT, 50POS, IDC/IDT CHAMPIDCCable-to-CableReceptacleKit;50Position;26-24AWG 2.16 [.085] IDC Connectors; Connector Classification: IDC Product Category: Connectors Kit Kit Type: Connector Kit 50 Positions TE Connectivity CHAMP-LOK 系列 50路 2.16mm节距 直角 母 IDC 连接器 , 电缆安装 KIT, RCPT, 50 POS, B SLOT

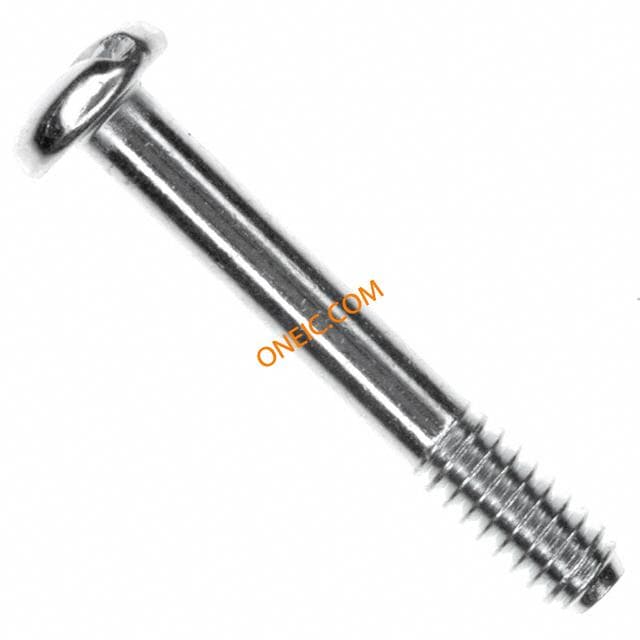

5229911-1
te connectivity / amp
Connector Accessories Captive Pan Head Screw 2.16 [.085] Accessories and Hardware CONN JACKSCREW CAPTIVE #4-40 Screw Captive pan-head 4-40 CHAMP Screws & Fasteners 4-40 MOUNTING SCREW Connector Accessories Captive Pan Head Screw Product Highlights:Captive Pan Head ScrewCable-to-Cable Application, Panel Mount Application, PC Board-to-Cable ApplicationScrew Length = 19.05 mmThread Length = 6.35 mmSearch Keywords:CHAMP, NIC, Network Interface Cards, PC Cards, ribbon cable, AMPHENOL, Centronics CHAMPIDCScrewLockHardwareKit;2RequiredperAssembly TE Connectivity UNC 4-40 槽式 Screw SCREW,PAN HD,''CHAMP PACKAGING
5552118-1
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN RECEPT CHAMP 50POS VERT Champ,receptacle,vertical,50way I/O Connectors RECPT 50P vertical mount Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics WIRE-BOARD CONNECTOR, RCPT 50POS 2.16MM CONNECTOR,RECEPTACLE,CHAMP-LOK,50POSITION,PCB,VERTICAL TE Connectivity CHAMP 系列 2行 50路 直 2.16mm节距 通孔 母 印刷电路板插座, 线对板 ASSY, RCPT, 50 POS, VERT MTG
5552725-2
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN RECEPT CHAMP 50POS RT ANG Headers & Wire Housings RECPT 14P STANDARD right angle mount 2.16 [.085] Printed Circuit Board Connectors Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = Right AngleStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics ASSY,RCPT,50 POSN, RTANG, PCB

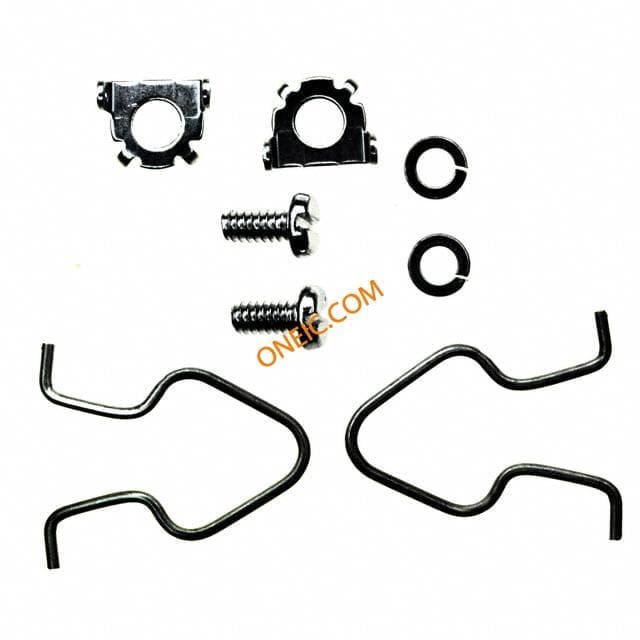

5552561-3
