点击放大查看

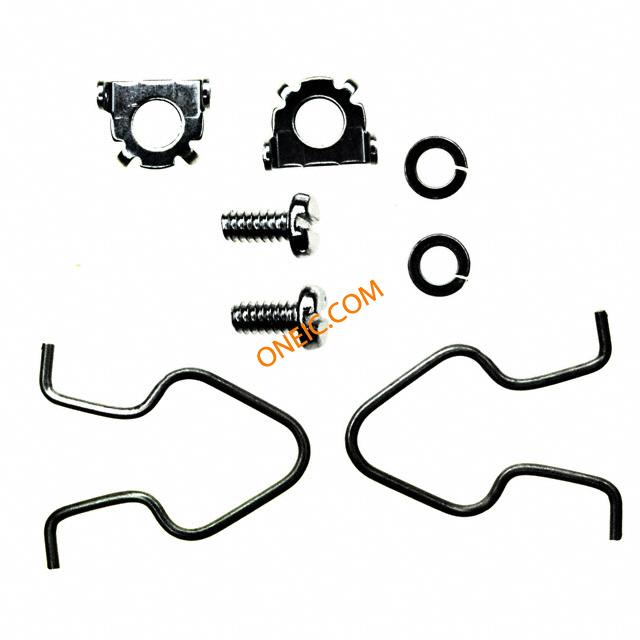

5552561-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Hardware Kit Ball Lock Stainless Steel/Carbon Steel Bag 2.16 [.085] Accessories and Hardware CONN CHAMP BAIL LOCK KIT Hardware Kit, Bail lock CHAMP Headers & Wire Housings 085 IN. BAIL LOCK Connector Accessories Hardware Kit Ball Lock Stainless Steel/Carbon Steel Bag Product Highlights:Hardware KitsHardware Type = Bail LockRight Angle Mount AngleCable-to-Cable Application, PC Board-to-Cable ApplicationSearch Keywords:CHAMP, NIC, Network Interface Cards, PC Cards, ribbon cable, AMPHENOL, Centronics HardwareKit,CHAMPIC,BailLock TE Connectivity 5552561系列 硬件套件, 使用于180 度应力消除盖、ACTION PIN 连接器、CHAMP 闩锁薄型连接器、直角印刷电路板连接器 HDWARE ASSY KIT |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 包装方式 | Bag | 螺纹尺寸 | 4-40 UNC |
| 安装类型 | Right Angle | 接触镀层 | Zinc |
| 触头材料 | Stainless Steel | 包装数量 | Bag |
| 兼容外壳尺寸（如TM-700等） | 180° 消应力护盖。, ACTION PIN 连接器, CHAMP 锁闩低矮型连接器, 直角 PCB 连接器 | ||
产品信息
| 备注 | One kit required per assembly. | 类型 | Hardware Kit |
| 系列 | 5552561 | 产品特性 | 4-40, Hardware Included |
| 工具类型 | Bail Lock | 制造商全称 | AMP |
| 产品子类型 | Hardware Kits | 硬件类型 | Bail Lock |
| 附件类型 | Bail Lock Assembly | 射频系列/标准 | 5552561 |
| 适用产品/相关产品 | CHAMP Latch Low Profile Connectors, ACTION PIN Connector, 180 Degree Strain Rel | ||
