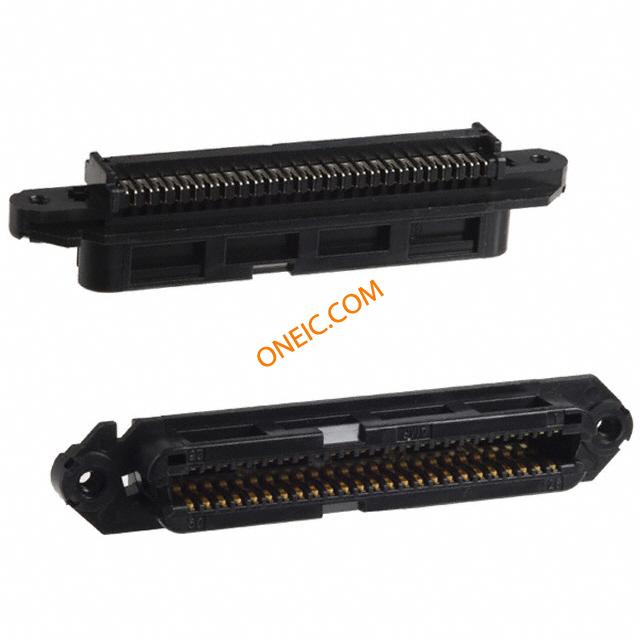

552064-1

点击放大查看

552064-1

制造商
TE Connectivity Ltd.
描述Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50Terminal 1Port Tray 2.16 [.085] IDC Connectors ASSY, RCPT, 50 POS, C SLOT Headers & Wire Housings RECPT 50P 22AWG solid/stranded Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Standard ProfileReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics CHAMPIDCConnector;ScrewLockReceptacle;50Position
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

交货时间98 Days子类别Connector Interface
产品类别Connectors标准包装数量Trays
工厂包装数量100

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

连接器阻抗螺钉锁, 螺钉锁, 释放锁

机械参数

颜色Black深度15.24 mm
间距2.16 mm高度17.39 mm
包装方式Tray屏蔽否
厚度Thick壳体颜色黑色
电缆类型7 Strand, Solid导线线规22
铜缆类型C屏蔽类型No
端接方式IDC螺纹尺寸4-40 UNC 2B
第二连接器With外壳颜色Green
安装类型Cable Mount行程角度Straight
连接器类型Receptacle接触镀层Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel
法兰特征Insert, Threaded (4-40)安装样式Cable
排数2连接器样式RS
插入件材料铜合金锁定特性Bail Lock, Screwlocks
外形（宽 x 高）Standard触头材料Copper Alloy
壳体材料Thermoplastic总长度83.31 mm
包装数量Tray面板安装类型Without
主要材料Industrial插针孔直径0.085"
触点数50绝缘直径1.14 [.045] Max.
位数50外壳材料及表面处理绿色
接触镀层厚度Flash线规或范围 - AWG22
线规或范围 - mm²0.40² [22]

产品信息

类型IEEE 488连接器性别RCP
产品特性BailLock/Screwlock制造商全称CHAMPIDC
产品子类型Connector端口数1 Port
