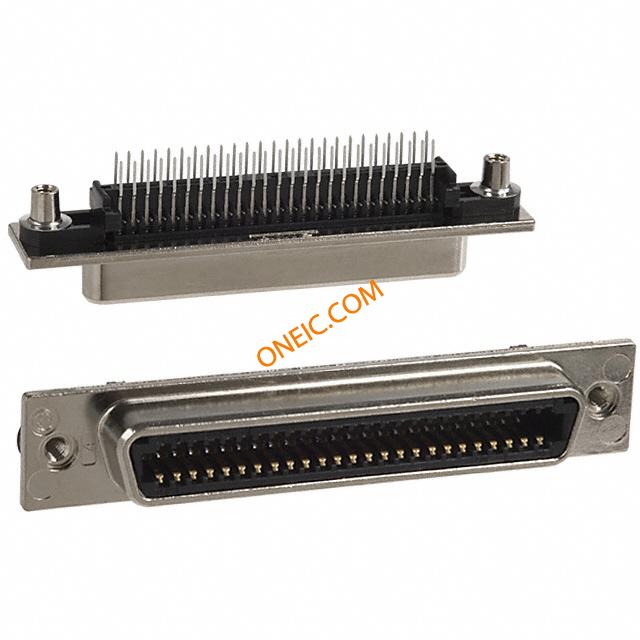

5554217-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Panel Mount 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors RCPT ASSY,50 POS,VERT MTG,SHLD I/O Connectors VERTICAL MOUNT 50P screw lock 4-40 Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Panel Mount 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics TE Connectivity 5554217 系列 50 路 2.16mm节距 直 印刷电路板安装 母 SCSI 连接器, 焊接, 无闩锁 |
| 分类 |
商业参数
| 产品 | Micro Ribbon Connectors | 交货时间 | 28 Days |
| 子类别 | Connector Interface | 产品类别 | I/O Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 60 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Black | 深度 | 22.09 mm |
| 间距 | 2.16 mm | 高度 | 18.28 mm |
| 包装方式 | Tray | 螺钉尺寸 | 4-40 |
| 方向 | Standard | 屏蔽类型 | Yes |
| 端接方式 | Solder | 第二连接器 | With |
| 安装类型 | Panel Mount | 外壳镀层 | Nickel |
| 连接器类型 | Receptacle | 接触镀层 | Tin |
| 法兰特征 | Board Side (4-40) | 安装样式 | Vertical |
| 排数 | 2 | 连接器样式 | Outer Shroud Contacts |
| 锁定特性 | Screwlocks | 外形（宽 x 高） | Standard |
| 屏蔽材料 | Die Cast Metal | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 83.94 mm |
| 面板安装类型 | Rear Mount | 端接样式 | Solder Tail |
| 触点数 | 50 | 位数 | 50 |
| 端子柱长度 | 5.08 [0.200] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 备注 | SCSI applicable with Bail Lock Hardware Kit P/N 554818-2. | 类型 | IEEE 488 |
| 连接器性别 | RCP | 产品特性 | Shielded |
| 制造商全称 | AMP | 端口数 | 1 Port |
| 其他规格 | No | 适用产品/相关产品 | 554217-4 |
环境参数
| 工作温度 | -40C to 105C | 结工作温度 | 105C |
