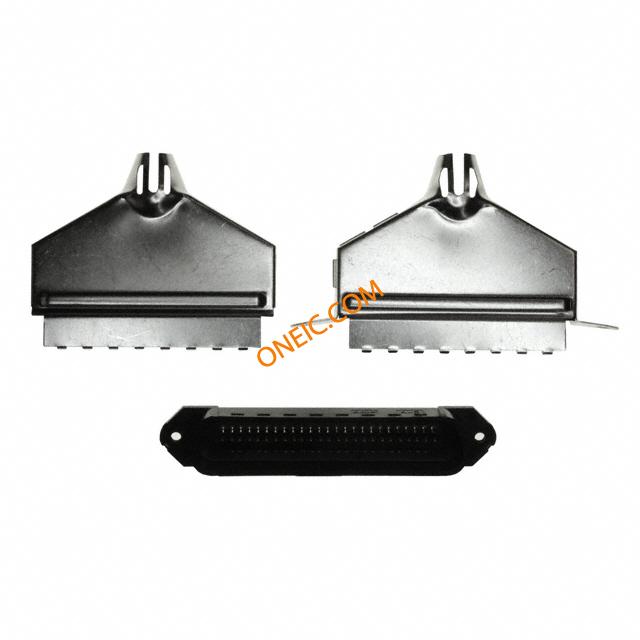

554954-1

制造商	TE Connectivity Ltd.
描述	Conn SCSI PL 50 POS IDT ST Cable Mount 50 Terminal 1 Port Individual Kit 2.16 [.085] IDC Connectors CONN CHAMP 50 POS PLUG SHIELDED Conn SCSI PL 50 POS IDT ST Cable Mount 50 Terminal 1 Port Individual Kit Product Highlights:Connector KitNumber of Positions = 50PlugShieldedWithout Panel AttachmentSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics TE Connectivity CHAMP 系列 50路 2.16mm节距公 IDC 连接器 , 电缆安装 PLUG KIT,50 POSN, SCR LK, SHLD
分类	连接器解决方案圆形连接器工业圆形连接器

对参数有疑问？问 AI 助手

商业参数

交货时间	98 Days	子类别	Connector SCSI
产品类别	Connectors	标准包装数量	Bulk

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85369010
无铅定义	Not relevant for lead free process	RoHS/ELV合规状态	RoHS compliant, ELV compliant

机械参数

颜色	Black	重量	0
包装方式	Individual Kit	出线方向	180Â°
电缆类型	7 Strand	铜缆类型	E
屏蔽类型	Yes	端接方式	IDT
第二连接器	With	安装类型	Cable Mount
外壳镀层	Bright Nickel	连接器类型	Plug
接触镀层	Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel	法兰特征	Tapped, Threaded (4-40)
排数	2	连接器样式	Center Strip Contacts
锁定特性	Screwlocks	外形（宽 x 高）	Standard
屏蔽材料	Carbon Steel	触头材料	Copper Alloy
壳体材料	Thermoplastic	包装数量	Individual Kit
面板安装类型	Without	位数	50
接触镀层厚度	30µin (0.76µm)	线规或范围 - mm²	0.09Â² [28], 0.10Â² [27], 0.14Â² [26]
电缆外径（最小）	8.89 â 15.88 [0.350 â 0.625]

产品信息

类型	SCSI	连接器性别	PL
产品特性	Shielded	产品子类型	Connector Kit

环境参数

保护功能

Without

文档与媒体

在线文档

TE.Connect?C=1&PN=554954-1&M=BYPN&LG=1&I=13
