1116719-3

制造商
TE Connectivity Ltd.
描述Connector Accessories Connector Kit Plug 50 POS Bulk 2.16 [.085] IDC Connectors CONN CHAMP PLUG 50POS .085 SHLD Headers & Wire Housings PLUG KIT 50 POSN B SLOT SCR LK
分类
连接器解决方案圆形连接器工业圆形连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Connectors标准包装数量Bulk
工厂包装数量500

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

机械参数

颜色Black出线方向90°
电缆类型7 Strand, Solid铜缆类型B
屏蔽类型Yes端接方式IDC
第二连接器With安装类型Free Hanging (In-Line), Right Angle
连接器类型Plug接触镀层Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel
法兰特征Insert, Threaded (4-40)排数2
连接器样式Center Strip Contacts锁定特性Screwlocks
外形（宽 x 高）Standard壳体材料Polyphenylene Oxide
包装数量Bulk Kit面板安装类型Without
内径（直径）12.70 [0.500]位数50
接触镀层厚度30µin (0.76µm)线规或范围 - AWG0.51-0.40 [24-26]
线规或范围 - mm²0.20² [24]电缆外径（最小）8.64 [0.340]

产品信息

类型Connector Kit连接器性别Plug
产品特性Assembly Kit, Shielded产品子类型Connector Kit
射频系列/标准1116719-3

环境参数

保护功能With

文档与媒体

在线文档
TE.Connect?C=1&LG=1&I=13&PN=1116719-3&M=BYPN&Search=Search
在线文档
1116719-3?RQPN=1116719-3

相关型号

554436-2

554436-2

te connectivity / amp

Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port 2.16 [.085] IDC Connectors CONN CHAMP 50 POS RECEPT SHIELD Headers & Wire Housings RECPT 50P SCREW LOCK preassembled Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 50Product Category = ConnectorsReceptacleShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics

¥75.1680
详情
1116551-1

1116551-1

te connectivity / amp

Conn Wire to Board F 50 POS ST Thru-Hole 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP RCPT 50POS .085 VERT Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics

¥38.7360
详情
557932-2

557932-2

te connectivity / amp

Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50Terminal 1Port 2.16 [.085] Printed Circuit Board Connectors RCPT ASSY,SHLD, 50 POSN, RTANG Headers & Wire Housings RA 50P STANDARD 4-40 screw lk board lk Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = Right AngleStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics

¥90.7920
详情
557932-1

557932-1

te connectivity / amp

Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50Terminal 1Port 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP RCPT 50POS .085 R/A Headers & Wire Housings RCPT ASSY 50POS SHLD 360

¥71.6400
详情
557984-1

557984-1

te connectivity / amp

Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors RCPT ASSY,50PO,SHLD,A/PIN,CHAM Headers & Wire Housings RECPT 50P EDGE MNT shielded Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics

¥51.4080
详情
5554217-4

5554217-4

te connectivity / amp

Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Panel Mount 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors RCPT ASSY,50 POS,VERT MTG,SHLD I/O Connectors VERTICAL MOUNT 50P screw lock 4-40 Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Panel Mount 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics TE Connectivity 5554217 系列 50 路 2.16mm节距 直 印刷电路板安装 母 SCSI 连接器, 焊接, 无闩锁

¥82.8576
详情
553813-4

553813-4

te connectivity / amp

Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors ASSY,EMI RCPT,50 POSN,SCR LK Headers & Wire Housings RA RECP 50P REVERSE screw lock 4-40 Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Search Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics

¥55.8936
详情
5557932-1

5557932-1

te connectivity / amp

Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP RCPT 50POS .085 R/A I/O Connectors 50P RCPT R//A REV Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = Right AngleReverse OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics RCPT ASSY,50POS,SHLD,RTANG

¥70.6320
详情
5557984-2

5557984-2

te connectivity / amp

Conn Wire to Board F 50 POS ST Thru-Hole 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP RCPT 50POS .085 VERT Headers & Wire Housings REC ASY 50POS SHLDED RCPT ASSY, 50POS, SHLDED, ACTI

¥43.8480
详情
554217-4

554217-4

te connectivity / amp

Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50Terminal 1Port 2.16 [.085] Printed Circuit Board Connectors RCPT ASSY,50 POS,VERT MTG,SHLD Headers & Wire Housings VERTICAL MOUNT 50P screw lock 4-40 Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics

¥87.2640
详情
5553813-4

5553813-4

te connectivity / amp

Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors ASSY,EMI RCPT,50 POSN,SCR LK I/O Connectors RA RECP 50P REVERSE screw lock 4-40 Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = Right AngleReverse OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics TE Connectivity 5553813 系列 50 路 2.16mm节距 直 印刷电路板安装 母 SCSI 连接器, 焊接, 无闩锁

¥41.6880
详情
暂无图片

554573-1

te connectivity / amp

RCPT KIT, SHLD,50 POSN, B SLOT CONN CHAMP RCPT 50POS .085 IDC Headers & Wire Housings RCPT KIT SHLD 50 POSN B SLOT

¥65.0160
详情
暂无图片

5555387-2

te connectivity / amp

RCPT ASSY,SHLD,50POS,R/ANGLE D-Sub Standard Connectors RCPT ASSY SHLD 50P R/ANGLE CONN RCPT 50POS R/A SHIELD

¥54.5040
详情
5557932-2

5557932-2

te connectivity / amp

Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors RCPT ASSY,SHLD, 50 POSN, RTANG I/O Connectors RA 50P STANDARD 4-40 screw lk board lk Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = Right AngleStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics

¥67.4640
详情
5554217-3

5554217-3

te connectivity / amp

Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN RCPT 50POS VERT SHIELD

详情
553813-3

553813-3

te connectivity / amp

Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP 50 POS RECEPT RT/ANG Headers & Wire Housings RA RECP 50P STANDARD screw lock 4-40 Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Search Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics

¥59.4000
详情
5553813-3

5553813-3

te connectivity / amp

Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP 50 POS RECEPT RT/ANG I/O Connectors RA RECP 50P STANDARD screw lock 4-40 Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = Right AngleStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics CONNECTOR,RECEPTACLE,50POSITION,RIGHTANGLE,PCB,SCREWLOCK ASSY,EMI RCPT,50 POSN,SCR LK

¥42.0480
详情
暂无图片

2057095-1

te connectivity / amp

RECEPT. ASS Y, 50 POSN, SHLD, CONN CHAMP RCPT 50POS .085 VERT

¥38.2320
详情

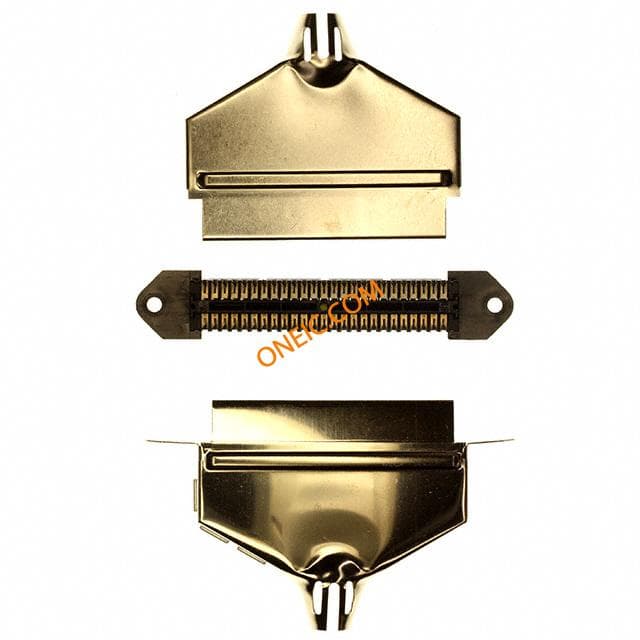

A14358-000
