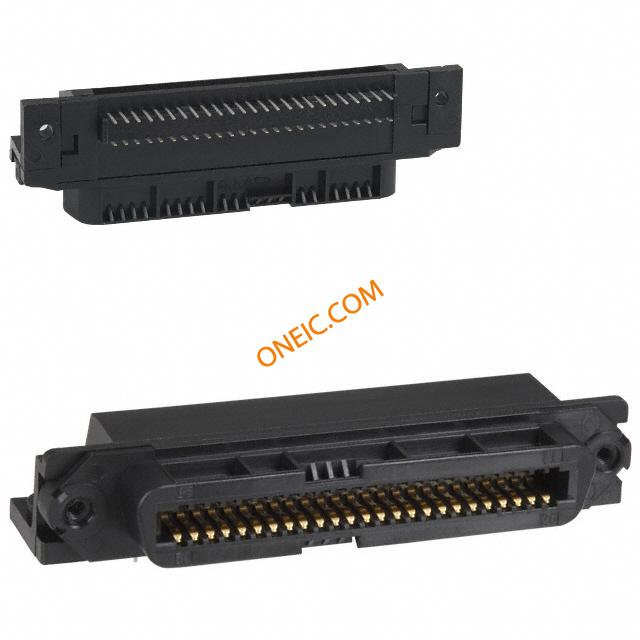

5552725-1

点击放大查看

5552725-1

制造商
TE Connectivity Ltd.
描述Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN RECEPT CHAMP 50POS RT ANG I/O Connectors RECPT 50P STANDARD R.A. mnt selftapping Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = Right AngleStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics CONNECTOR,RECEPTACLE,50POSITION,RIGHTANGE,SELF-TAPPING TE Connectivity CHAMP 系列 50路 直角 2.16mm节距 印刷电路板安装 印刷电路板插座, Champ 连接器 ASSY,RCPT,50 POSN, RTANG, PCB
分类
连接器解决方案圆形连接器工业圆形连接器
对参数有疑问？问 AI 助手

商业参数

交货时间28 Days子类别Connector Interface
产品类别I/O Connectors标准包装数量Trays
工厂包装数量40

合规参数

RoHSLead free / RoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

机械参数

颜色Black深度25.66 mm
间距2.16 mm高度16 mm
包装方式Tray方向Standard
屏蔽类型No端接方式Solder
第二连接器Without安装类型Through Hole
连接器类型Receptacle接触镀层Tin
法兰特征Tapped, Threaded (4-40)安装样式Right Angle
排数2连接器样式Outer Shroud Contacts
插入件材料Zinc Plated Brass磁芯材质Thermoplastic
面板厚度1.57 [0.062]外形（宽 x 高）Standard
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度83.32 mm框架材料Thermoplastic
包装数量360面板安装类型Rear Mount
主要材料InterconnectSystem端接样式Solder Pin
触点数50位数50
接触镀层厚度30µin (0.76µm)

产品信息

类型IEEE 488连接器性别RCP
产品特性Connectors (CHAMP)制造商全称AMP
端口数1 Port其他规格No
适用产品/相关产品552725-1

环境参数

工作温度- 40 C to + 105 C结工作温度105C

文档与媒体

在线文档
TE.Connect?C=1&PN=552725-1&M=BYPN&LG=1&I=13
在线文档
5552725-1?RQPN=5552725-1
