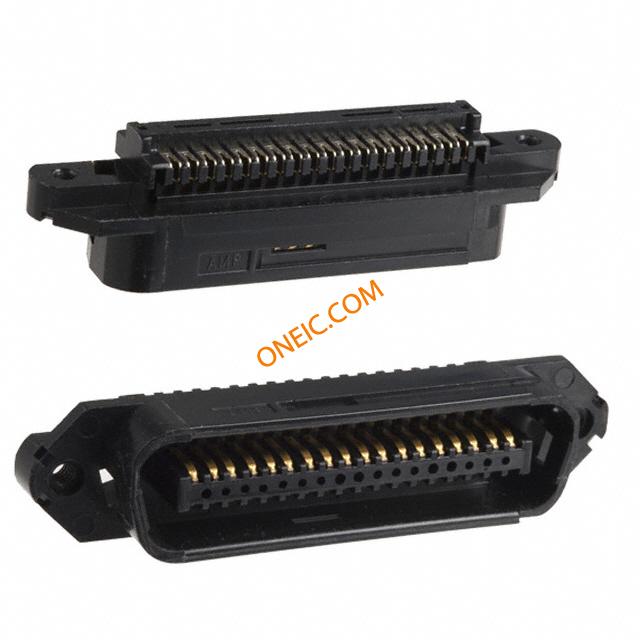

点击放大查看
552284-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 PL 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Tray 2.16 [.085] IDC Connectors ASSY, PLUG, 36 POS, B SLOT I/O Connectors PLUG 36P SCREW LOCK 24-26 AWG Conn IEEE 488 PL 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 36Standard ProfilePlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics CHAMPIDCConnector;Plug,36Position;ScrewLock 36 Position Dual Row Free Hanging Plug IDC Connector |
| 分类 |
商业参数
| 产品 | Micro Ribbon Connectors | 交货时间 | 98 Days |
| 子类别 | Connector Interface | 产品类别 | Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 连接器阻抗 | 螺钉锁, 螺钉锁 | ||
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 2.16 mm | 高度 | 17.52 mm |
| 包装方式 | Tray | 屏蔽 | 否 |
| 厚度 | Thick | 壳体颜色 | 黑色 |
| 电缆类型 | 7 Strand, Solid | 导线线规 | 24-26AWG(Solid),24AWG(Stranded) |
| 铜缆类型 | B | 屏蔽类型 | No |
| 端接方式 | IDC | 螺纹尺寸 | 4-40 UNC 2B |
| 第二连接器 | With | 外壳颜色 | Blue |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug | 接触镀层 | Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel |
| 法兰特征 | Insert, Threaded (4-40) | 安装样式 | Cable |
| 排数 | 2 | 连接器样式 | PS |
| 插入件材料 | 铜合金 | 锁定特性 | Screwlocks |
| 外形（宽 x 高） | Standard | 触头材料 | Copper Alloy |
| 壳体材料 | Polyphenylene | 总长度 | 68.19 mm |
| 包装数量 | Tray | 面板安装类型 | Without |
| 主要材料 | Industrial | 插针孔直径 | 0.085" |
| 端接样式 | Wire | 线规 - 端部 | 26 – 24 |
| 触点数 | 36 | 绝缘直径 | 1.14 [.045] Max. |
| 位数 | 36 | 外壳材料及表面处理 | 蓝色 |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - AWG | 26 – 24 |
| 线规或范围 - mm² | 0.20² [24] | ||
产品信息
| 类型 | IEEE 488 | 连接器性别 | PL |
| 产品特性 | IDC connectors, blue dot designation | 制造商全称 | CHAMPIDC |
| 产品子类型 | Connector | 端口数 | 1 Port |
