点击放大查看

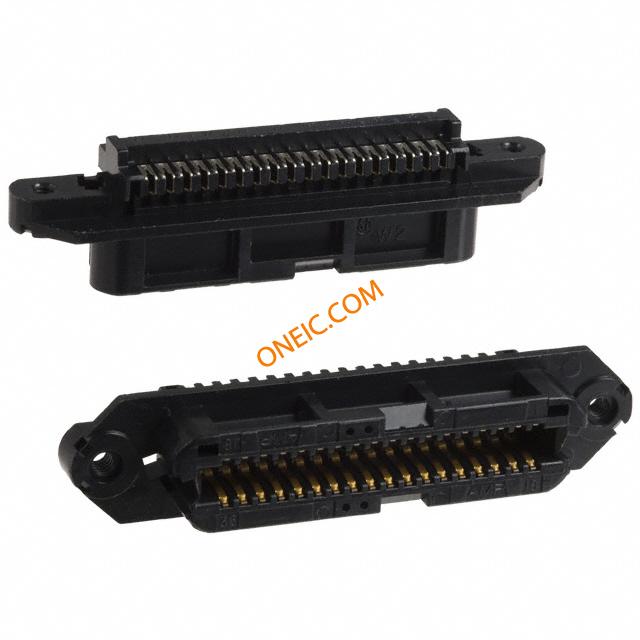

1319948
| 制造商 | TE Connectivity Ltd. |
| 描述 | 36 CONTACTS, RECEPT,CHAMP, PANEL |
| 分类 |
商业参数
| 标准包装数量 | 100 | ||
机械参数
| 端接方式 | IDC | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 法兰特征 | Hollow, Unthreaded | 排数 | 2 |
| 连接器样式 | Outer Shroud Contacts | 位数 | 36 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
