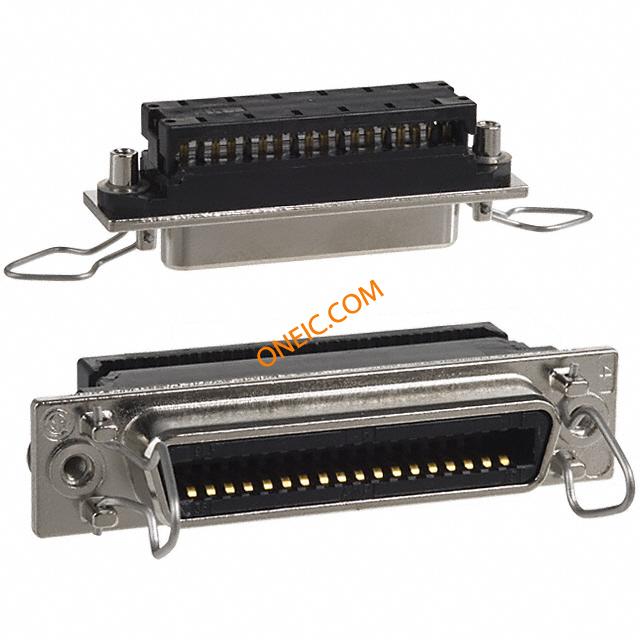

5554346-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SCSI RCP 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port D-Sub Standard Connectors EMI RCPT ASSY 36POS SHLD 2.16 [.085] IDC Connectors CONN CHAMP 36 POS RECEPT BAIL Conn SCSI RCP 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Product Highlights:Connector Classification = IDCProduct Category = ConnectorsConnector36 PositionsReceptacleSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics WIRE-BOARD CONNECTOR, RCPT 36POS 2.16MM EMI RCPT ASSY, 36 POS, SHLD |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 00000000 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 间距 | 2.16 mm |
| 高度 | 16 mm | 重量 | 0.027 |
| 包装方式 | Tray | 电缆类型 | Ribbon Cable |
| 螺钉尺寸 | 4-40 | 屏蔽类型 | Yes |
| 端接方式 | IDT | 第二连接器 | With |
| 安装类型 | Cable Mount | 外壳镀层 | Nickel |
| 连接器类型 | Receptacle | 接触镀层 | Gold Flash over Nickel |
| 法兰特征 | Board Side (4-40) | 安装样式 | Cable |
| 排数 | 2 | 绑带材料 | Thermoplastic |
| 连接器样式 | Outer Shroud Contacts | 锁定特性 | Bail Lock |
| 外形（宽 x 高） | Standard | 屏蔽材料 | Die Cast Metal |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 总长度 | 68.96 mm | 包装数量 | Preassembled |
| 面板安装类型 | With | 触点数 | 36 POS |
| 接触件端接 | :IDC / IDT | 位数 | 36 |
| 排距 - 配合 | 1.27 [0.050] | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Boss is a 1.02 [.040] shoulder on front of shield. | 类型 | SCSI |
| 连接器性别 | RCP | 系列 | :Champ |
| 产品特性 | Bail Lock, Shielded | 制造商全称 | AMP |
| 产品子类型 | Connector | 端口数 | 1 Port |
环境参数
| 工作温度 | -40C to 105C | 结工作温度 | 105C |
