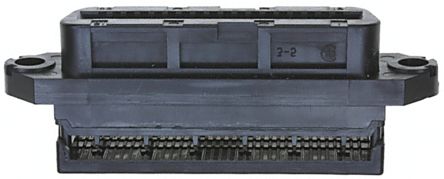

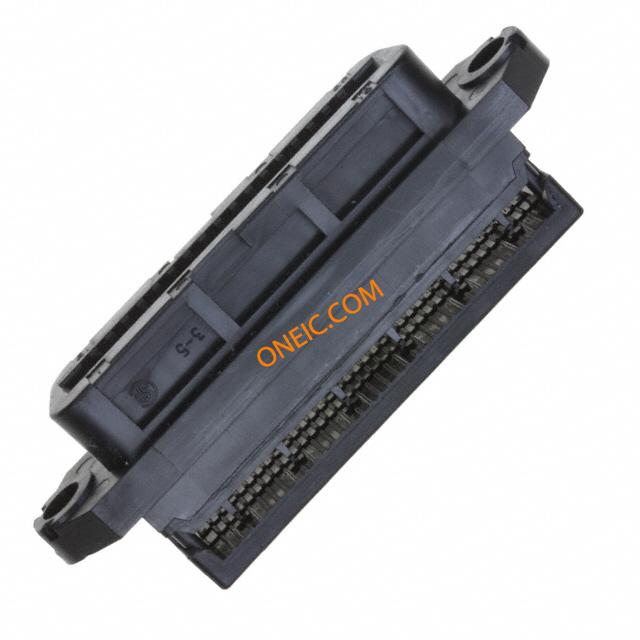

554089-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SCSI RCP 36 POS 1.27mm IDT RA Cable Mount 36 Terminal 1 Port Tray 2.16 [.085] IDC Connectors 36 PIN CHAMP LATCH RECEPT-BAIL I/O Connectors RECPT 36P PANEL MNT low profile plastic Conn SCSI RCP 36 POS 1.27mm IDT RA Cable Mount 36 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 36Low ProfileReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics TE Connectivity CHAMP Latch 系列 2行 36路 1.27mm节距 直角 母 IDC 连接器 , 电缆安装 RCPT ASSY,36 POS,PANEL MTG,LPF |
| 分类 |
商业参数
| 交货时间 | 98 Days | 子类别 | Connector SCSI |
| 产品类别 | Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 连接器阻抗 | 螺钉锁, 螺钉锁, 释放锁 | ||
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 包装方式 | Tray | 屏蔽 | 否 |
| 电缆类型 | Ribbon Cable | 方向 | 直角 |
| 排间距 | 1.27 mm [ .05 in ] | 屏蔽类型 | No |
| 端接方式 | IDT | 第二连接器 | With |
| 安装类型 | Cable Mount | 连接器类型 | Receptacle |
| 接触镀层 | Gold Flash over Palladium Nickel over Nickel, Gold over Nickel | 法兰特征 | Hollow, Unthreaded |
| 安装样式 | 低 | 排数 | 2 |
| 外壳材料（壳体） | 热塑性 | 连接器样式 | Outer Shroud Contacts |
| 插入件材料 | 磷青铜 | 锁定特性 | Bail Lock, Screwlocks |
| 外形（宽 x 高） | Low | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 包装数量 | Tray |
| 面板安装类型 | Without | 端接排数 | 压接 |
| 端接样式 | Cable | 线规 - 端部 | 30 – 26 |
| 触点数 | 36 | 位数 | 36 |
| 排距 - 配合 | 1.27 [0.050] | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | 30 – 26 | 线规或范围 - mm² | .05 – .13 |
产品信息
| 类型 | SCSI | 连接器性别 | RCP |
| 系列 | CHAMP Latch | 产品子类型 | Connector |
