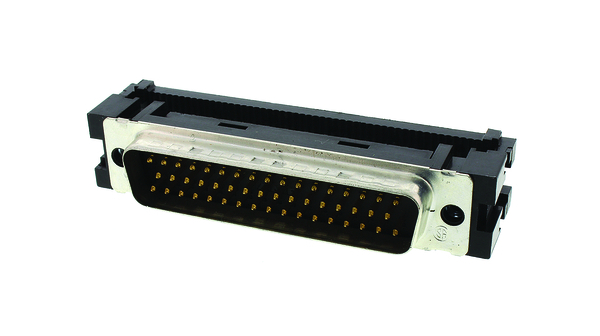

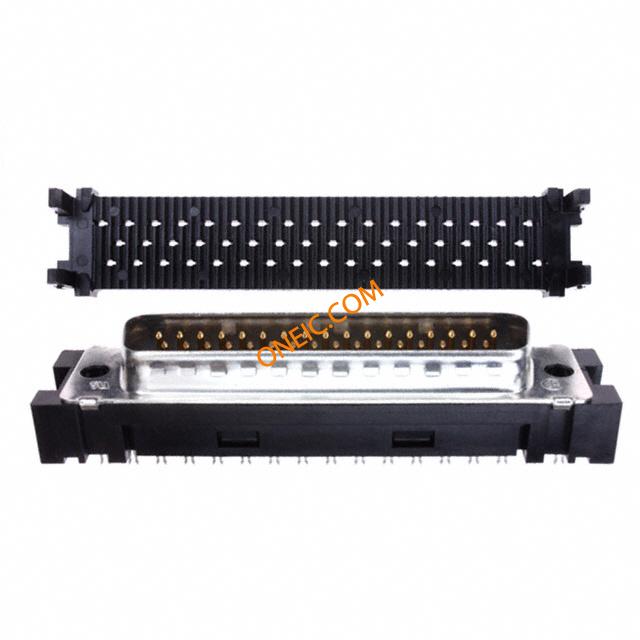

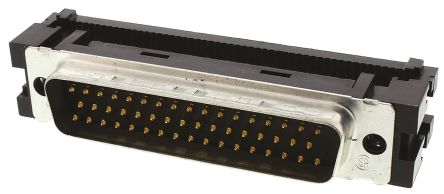

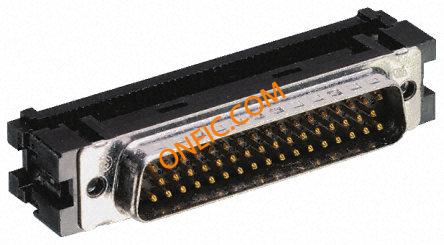

1658607-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 50 POS 2.76mm IDT RA Cable Mount 50 Terminal 1 Port D-Sub Standard Connectors 50 POS PLUG Standard Cable Connectors CONN DSUB PLUG 50POS IDC GOLD AMPLIMITE HDF-20 d-sub IDC plug, 50 pin Conn D-Subminiature PIN 50 POS 2.76mm IDT RA Cable Mount 50 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)Number of Positions = 50PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PLUG, IDC, D, 50WAY Conn;D-Ribbon;CablePlug;50Pos;STR;HDF-20Series;IDC;28-26AWG;FrontMetalShell D-Sub Plug 50P, 1658607-1, TE Connectivity TE Connectivity AMPLIMITE HDF-20 系列 2.76mm 节距 50 路 IDC D-Sub 带状电缆连接器, 插头, 钢外壳 50 POS HDF PLUG, MS, LEAD FREE |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 32 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite HDF-20 Series | 额定电压 | 250 V ac |
| 最大额定电流 | 1.25A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 15.39mm |
| 间距 | 2.76 mm | 宽度 | 22.91mm |
| 高度 | 22.91 mm | 长度 | 74.16mm |
| 重量 | 0.026 | 包装方式 | Tray |
| 电缆类型 | Ribbon Cable | 外壳尺寸 | 5 |
| 端接方式 | IDT | 触点尺寸 | 20 |
| 触头类型 | Signal | 第二连接器 | With |
| 电缆开口 | 746785-1 | 安装类型 | Cable Mount |
| 外壳镀层 | Tin | 连接器类型 | Insulation Displacement Crimp (IDC) |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (4-40) |
| 安装样式 | Wire | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Steel | 锁定特性 | Threaded Insert, 4-40 UNC |
| 本体材料 | :Metal | 材料表面处理 | Zinc |
| 外形（宽 x 高） | Low | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 74.16 mm |
| 尺寸/外形 | 74.16 x 22.91 x 15.39mm | 接地凹痕 | With |
| 端接样式 | Crimp | 连接器颜色 | :Black |
| 触点数 | 50 | 接触件端接 | :IDC / IDT |
| 绝缘直径 | 0.81 â 0.97 [0.032 â 0.038] | 位数 | 50 |
| 外壳尺寸-插件 | Front Metal Shell | 外壳材料及表面处理 | Steel, Tin Plated |
| 螺纹/螺钉/孔尺寸 | Standard | 接触镀层厚度 | Flash |
| 线规或范围 - AWG | 0.08 - 0.15 [28-26] | 第一连接器安装类型 | :Cable |
| 外壳尺寸，连接器布局 | 5 (DD, D) | ||
产品信息
| 备注 | All plug assemblies are supplied with housing and cover preassembled | 类型 | D-Subminiature |
| 等级 | Standard | 连接器性别 | PIN |
| 系列 | HDF-20 | 产品特性 | Feed Through, Grounding Indents |
| 对数 | 746785-1 | 产品子类型 | Connector |
| 端口数 | 1 Port | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
