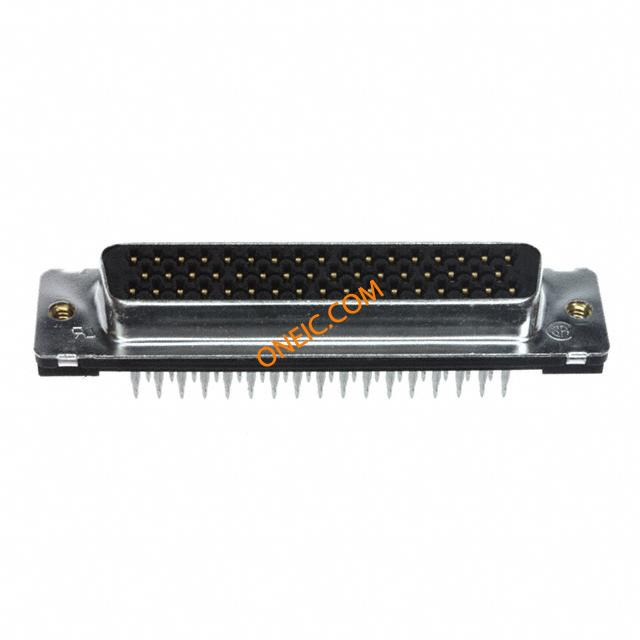

5747144-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 50 POS 2.76mm Press Fit ST Thru-Hole 50 Terminal 1 Port D-Sub Standard Connectors 50P RCPT ACT PIN/MS MED INSERT Standard Board Mount Connectors CONN D-SUB RCPT STR 50POS AU Standard Board Mount Connectors Product Highlights:Number of Positions = 50ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 50POS, RCPT 50 RCPT ACT PIN/MS MED INSRT |
| 分类 |
商业参数
| 标准包装规格 | 7 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 7 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 量程（°/s） | :TE CONNECTIVITY - Amplimite HD-20 Series |
机械参数
| 颜色 | Black | 间距 | 2.76 mm |
| 密封型 | No | 重量 | 1 |
| 包装方式 | Tube | 外壳尺寸 | 5 |
| 端接方式 | Press Fit | 触头类型 | Signal |
| 第二连接器 | With | 安装类型 | Through Hole |
| 外壳镀层 | Tin | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (4-40) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 3 | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.093 [2.36] | 连接器样式 | D-Sub |
| 插入件材料 | Brass | 锁定特性 | Threaded Insert, 4-40 UNC |
| 本体材料 | :Metal | 外形（宽 x 高） | Standard |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 面板安装类型 | Without | 接地凹痕 | Without |
| 端接样式 | Through Hole | 连接器颜色 | None |
| 触点数 | 50 | 接触件端接 | :Through Hole Vertical |
| 位数 | 50 | 外壳尺寸-插件 | Front Metal Shell |
| 安装孔直径 | 3.05 [.120] | 外壳材料及表面处理 | Steel, Tin Plated |
| 端子柱长度 | 5.80 [0.228] | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 5 (DD, D) | ||
