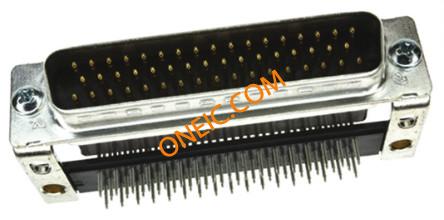

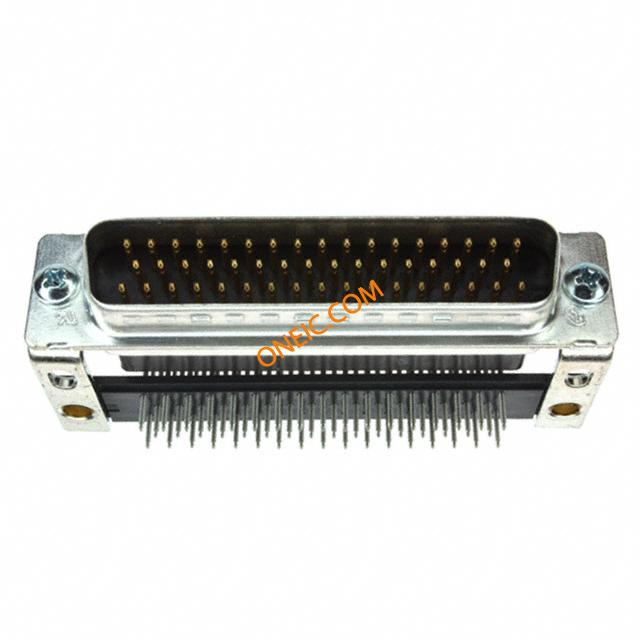

5745355-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 50 POS 2.76mm Solder RA Thru-Hole 50 Terminal 1 Port D-Sub Standard Connectors PLUG FULL MTL SHL 50 standard mntg screws Standard Board Mount Connectors CONN DSUB PLUG 50POS T/H RA GOLD Conn,D-Sub,PCBPlug,50Pos,RTAng,HD-20S Conn D-Subminiature PIN 50 POS 2.76mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:Number of Positions = 50PlugPCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 50POS, PLUG Conn;D-Sub;PCBPlug;50Pos;RTAng;HD-20Series;20AWG;FullMetalShell 50 PLUG RA/MS STD |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 7 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 抗辐射加固 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 量程（°/s） | :TE CONNECTIVITY - Amplimite HD-20 Series |
| 额定电压 | 125V | 最大额定电流 | 6A |
机械参数
| 颜色 | Black | 间距 | 2.76 mm |
| 高度 | 15.36 mm | 密封型 | No |
| 重量 | 0.023 | 包装方式 | Tube |
| 外壳尺寸 | 5 | 端接方式 | Solder |
| 触头类型 | Signal | 第二连接器 | With |
| 触点形状 | Square | 安装类型 | Through Hole |
| 外壳镀层 | Tin | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Mating Side; Standard Screws (4-40) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.093 [2.36] | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 锁定特性 | Mounting Screws |
| 本体材料 | :Metal | 外形（宽 x 高） | High |
| 触头材料 | Brass | 壳体材料 | Polyamide (PA), Nylon, Glass Filled |
| 总长度 | 66.92 mm | 面板安装类型 | Without |
| 尺寸/外形 | 0.64 [.025] | 接地凹痕 | With |
| 外形尺寸 长x宽x高 | 13.84 [.545] | 端接样式 | Solder |
| 连接器颜色 | None | 触点数 | 50 |
| 接触件端接 | :Through Hole Right Angle | 位数 | 50 |
| 外壳尺寸-插件 | Full Metal | 安装孔直径 | 3.05 [.120] |
| 外壳材料及表面处理 | Steel, Tin Plated | 端子柱长度 | 3.18 [0.125] |
| 接触镀层厚度 | Flash | 外壳尺寸，连接器布局 | 5 (DD, D) |
产品信息
| 备注 | Plugs are preloaded with size 20 DF posted pin contacts | 类型 | D-Subminiature |
| 连接器性别 | PIN | 系列 | HD-20 |
| 产品特性 | Grounding Indents, Mounting Brackets | 制造商全称 | AMP |
| 端口数 | 1 Port | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
