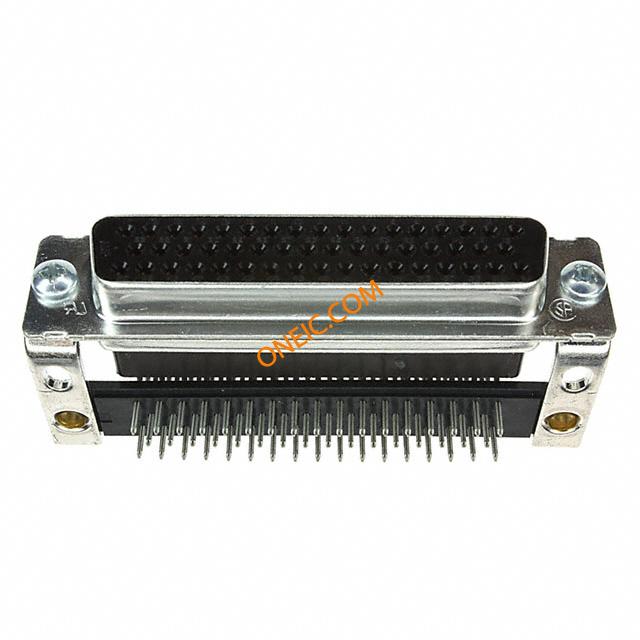

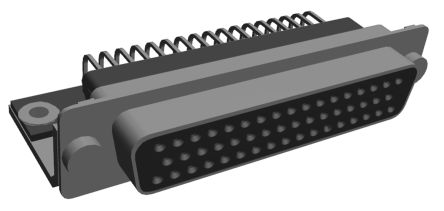

5745116-2

点击放大查看

5745116-2

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 50 POS 2.76mm Solder RA Thru-Hole 50 Terminal 1 Port D-Sub Standard Connectors RECP FULL MTL SHL 50 standard mntg screws Standard Board Mount Connectors CONN DSUB RCPT 50POS T/H RA GOLD Conn D-Subminiature SKT 50 POS 2.76mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:Number of Positions = 50ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBSocket;50Pos;RTAng;HD-20Series;20AWG;FullMetalShell TE Connectivity Amplimite HD-20 系列 2.768mm 节距 50 路 直角 通孔安装 PCB D-sub 连接器 插座 50 RCPT RA/MS STD
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Rail / Tube
工厂包装数量7

合规参数

RoHSRoHS Compliant抗辐射加固No
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
连接器阻抗安装螺钉, 安装螺钉最大额定电流6A
最小供电电压250VDC/250VAC

机械参数

颜色Black深度29.28 mm
间距2.76 mm宽度1.153in
高度15.36 mm长度2.635in
密封型No外形尺寸(长x宽)5
包装方式Tube引脚样式直角
外壳尺寸5方向直角
端接方式Solder触头类型Signal
柱间距.108外壳表面处理锡
第二连接器With触点形状Square
安装类型Through Hole外壳镀层Tin
连接器类型Receptacle, Female Sockets接触镀层Gold
法兰特征Mating Side; Standard Screws (4-40)接地类型Without
安装样式Through Hole排数2
外壳材料（壳体）Steel电路板厚度0.093 [2.36]
连接器样式D-Sub插入件材料Thermoplastic
锁定特性Mounting Screws外形（宽 x 高）High
触头材料Phosphor Bronze壳体材料Polyamide (PA), Nylon, Glass Filled
总长度66.92 mm安装特性安装孔
包装数量7面板安装类型Without
尺寸/外形0.64 [.025]接地凹痕Without
外形尺寸 长x宽x高13.84 [.545]端接样式Solder
连接器颜色None外径.64 mm [ .025 in ]
触点数50位数50
外壳尺寸-插件Full Metal安装孔直径3.05 [.120]
外壳材料及表面处理Steel, Tin Plated端子柱长度3.18 [0.125]
接触镀层厚度Flash触点材料 - 镀层热塑性
外壳与棱镜材料否外壳尺寸，连接器布局5 (DD, D)

产品信息

备注All receptacles are preloaded with size 20 DF posted socket contacts类型D-Subminiature
连接器性别SKT系列HD-20
产品特性Mounting Brackets可密封否
制造商全称AMP预装是
产品子类型连接器端口数1 Port
基础产品编号5745116其他规格安装螺钉

环境参数

工作温度-55°C ~ 105°C封装热阻2.36 mm [ .093 in ]

文档与媒体

在线文档
5745116-2?RQPN=5745116-2
在线文档
TE.Connect?C=1&M=BYPN&TCPN=5745116-2&RQPN=5745116-2
